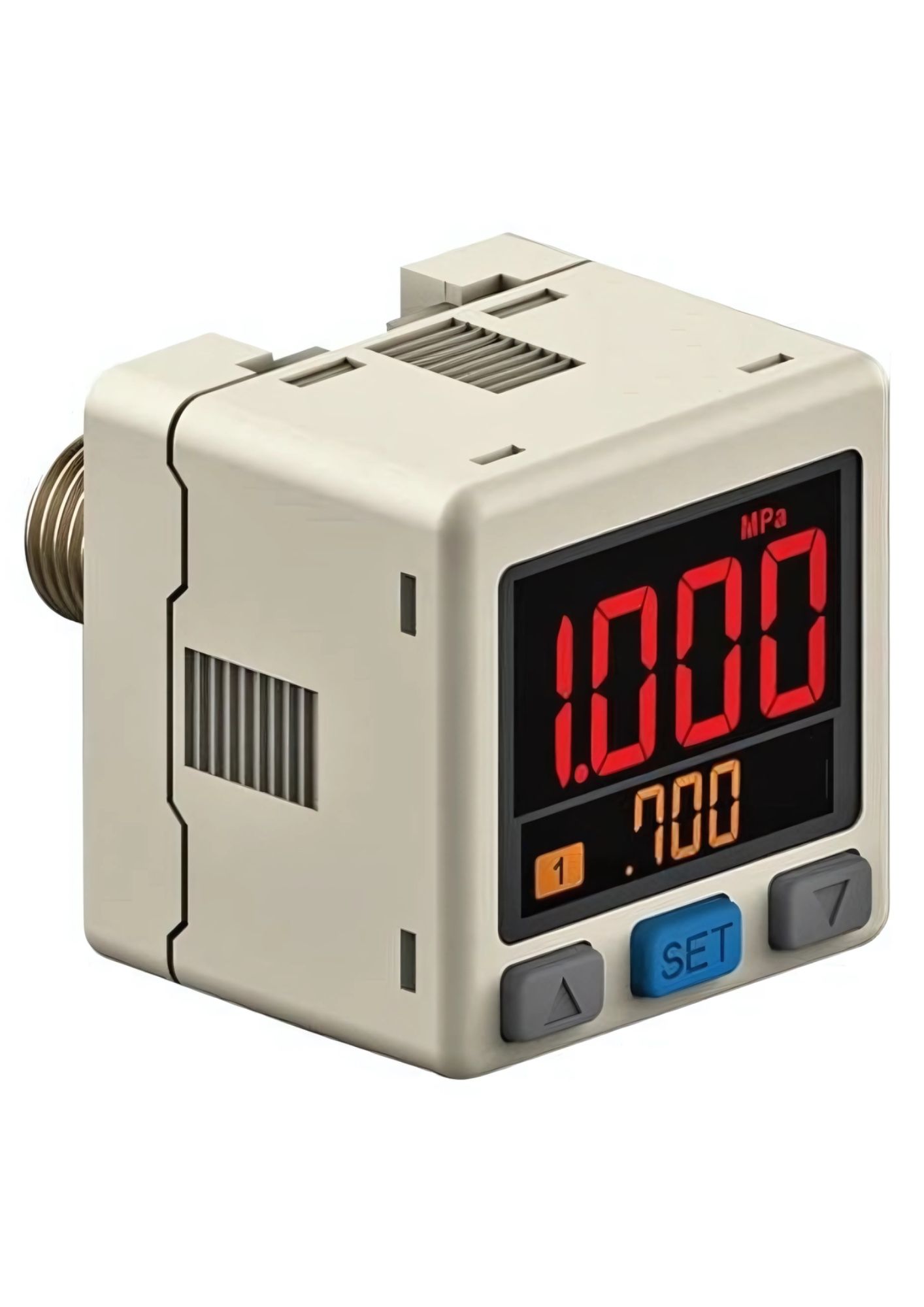

KP47V-04-F1 | 2 PNP Output, Vacuum Pressure
In stock
SKU
KP47V-04-F1
Special Price
₹3,380.00
Regular Price
₹5,200.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Rated Pressure Range: 0.0 ~ -101.3 kPa
- Set Pressure Range: 10.0 ~ -103.0 kPa
- Withstand Pressure: 500 kPa
- Fluid: Filtered air, Non-corrosive / Non-flammable gas
- Power Supply Voltage: 12~24V DC ± 10%, Ripple (P-P) ≤ 10%
- Current Consumption: ≤ 30mA (with no load)
- Response Time: ≤2.5 ms (Chattering-proof function
- Output Short Circuit Protection: Yes
- Display: 4 digital 7 segment LCD display (Red/Green/Orange) (Sampling rate
- Indicator Accuracy: ± 1% F.S ± 1 digit (Ambient temperature
- Switch on Indicator: Orange Indicator 1
- Port size: F1
- Lead wire: Ø4 Oil-resistance Cable (PVC) -26 AWG (0.15 mm2)- 4 cores
- Weight (with 2 meter lead wire): Apporax.67 g
No specifications available for this product.
