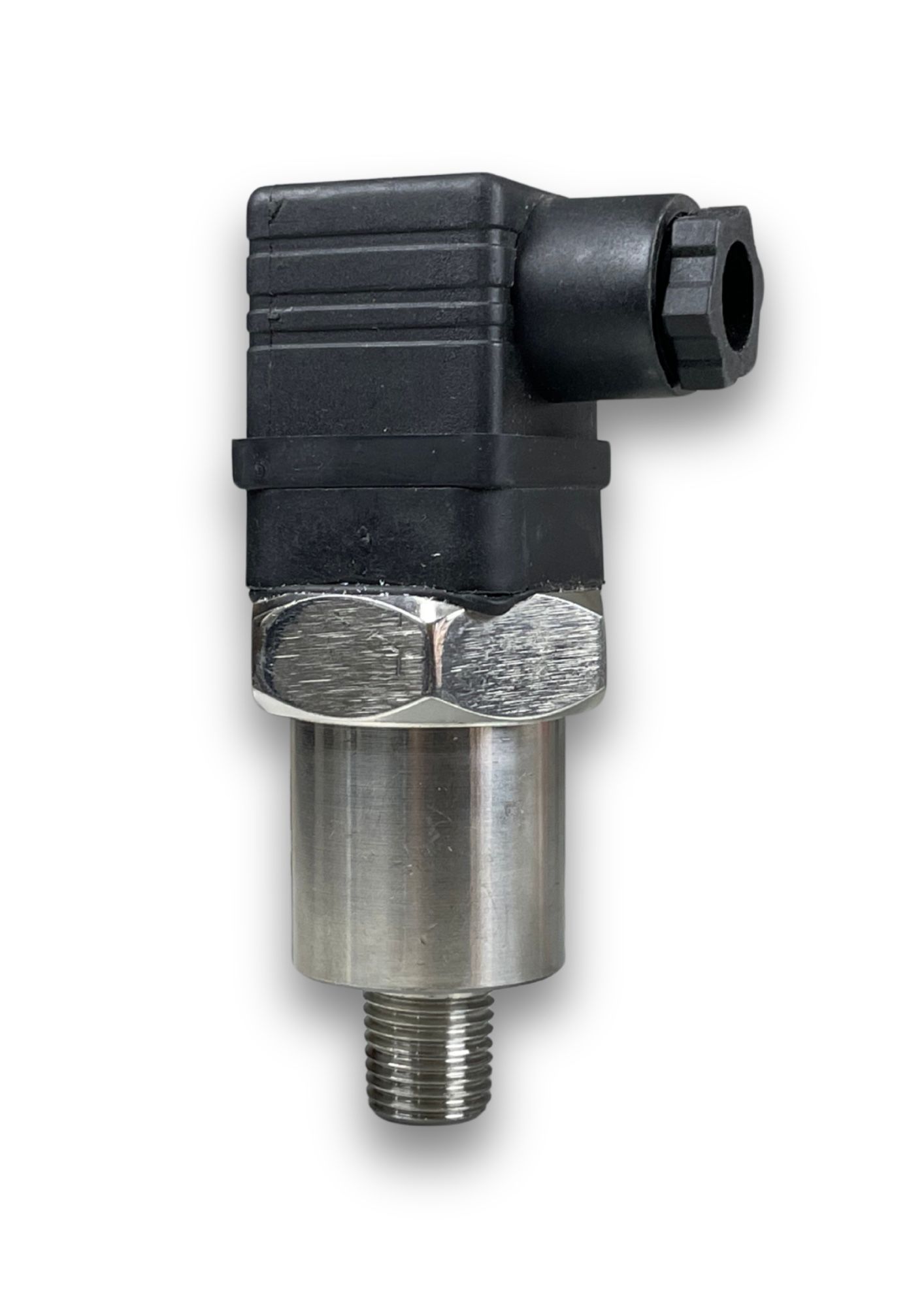

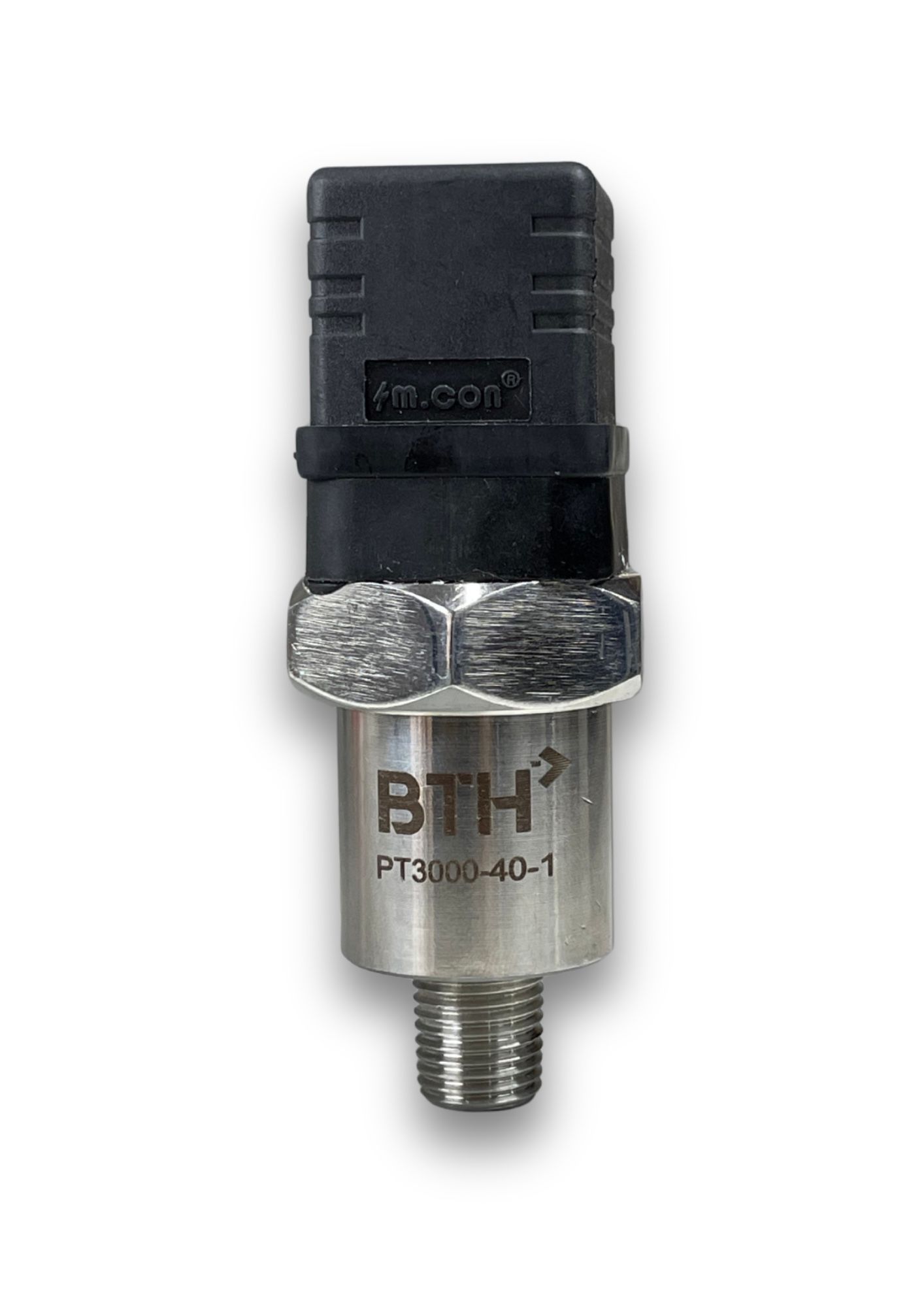

PT 3000-40-1|| Pressure Range 0~40 bar, 4~20mA Output, Hermetically Sealed Modular Pressure Sensor
PT 3000-40-1|| Pressure Range 0~40 bar, 4~20mA Output, Hermetically Sealed Modular Pressure Sensor PT 3000-40-1|| Pressure Range 0~40 bar, 4~20mA Output, Hermetically Sealed Modular Pressure Sensor

PT 3000-40-1|| Pressure Range 0~40 bar, 4~20mA Output, Hermetically Sealed Modular Pressure Sensor

In stock
SKU
PT 3000-40-1
Special Price ₹3,575.00 Regular Price ₹5,500.00
(18% GST Extra)
Add to Wish List
  • Water, hydraulic fluids
  • Compressed air
  • Food, beverage, oil, steam
  • Refrigerants (butane, propane, ammonia, R134A, R407C, R410A, R448A/Solstice® N40, R32 and R1234ze, R1234yf, glycol + water)
  • O2, N2, CO2, N2O, air
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Pressure Range: 0 to 40
  • Proof Pressure: 80
  • Burst Pressure: 120
  • Output Signal: 4~20mA
  • Operating Supply Voltage: 12~30VDC
  • Power Consumption: ≤600mW
  • Load: >4.7kΩ
  • Overvoltage Protection: Max 33V
  • PIN Assignment: Current Output
  • Response Time: ≤ 2 ms max. to 63% of full scale pressure with step change on input
  • Accuracy: ≤ 0.5% of span 0.1% of span
  • Non-linearity *: 0.1% of span
  • Non-repeatability: 0.1% of span
  • 1-year Stability: 0.2% of span
  • Medium Temperature: -30°C to +80°C
  • Environmental Temperature: -30°C to +100°C (depending on electrical connector and external seal ring)
  • Weight: 260g
  • Media: All class II fluids and gases compatible with stainless stell 304 (1.4301)
  • Electrical Connector: 18mm Compatiable With DIN 175301-803A
