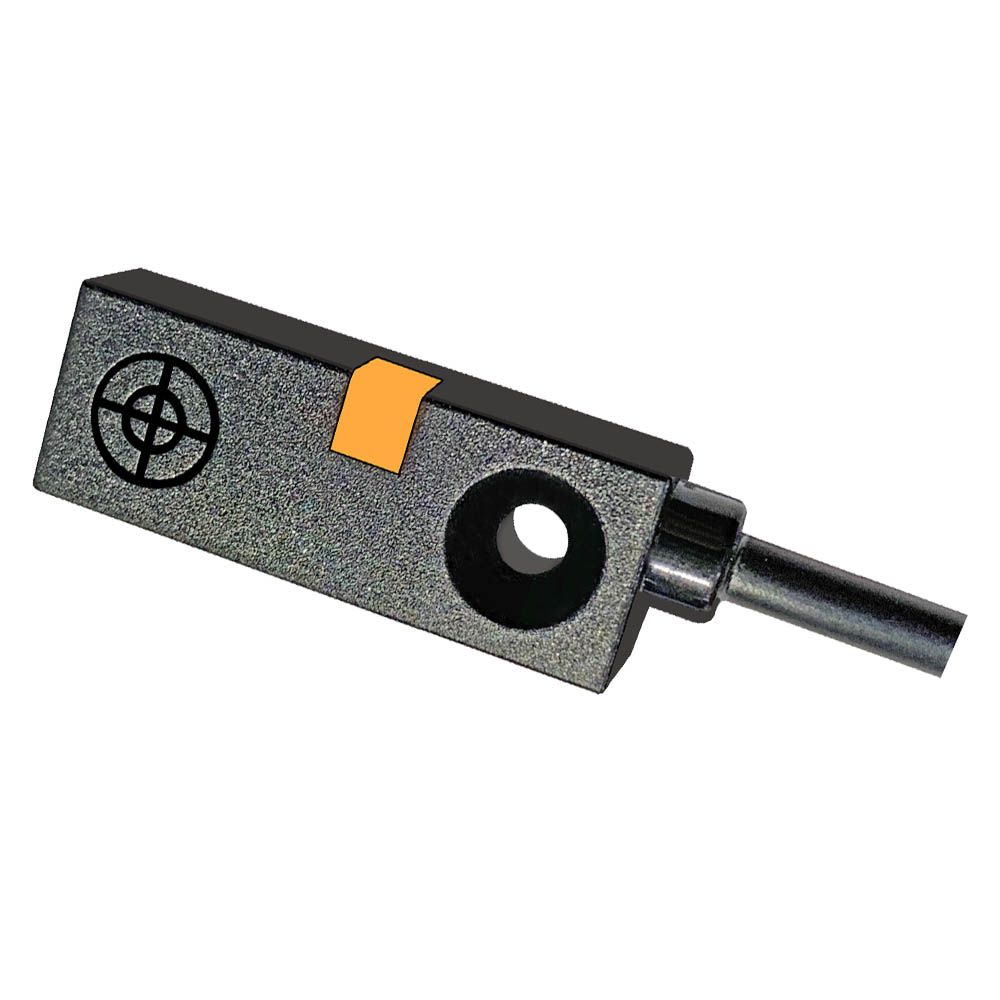

BIF-NC4 ||Rectangular Type Inductive Proximity Sensor, Sensing Range 4mm, NPN NC
In stock
SKU
BIF-NC4
Special Price
₹611.00
Regular Price
₹940.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Function: NPN Make (NC)
- Detecting Distance: 4mm
- Switching Hysteresis: Max. 15% of Sr
- Standard Detecting Target: 10 x 10 x 1mm (Iron)
- Setting Distance: 4mm ± 10%
- Power Supply (Operating Voltage): 10-60VDC
- Current Consumption: <10mA
- Response Frequency: 2 kHz
- Residual Voltage: Max. 1.5V
- Temperature Drift: ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC
- Control Output: 150mA
- Connection Type: Cable 2mtr.
- Housing Type: Mini rectangular 10X6.5mm, length 30mm, Upside Sensing
- Housing Material: PBT
- Vibration & Shock: 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s² (50G) in X, Y,Z direction for 3 times
- Indicator: Operating indicator (RED LED)
- Ambient Temperature: –25 to +70ºC (non–freezing condition)
- Storage Temperature: –30 to +80ºC (non-freezing condition)
- Ambient Humidity: 35 to 95% RH
- Protection Circuit: Surge protection circuit, Overload & short circuit protection
- Protection: IP67
- Weight: Approx. 30g
- Mounting Nut: M3 pan head screw (included)
