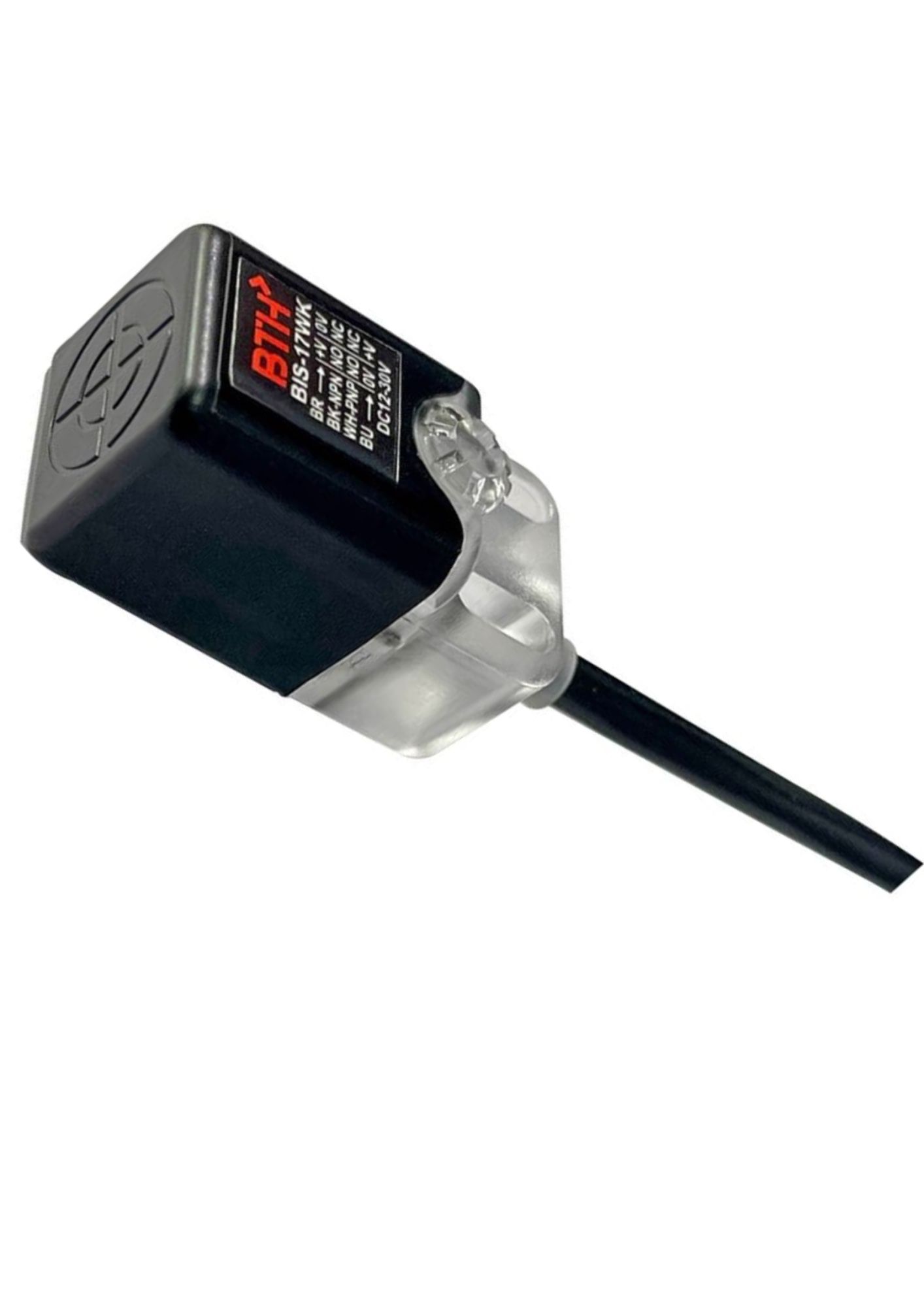

BIS-17WK ||Rectangular Type Inductive Proximity Sensor, Sensing Range 5mm, PNP/NPN/NO/NC
BIS-17WK ||Rectangular Type Inductive Proximity Sensor, Sensing Range 5mm, PNP/NPN/NO/NC

BIS-17WK ||Rectangular Type Inductive Proximity Sensor, Sensing Range 5mm, PNP/NPN/NO/NC

In stock
SKU
BIS-17WK
Special Price ₹676.00 Regular Price ₹1,040.00
(18% GST Extra)
Add to Wish List
  • PNP / NPN / NO / NC output.
  • The IP67 rating ensures effective waterproofing.
  • Built-in twin LED, convenient for checking the operation.
  • Oval hole for easy installation and adjustment.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Method: NPN N.O./ N.C. or PNP N.O./ N.C. Selectable through wire
  • Sensing Distance: 5mm
  • Standard Detecting Target: Iron 18x18x1mm
  • Sensing Surface: Front surface
  • Hysteresis: ≤ 10% of sensing distance
  • Response Time: 2ms Max.
  • Power Supply (Operating Voltage): 10-30VDC
  • Current Consumption: ≤ 8 mA no-load
  • Load Current: 100 mA Max. at DC 30V
  • Leakage Current: ≤ 1.1 mA no-load
  • Residual Voltage: ≤ DC 1.5V
  • Insulation Resistance: 20M Ω min. (DC500V)
  • Voltage Withstandability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -20ºC ~ +60ºC
  • Protection Degree: IP67
  • Wiring: Ø4.2 x 2mtr, 4wires
  • Weight: Approx. 60g
