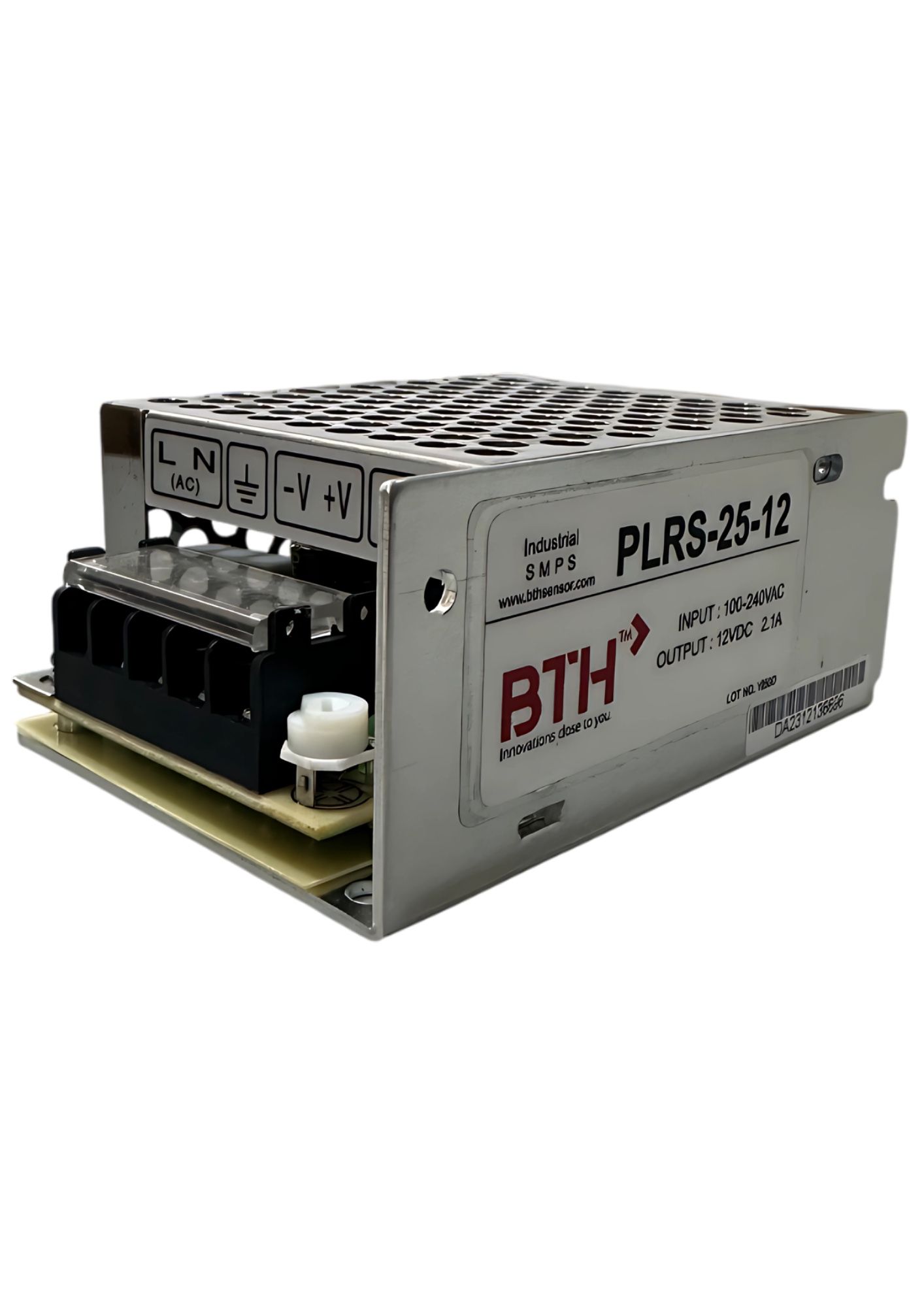

PLRS-25-12 Single||Output, Low Profile Power Supply, 12V/2.1A Output, Panel Mount
PLRS-25-12 Single||Output, Low Profile Power Supply, 12V/2.1A Output, Panel Mount

PLRS-25-12 Single||Output, Low Profile Power Supply, 12V/2.1A Output, Panel Mount

In stock
SKU
PLRS-25-12
Special Price ₹630.00 Regular Price ₹1,000.00
(18% GST Extra)
Add to Wish List
  • AC input 100-240VAC
  • No Load on power consumption <1W
  • High operating temperature up to 70°C
  • High efficiency up to 88%
  • Protection characteristics: short circuit/overload/over voltage/over temperature
  • Cooling by free air convection up to 200W
  • Withstand 5G vibration test
  • 100% full load burn
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Model & Specification PLRS-25-12
DC output Voltage, Current 12V / 2.1A
Wave and Noise 50mVp-p
Inlet wire Stability ± 0.5%
Load Stability ± 1%
Efficiency 65%
Adjustable Range for DC Voltage ± 10%
Input Voltage Range 100~240V AC
Over Load Protection 15A/115VAC 30A/230VAC Cold start current
Impact Current 105%~150% cut off the output, automatic recovery
Setup, Rise, Hold up Time 200ms, 100ms, 30ms/230VAC at full load
Withstand Voltage I/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG 0.5kV 1minute
Isolation Resistance I/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ
Working Temperature – 10°C ~ +50°C

No specifications available for this product.
