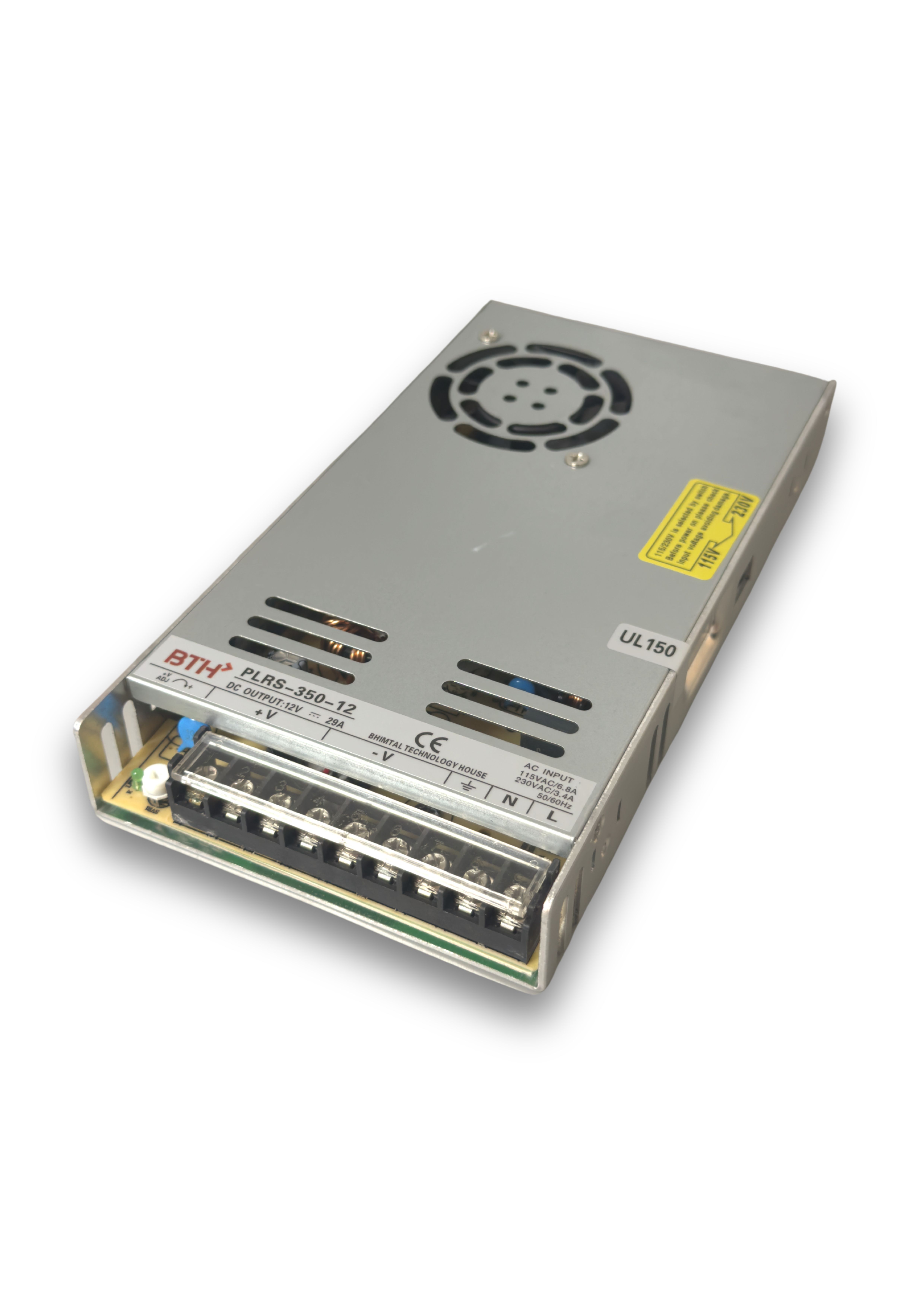

PLRS-350-12||Single Output, Low Profile Power Supply, 12V/29A Output, Panel Mount

Be the first to review this product

In stock

SKU

PLRS-350-12

Special Price ₹2,252.25 Regular Price ₹3,575.00

(18% GST Extra)

Qty

Add to Wish List

AC input 88~264VAC up to 100W
AC input 110/220VAC selectable by switch for 150W and above
No Load on power consumption <1W
High operating temperature up to 70°C
High efficiency up to 88%
Protection characteristics: short circuit/overload/over voltage/over temperature
Cooling by free air convection up to 200W
Withstand 5G vibration test
100% full load burn

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

DC output Volt, Current, Power: 12V, 29Amp., 350W
Efficiency: 85%
Dimension: 215*115*30mm
Input Voltage: 110/220VAC ±20%
Input Current: 6.8A/115VAC / 3.4A/230VAC
Voltage Adj. Range: 10.2 ~ 13.8V
Cooling: Fan
Ripple and Noise 1: 150mVp-p
Inrush Current (typ.): 60A/115/230VAC
Over Load protection 2: 110%~140% rated output power
Setup, Rise, Time at full load: 1300ms, 50ms/230VAC / 1300ms, . 50ms/115VAC
Load Regulation 3: ± 1%
Withstand Voltage: I/P–O/P
Isolation Resistance: I/P–O/P I/P–FG O/P–FG
Working Temp., Humidity: – 30°C ~ +50°C / 20~90% RH non-condensing
