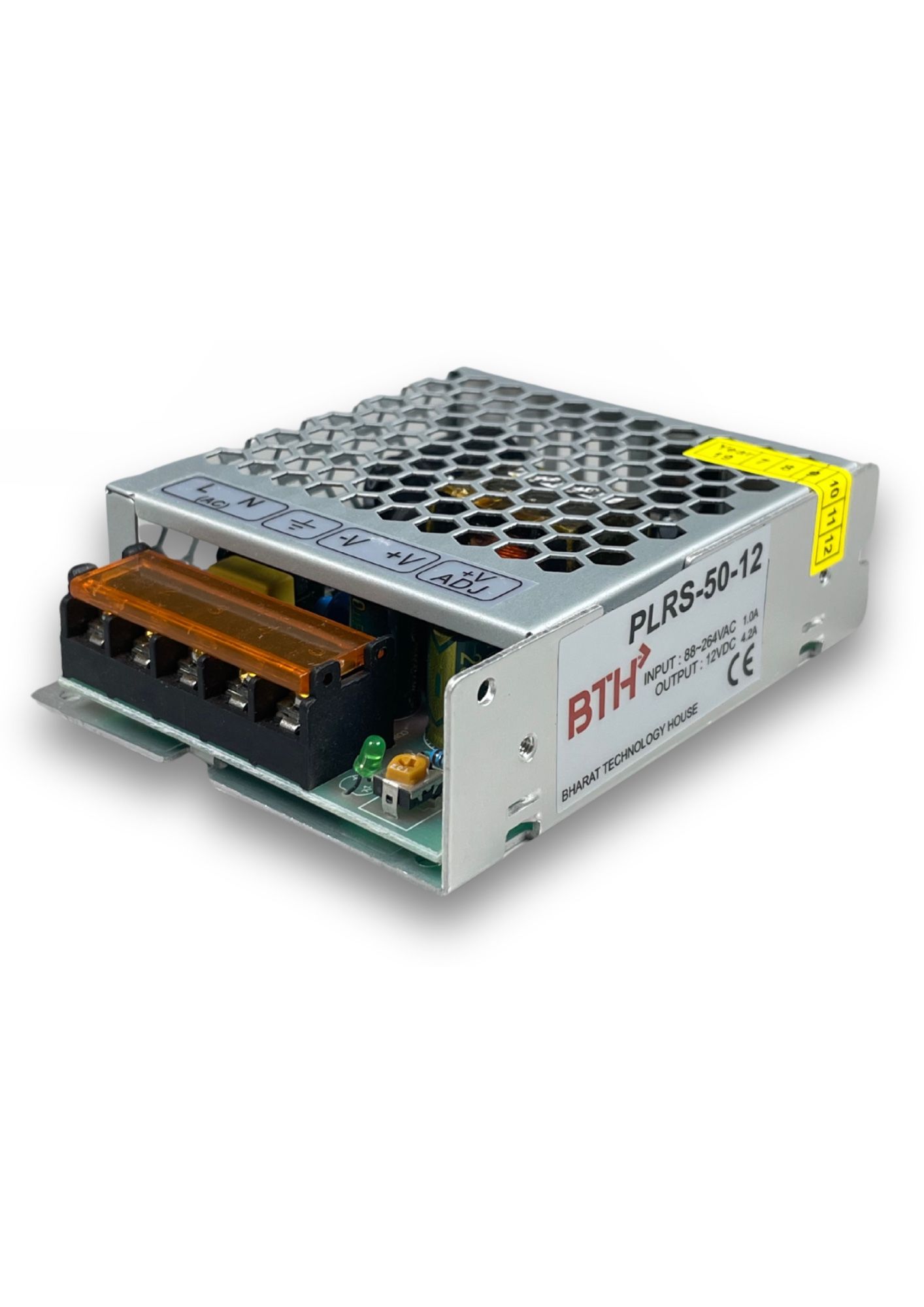

PLRS-50-12 Single||Output, Low Profile Power Supply, 12V/4.2A Output, Panel Mount

Be the first to review this product

In stock

SKU

PLRS-50-12

Special Price ₹743.40 Regular Price ₹1,180.00

(18% GST Extra)

Qty

Add to Wish List

AC input 88~264VAC up to 100W
No Load on power consumption <1W
High operating temperature up to 70°C
High efficiency up to 88%
Protection characteristics: short circuit/overload/over voltage/over temperature
Cooling by free air convection up to 200W
Withstand 5G vibration test
100% full load burn

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

DC output Volt, Current, Power: 12V, 4.2Amp., 50W
Efficiency: 86%
Dimension: 104*82*30mm
Input Voltage: 88~264VAC
Input Current: 0.95A/115VAC/0.56A/230VAC
Voltage Adj. Range: 10.2 ~ 13.8V
Cooling: By free air convection cooling
Ripple and Noise 1: 120mVp-p
Inrush Current (typ.): 45A/230VAC
Over Load protection 2: 110%~150% rated output power
Setup, Rise, Time at full load: 1000ms, 30ms/230VAC/2000ms, . 30ms/115VAC
Load Regulation 3: ± 0.5%
Withstand Voltage: I/P–O/P
Isolation Resistance: I/P–O/P I/P–FG O/P–FG
Working Temp., Humidity: – 30°C ~ +50°C / 20~90% RH non-condensing
