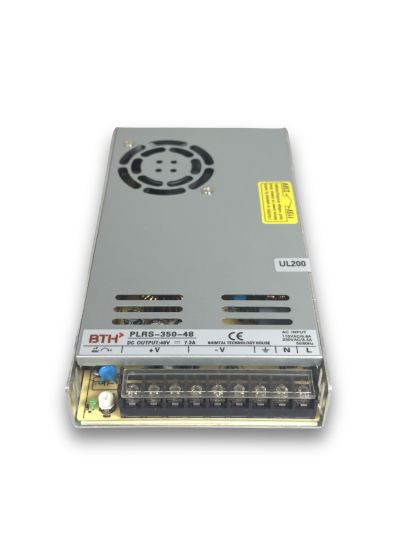

PLRS-350-48||Single Output, Low Profile Power Supply, 48V/7.3A Output, Panel Mount

Be the first to review this product

In stock

SKU

PLRS-350-48

Special Price ₹2,472.75 Regular Price ₹3,925.00

(18% GST Extra)

Qty

Add to Wish List

AC input 88~264VAC up to 100W
AC input 110/220VAC selectable by switch for 150W and above
No Load on power consumption <1W
High operating temperature up to 70°C
High efficiency up to 90%
Protection characteristics: short circuit/overload/over voltage/over temperature
Cooling by free air convection up to 200W
Withstand 5G vibration test
100% full load burn

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

DC output Volt, Current, Power: 48V, 7.3Amp., 350W
Efficiency: 89%
Dimension: 215*115*30mm
Input Voltage: 110/220VAC ±20%
Input Current: 6.8A/115VAC 3.4A/230VAC
Voltage Adj. Range: 21.6 ~ 28.8V
Cooling: Fan
Ripple and Noise : 200mVp-p
Inrush Current (typ.): 60A/115/230VAC
Over Load protection: 110%~140% rated output power
Setup, Rise, Time at full load: 1300ms, 50ms/230VAC 1300ms, 50ms/115VAC
Load Regulation: ± 0.5%
Withstand Voltage: I/P–O/P
Isolation Resistance: I/P–O/P I/P–FG O/P–FG
Working Temp., Humidity: – 30°C ~ +50°C / 20~90% RH non-condensing
