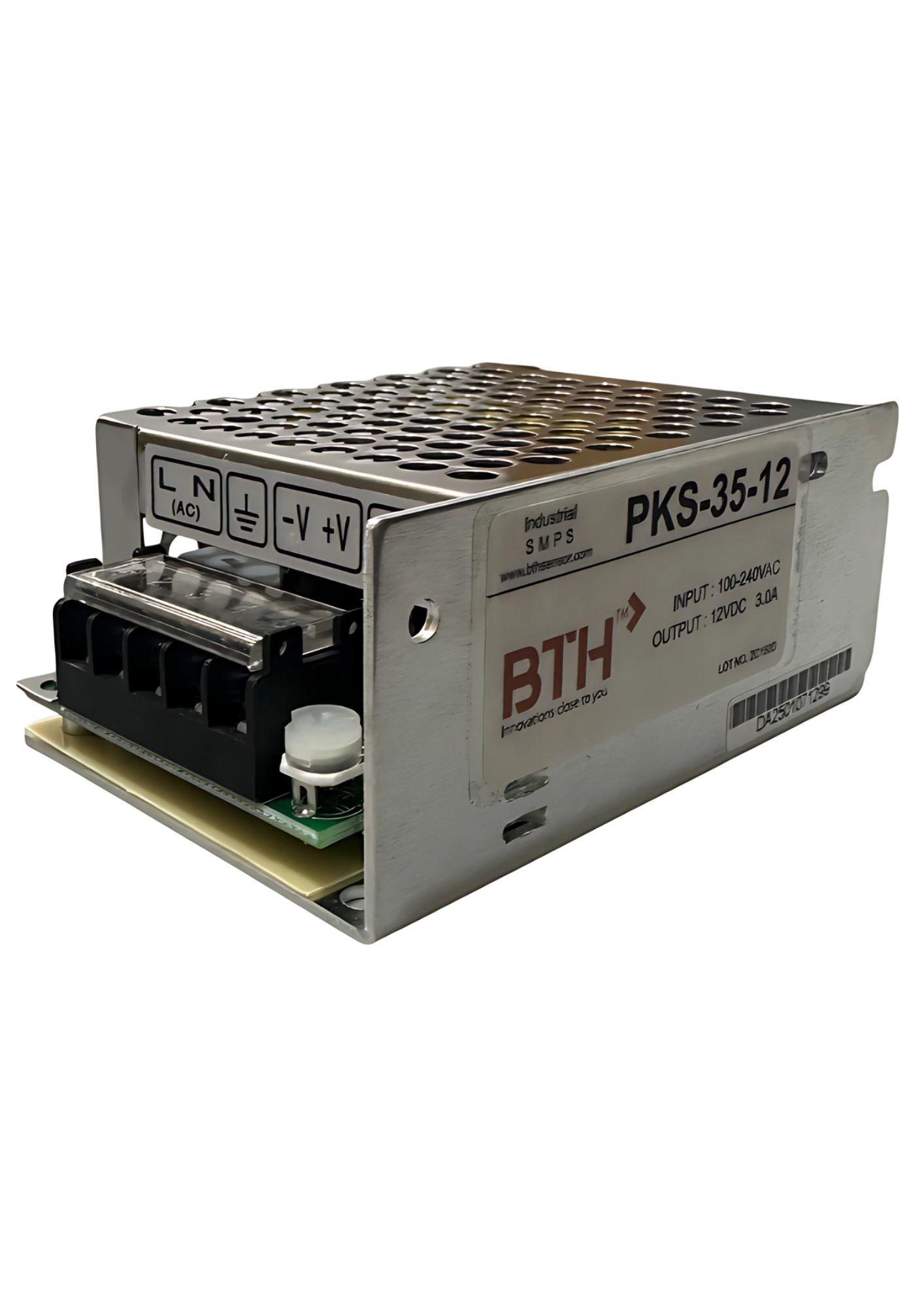

PKS-35-12||Single Output Power Supply, 12V/3A Output, Panel Mount
In stock
SKU
PKS-35-12
Special Price
₹822.15
Regular Price
₹1,305.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Model & Specification | PKS-35-12 |
| DC output Voltage, Current | 12V / 3A |
| Wave and Noise | 100mVp-p |
| Inlet wire Stability | ± 0.5% |
| Load Stability | ± 0.5% |
| Efficiency | 76% |
| Adjustable Range for DC Voltage | ± 10% |
| Input Voltage Range | 100~240V AC |
| Over Load Protection | 105% ~ 150% cut off the output, automatic recovery |
| Impact Current | Cold start current 18A/115VAC 36A/230VAC |
| Setup, Rise, Hold up Time | 200ms, 100ms, 30ms/230VAC at full load |
| Withstand Voltage | I/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG 0.5kV 1minute |
| Isolation Resistance | I/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ |
| Working Temperature | – 10°C ~ +50°C |
| Dimension and Weight | 129 x 98 x 38mm, 0.4kg |
