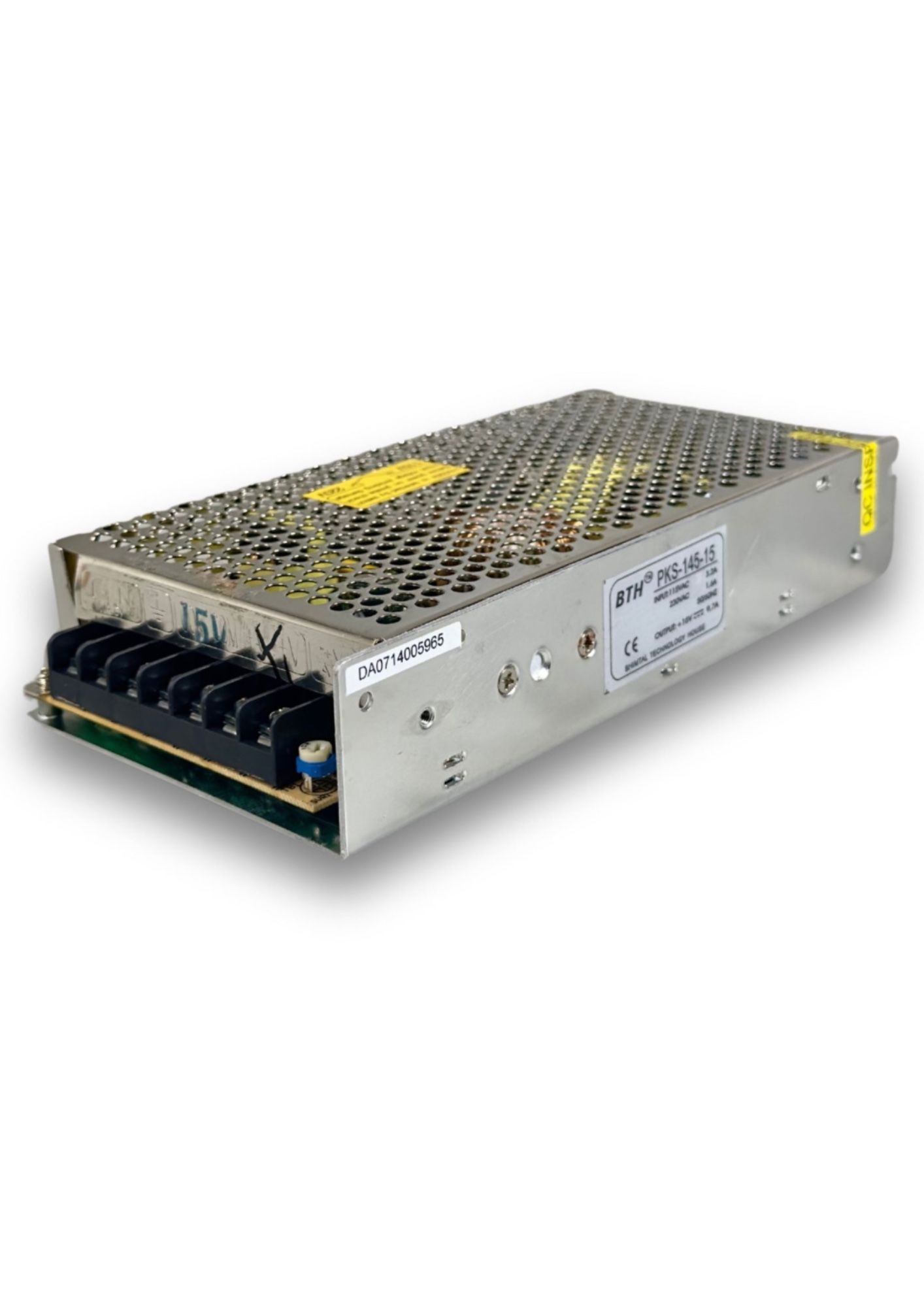

PKS-145-15||Single Output Power Supply, 15V/9.6A Output, Panel Mount
PKS-145-15||Single Output Power Supply, 15V/9.6A Output, Panel Mount

PKS-145-15||Single Output Power Supply, 15V/9.6A Output, Panel Mount

In stock
SKU
PKS-145-15
Special Price ₹1,559.25 Regular Price ₹2,475.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 199 x 98 x 38mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 15V / 0~9.7A
  • Wave and Noise: 100mVp-p
  • Inlet Wire Stability: ± 0.3%
  • Load Stability: ± 0.3%
  • Efficiency: 80.50%
  • Adjustable Range for DC Voltage: ± 10%
  • Input Voltage Range: 90~132VAC / 180~264VAC by switch 254~370VDC 47~63Hz
  • Impact Current: 15A/115VAC 30A/230VAC Cold start current
  • Overload Protection: 105% ~ 150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 100ms, 50ms, 20ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 0.55kg 199 x 98 x 38mm
