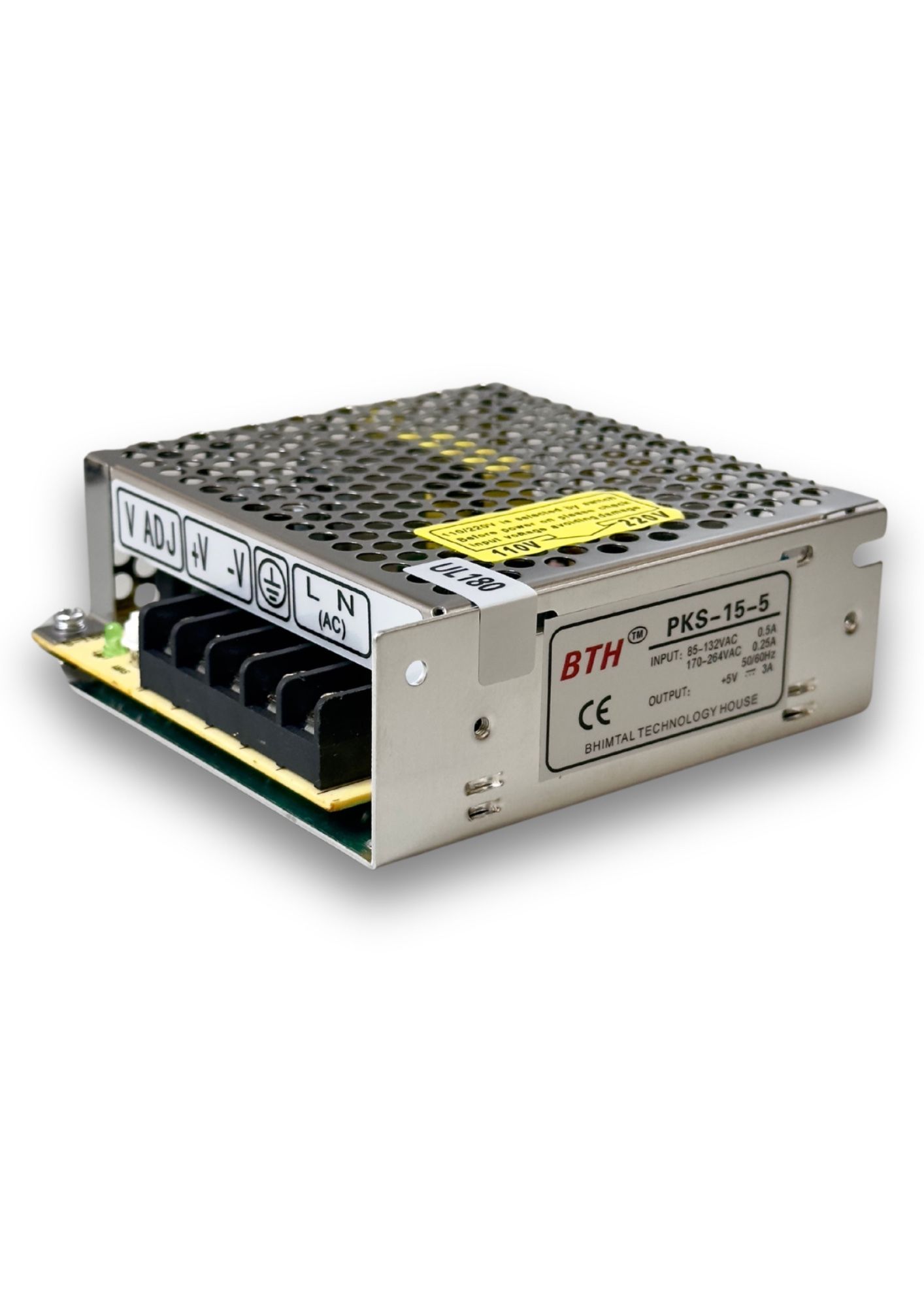

PKS-15-5||Single Output Power Supply, 5V/3A Output, Panel Mount
PKS-15-5||Single Output Power Supply, 5V/3A Output, Panel Mount

PKS-15-5||Single Output Power Supply, 5V/3A Output, Panel Mount

In stock
SKU
PKS-15-5
Special Price ₹645.75 Regular Price ₹1,025.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Air cooling
  • Working frequency 37 KHz
  • Size: 98 x 97 x 35mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V 0~3A
  • Wave and Noise: 50mVp-p
  • Inlet wire Stability: ± 0.5%
  • Load Stability: ± 1%
  • Efficiency: 65%
  • Adjustable Range for DC Voltage: ± 10%
  • Input Voltage Range: 90~132VAC / 180~264VAC by switch 254~370VDC 47~63Hz
  • Impact Current: 15A/115VAC 30A/230VAC Cold start current
  • Setup, Rise, Hold up Time: 200ms, 100ms, 30ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 98 x 97 x 35mm 0.3kg
