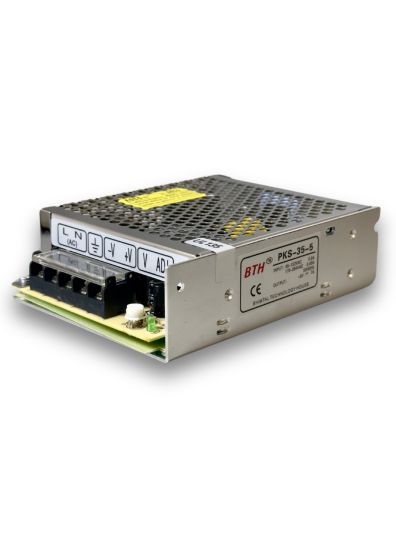

PKS-35-5||Single Output Power Supply, 5V/7A Output, Panel Mount
PKS-35-5||Single Output Power Supply, 5V/7A Output, Panel Mount

PKS-35-5||Single Output Power Supply, 5V/7A Output, Panel Mount

In stock
SKU
PKS-35-5
Special Price ₹822.15 Regular Price ₹1,305.00
(18% GST Extra)
Add to Wish List
  • AC input selectable by switch
  • High efficiency, high reliability
  • 100% full load and machine test
  • Air cooling
  • Working frequency 37 KHz
  • Size: 129 x 98 x 38mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V 0~7A
  • Wave and Noise: 70mVp-p
  • Inlet wire Stability: ± 0.5%
  • Load Stability: ± 1%
  • Efficiency: 70%
  • Adjustable Range for DC Voltage: ± 10%
  • Input Voltage Range: 90~132VAC / 180~264VAC by switch 254~370VDC 47~63Hz
  • Impact Current: 18A/115VAC 36A/230VAC Cold start current
  • Setup, Rise, Hold up Time: 200ms, 100ms, 30ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 98 x 97 x 35mm 0.3kg
  • Over Load Protection: 105%~150% cut off the output, automatic recovery
