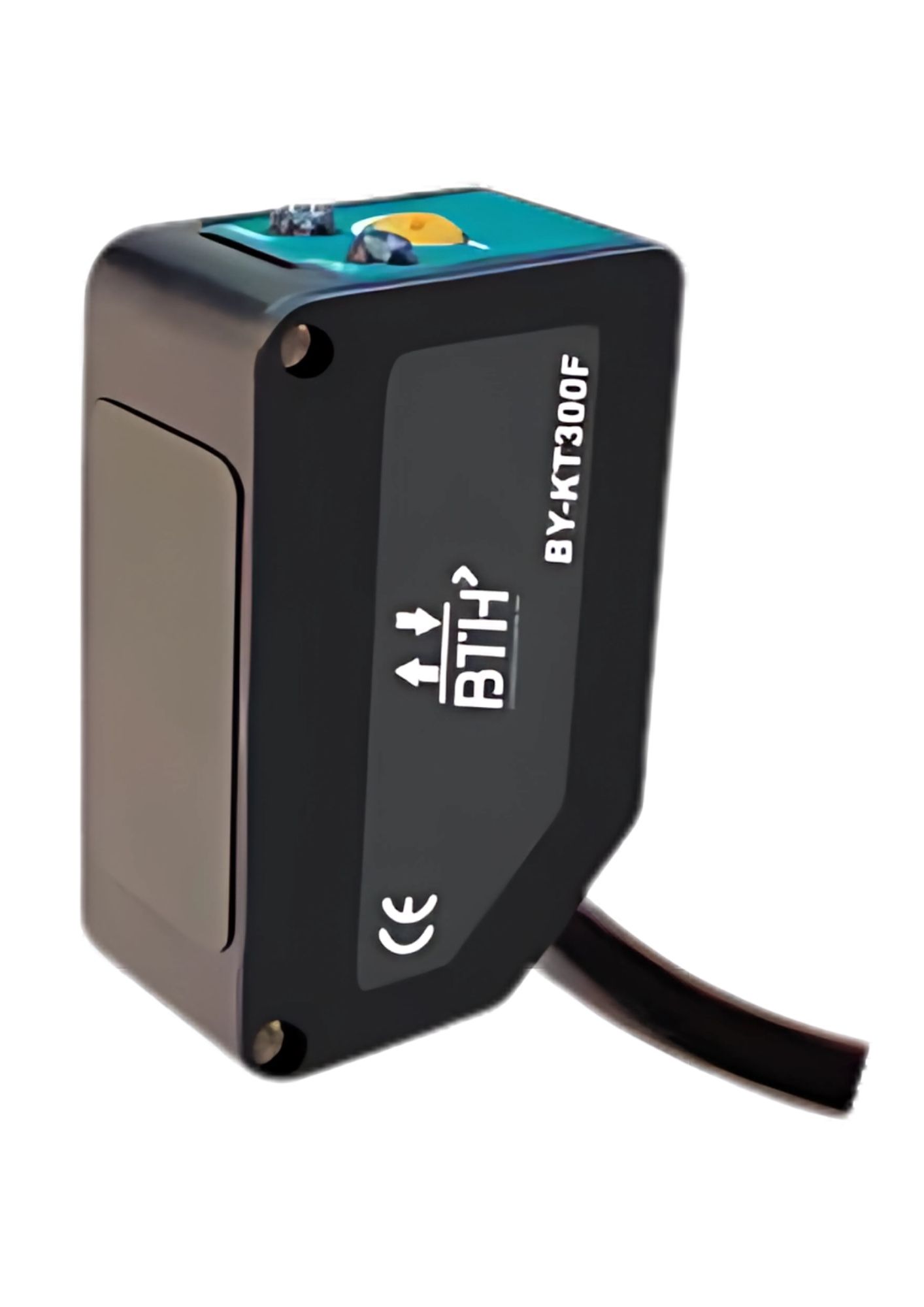

BY-KT300F||Small Diffuse Photo Sensor, Sensing Range 300mm, PNP/NPN Selectable
BY-KT300F||Small Diffuse Photo Sensor, Sensing Range 300mm, PNP/NPN Selectable

BY-KT300F||Small Diffuse Photo Sensor, Sensing Range 300mm, PNP/NPN Selectable

In stock
SKU
BY-KT300F
Special Price ₹1,950.00 Regular Price ₹3,000.00
(18% GST Extra)
Add to Wish List
  • Special Non-spherical optical lens
  • Visible dual LED makes easy to know the current operation situation
  • Sensitivity adjuster
  • Light on / Dark on Selectable through wire
  • Selectable NPN / PNP
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Sensing Type: Diffuse Reflection
  • Sensing Distance: 300mm (white paper 300x300)
  • Emitting Light: Infrared LED 850 nm
  • Operating Voltage: 12~24VDC
  • Current Consumption: 25 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Output Type: PNP(NO) Dark on / PNP(NC) Light on / NPN(NO) Dark on / NPN(NC) Light on
  • Response Time: ON
  • Ambient Light Source: 50,000 lux
  • Insulation resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -20°C ~ + 60°C
  • Ambient Humidity: 35% ~ 85% RH
  • Protection degree: IP64
  • Material: ABS
  • Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
  • Weight: Approx. 60g
