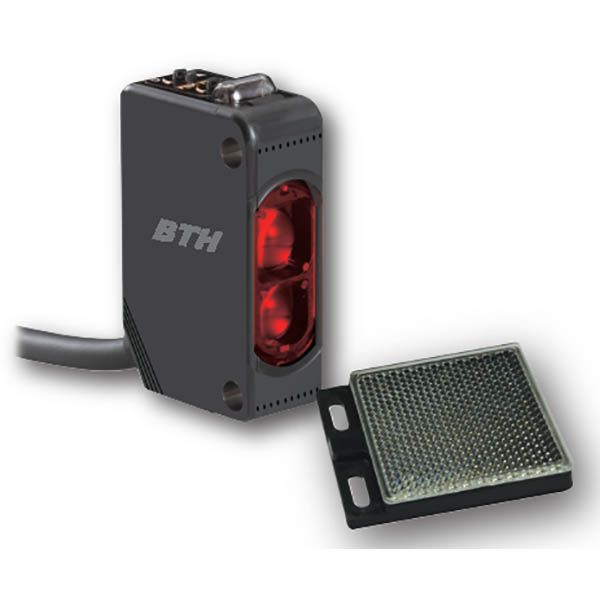

BD-NN2MV||Small size Retroreflective photo sensor, Sensing Range 2 Meter, NPN
In stock
SKU
BD-NN2MV
Special Price
₹2,031.25
Regular Price
₹3,125.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Output Mode: NPN
- Sensing Distance: 2 Mtr.
- Emitting Light: Infrared LED 850 nm
- Operating Voltage: 12~24VDC ±10%
- Current Consumption: <30 mA Max.
- Load Current: 100ma Max. at 24VDC
- Operation mode: Dark on (NO)
- Response Time: 1 ms Max.
- Insulation resistance: 20MΩ min. (DC500V)
- Protection degree: IP55
- Voltage With Standability: AC1000V 60Hz for 60 Sec.
- Operating Temperature: -20°C ~ + 70°C
- Ambient Humidity: 35% ~ 85% RH
- Material: ABS
- Wiring Method: Pre-wired Ø3.8 x 2 M / 3-wires
- Weight: Approx. 40g
No specifications available for this product.
