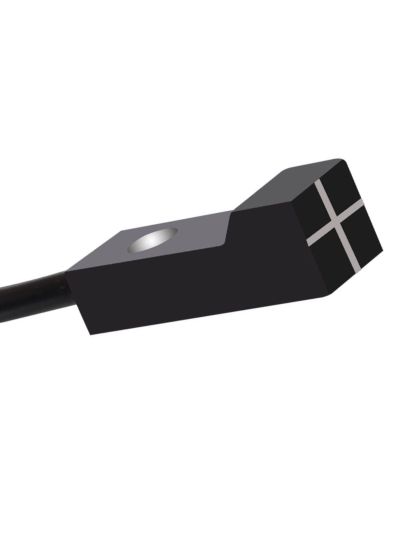

BID-PN2.5-U ||Square Type Inductive Proximity Sensor, Sensing Range 2.5mm, PNP NO, Lateral Sensing

In stock

SKU

BID-PN2.5-U

Special Price ₹578.50 Regular Price ₹890.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NPN Make (NO)
Detecting Distance: 2.5mm
Switching Hysteresis: Max. 15% of Sr
Standard Detecting Target: 8 x 8 x 1mm (Iron)
Setting Distance: 2.5mm ± 10%
Power Supply (Operating Voltage): 10-60VDC
Current Consumption: <10mA
Response Frequency: 2 kHz
Residual Voltage: Max. 1.5V
Temperature Drift: ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC
Control Output: 150mA
Connection Type: Cable 2mtr.
Housing Type: Mini square 8X8mm, length 25mm, Lateral Sensing
Housing Material: PC
Vibration & Shock: 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s² (50G) in X, Y,Z direction for 3 times
Indicator: Operating indicator (RED LED)
Ambient Temperature: –25 to +70ºC (non–freezing condition)
Storage Temperature: –30 to +80ºC (non-freezing condition)
Ambient Humidity: 35 to 95% RH
Protection Circuit: Surge protection circuit, Overload & short circuit protection
Protection: IP67
Weight: Approx. 30g
Approval: CE

No specifications available for this product.
