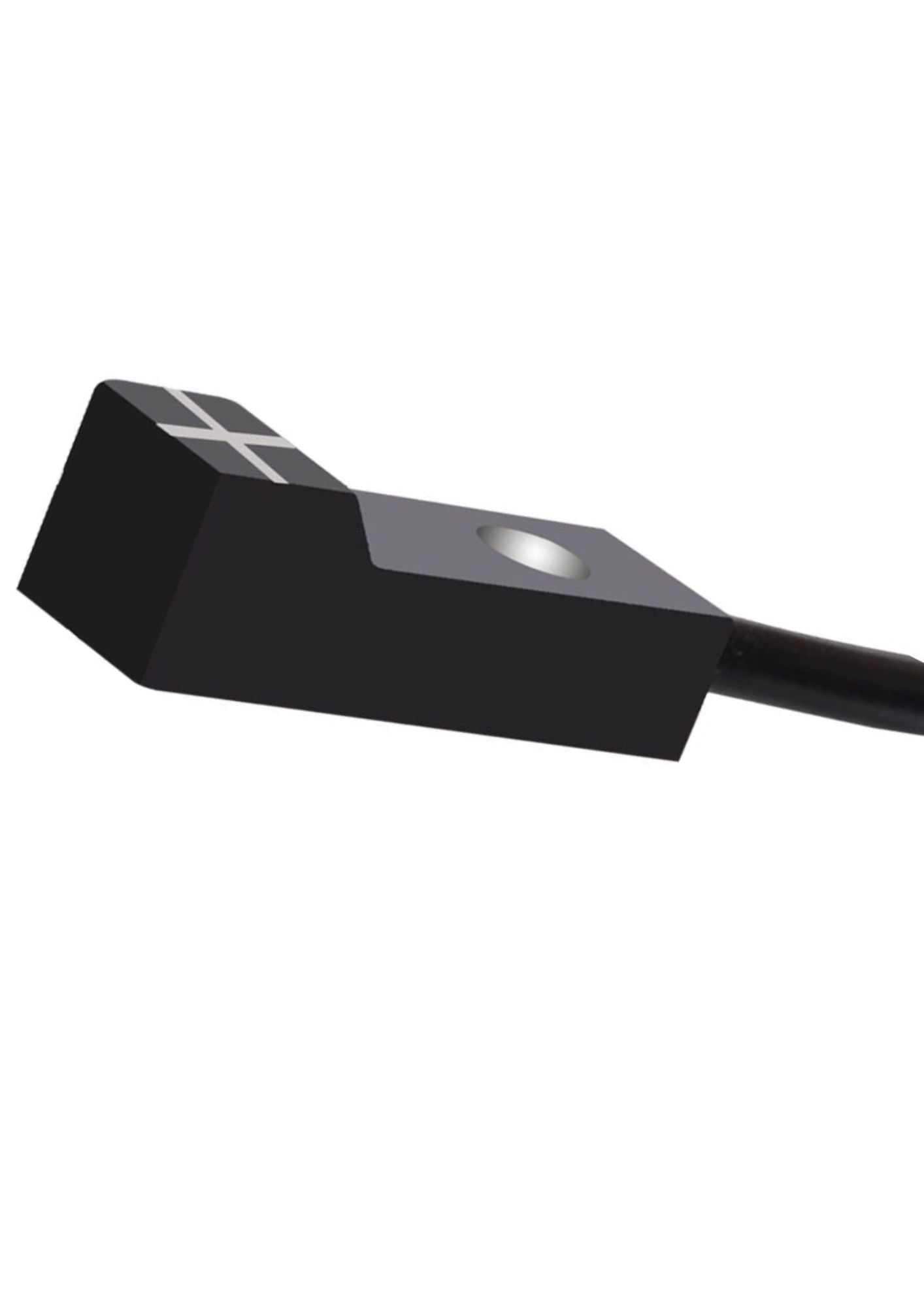

BID-PN2.5 ||Square Type Inductive Proximity Sensor, Sensing Range 2.5mm, PNP NO, Upside Sensing
BID-PN2.5 ||Square Type Inductive Proximity Sensor, Sensing Range 2.5mm, PNP NO, Upside Sensing

BID-PN2.5 ||Square Type Inductive Proximity Sensor, Sensing Range 2.5mm, PNP NO, Upside Sensing

In stock
SKU
BID-PN2.5
Special Price ₹578.50 Regular Price ₹890.00
(18% GST Extra)
Add to Wish List
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: PNP Make (NO)
  • Detecting Distance: 2.5mm
  • Switching Hysteresis: Max. 15% of Sr
  • Standard Detecting Target: 8 x 8 x 1mm (Iron)
  • Setting Distance: 2.5mm ± 10%
  • Power Supply (Operating Voltage): 10-60VDC
  • Current Consumption: <10mA
  • Response Frequency: 2 kHz
  • Residual Voltage: Max. 1.5V
  • Temperature Drift: ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC
  • Control Output: 150mA
  • Connection Type: Cable 2mtr.
  • Housing Type: Mini square 8X8mm, length 23mm, Upside Sensing
  • Housing Material: PC
  • Vibration & Shock: 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s² (50G) in X, Y,Z direction for 3 times
  • Indicator: Operating indicator (RED LED)
  • Ambient Temperature: –25 to +70ºC (non–freezing condition)
  • Storage Temperature: –30 to +80ºC (non-freezing condition)
  • Ambient Humidity: 35 to 95% RH
  • Protection Circuit: Surge protection circuit, Overload & short circuit protection
  • Protection: IP67
  • Weight: Approx. 30g
  • Approval: CE
