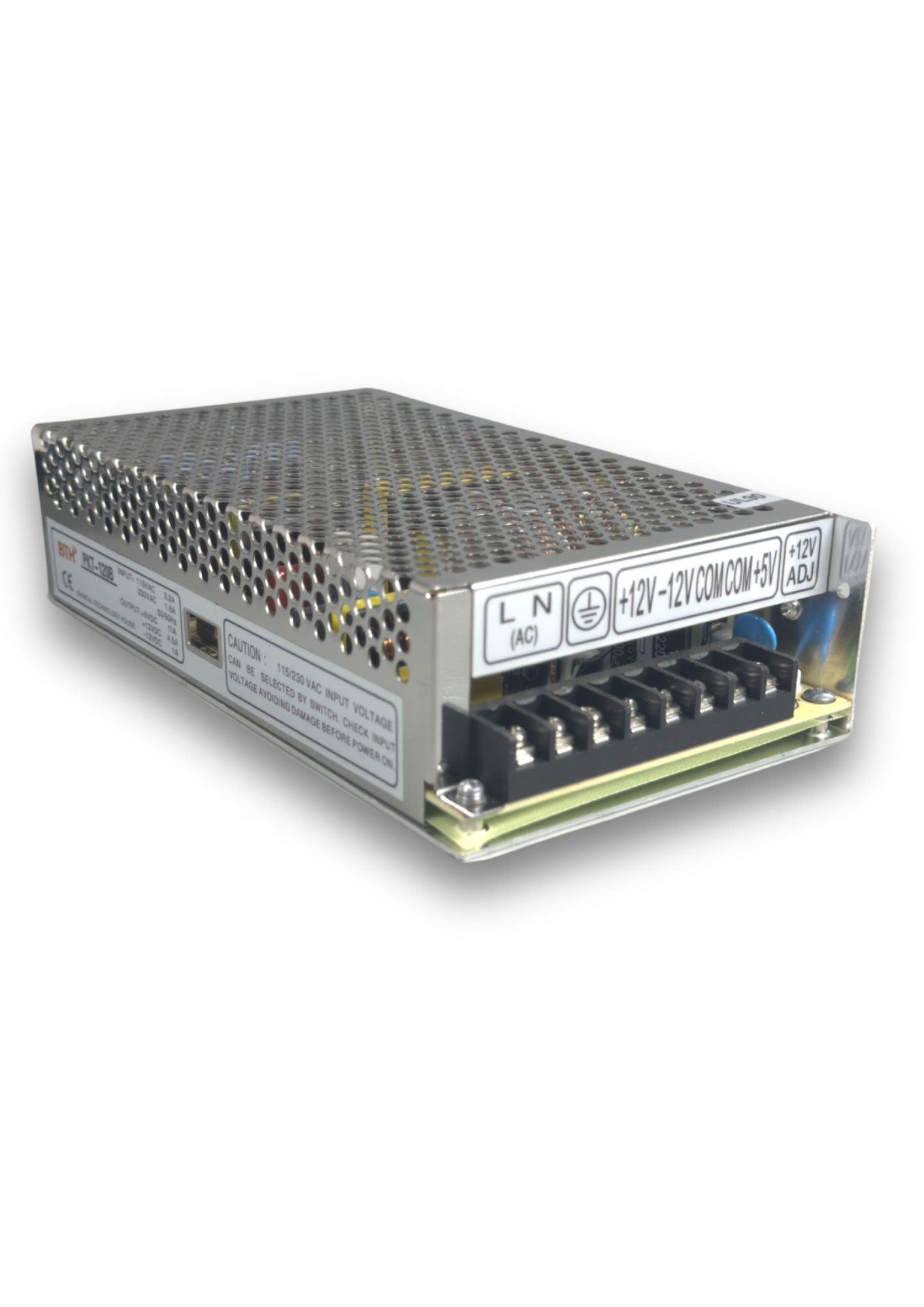

PKT-120B||Triple Output Power Supply, 5V/2~11A, 12V/.5~4.5A, -12V/.2~1A Output, Panel Mount
PKT-120B||Triple Output Power Supply, 5V/2~11A, 12V/.5~4.5A, -12V/.2~1A Output, Panel Mount

PKT-120B||Triple Output Power Supply, 5V/2~11A, 12V/.5~4.5A, -12V/.2~1A Output, Panel Mount

In stock
SKU
PKT-120B
Special Price ₹2,683.80 Regular Price ₹4,260.00
(18% GST Extra)
Add to Wish List
  • AC input selectable by switch
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 199 x 110 x 50mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V 2~11A / 12V 0.5~4.5A / –12V 0.2~1A
  • Wave and Noise: 80mVp-p 150mVp-p 150mVp-p
  • Inlet Wire Stability: ± 0.5% ± 1% ± 1%
  • Load Stability: ± 1% ± 5% ± 5%
  • Efficiency: 77% 77% 77%
  • Adjustable Range for DC Voltage: ± 10% ± 5% ± 5%
  • Input Voltage Range: 90~132VAC / 180~264VAC by switch 254~370VDC 47~63Hz
  • Impact Current: 30A/115VAC 60A/230VAC Cold start current
  • Overload Protection: 105% ~ 150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 200ms, 50ms, 16ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 0.9kg199 x 110 x 50mm
