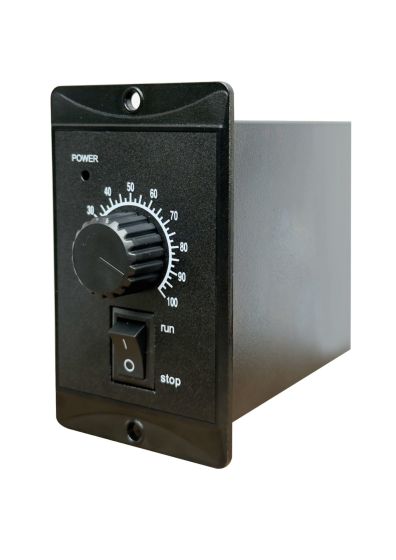

CUA-C-60W | Speed controller for 60 Watt, 220VAC motor, applicable to speed control motor only
In stock
SKU
CUA-C-60W
Special Price
₹1,625.00
Regular Price
₹2,500.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Model: CUA-C-60W
- Motor Wattage: 60 Watt
- Built-in Capacitor: 4.0 µF
- Operating Voltage: 220V AC ±10%, 50/60 Hz
- Speed Control Range:
- 50 Hz: 90 ~ 1300 RPM
- 60 Hz: 90 ~ 1600 RPM
- Speed Regulation: ±5% (typical)

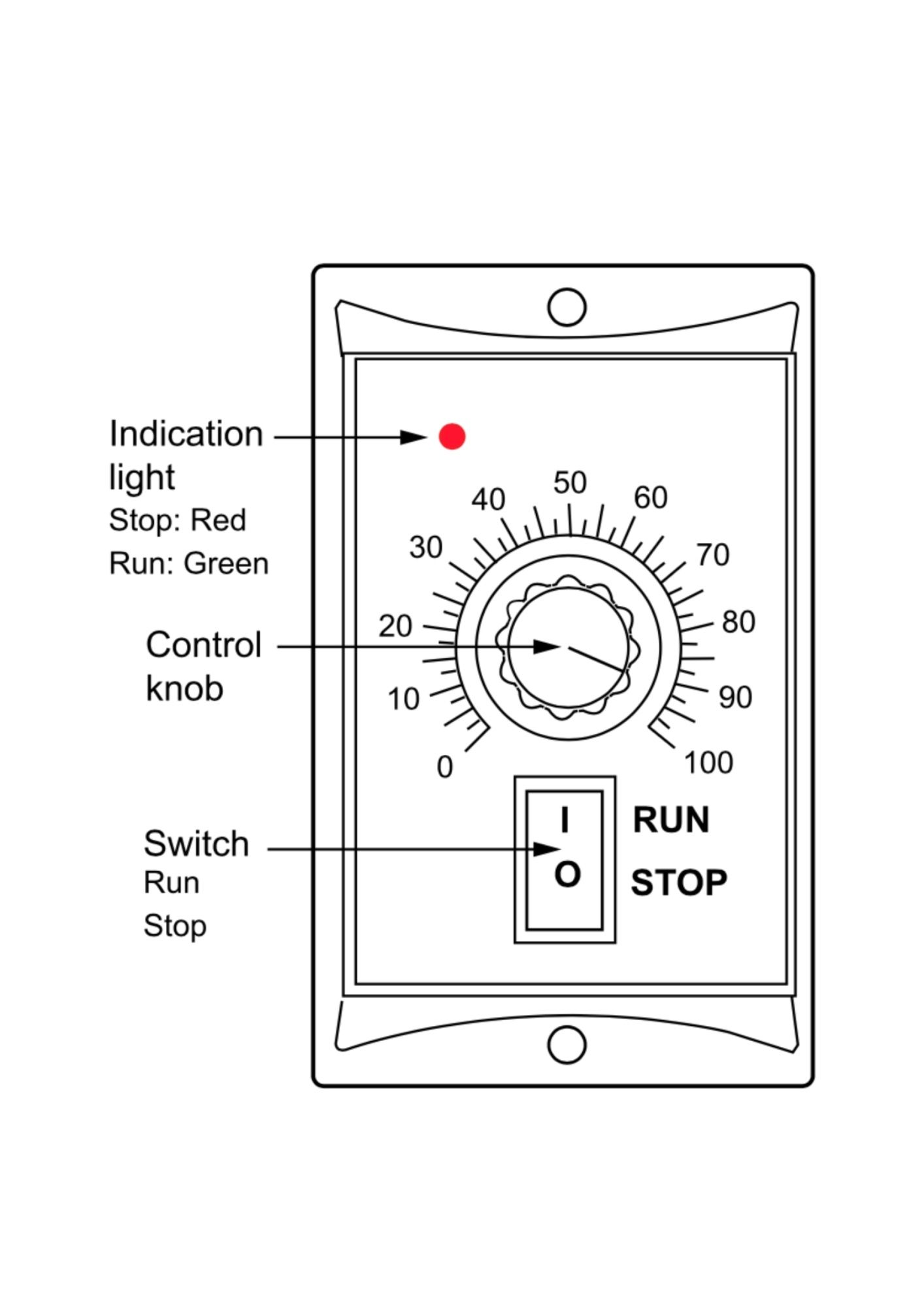

- Speed Setting: Front-mounted potentiometer
- Ambient Temperature: −10°C to +40°C
- Operating Humidity: Below 85% RH (non-condensing)

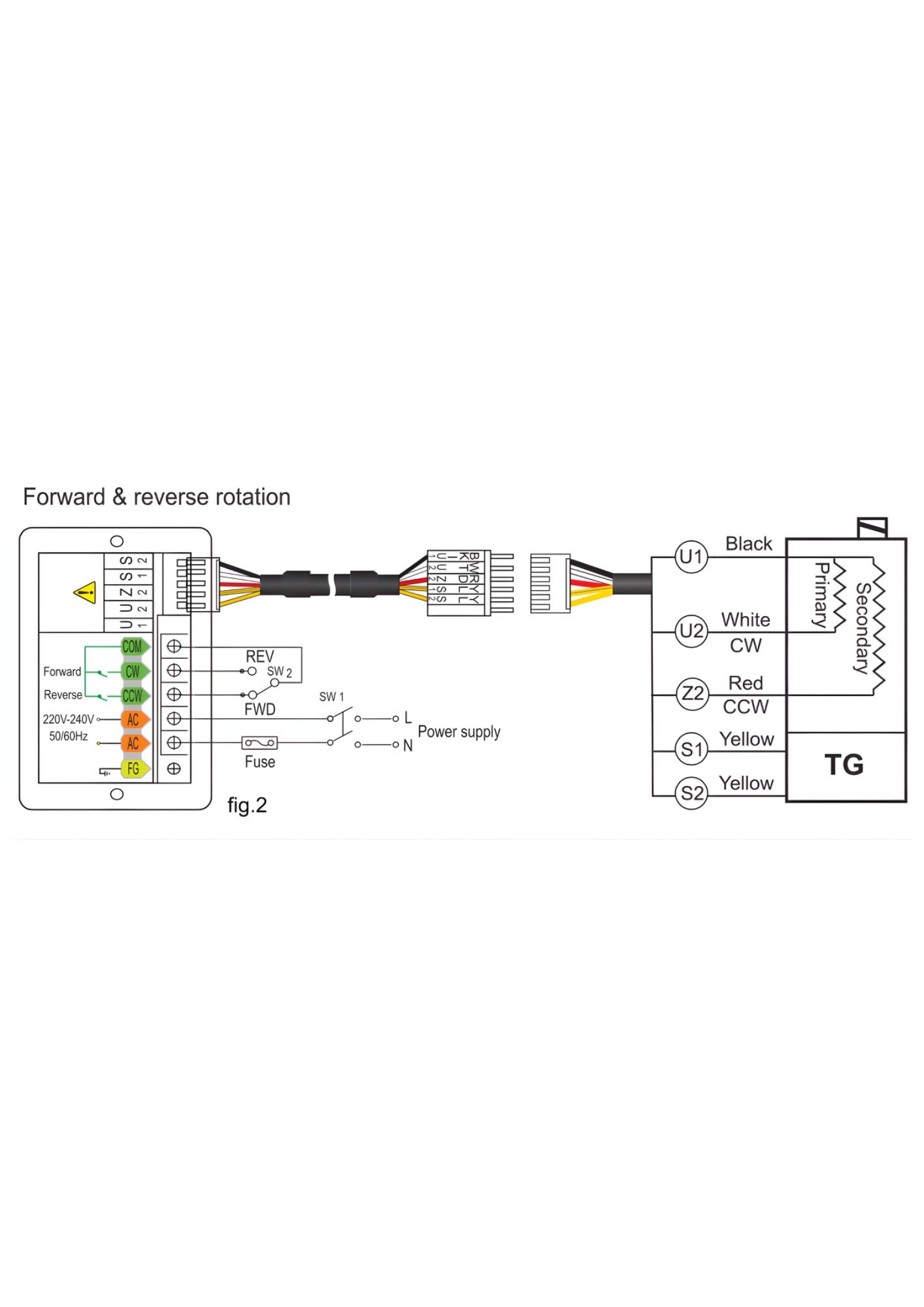

- Connection: 800mm. 5core with wire, flat 6-PIN connector

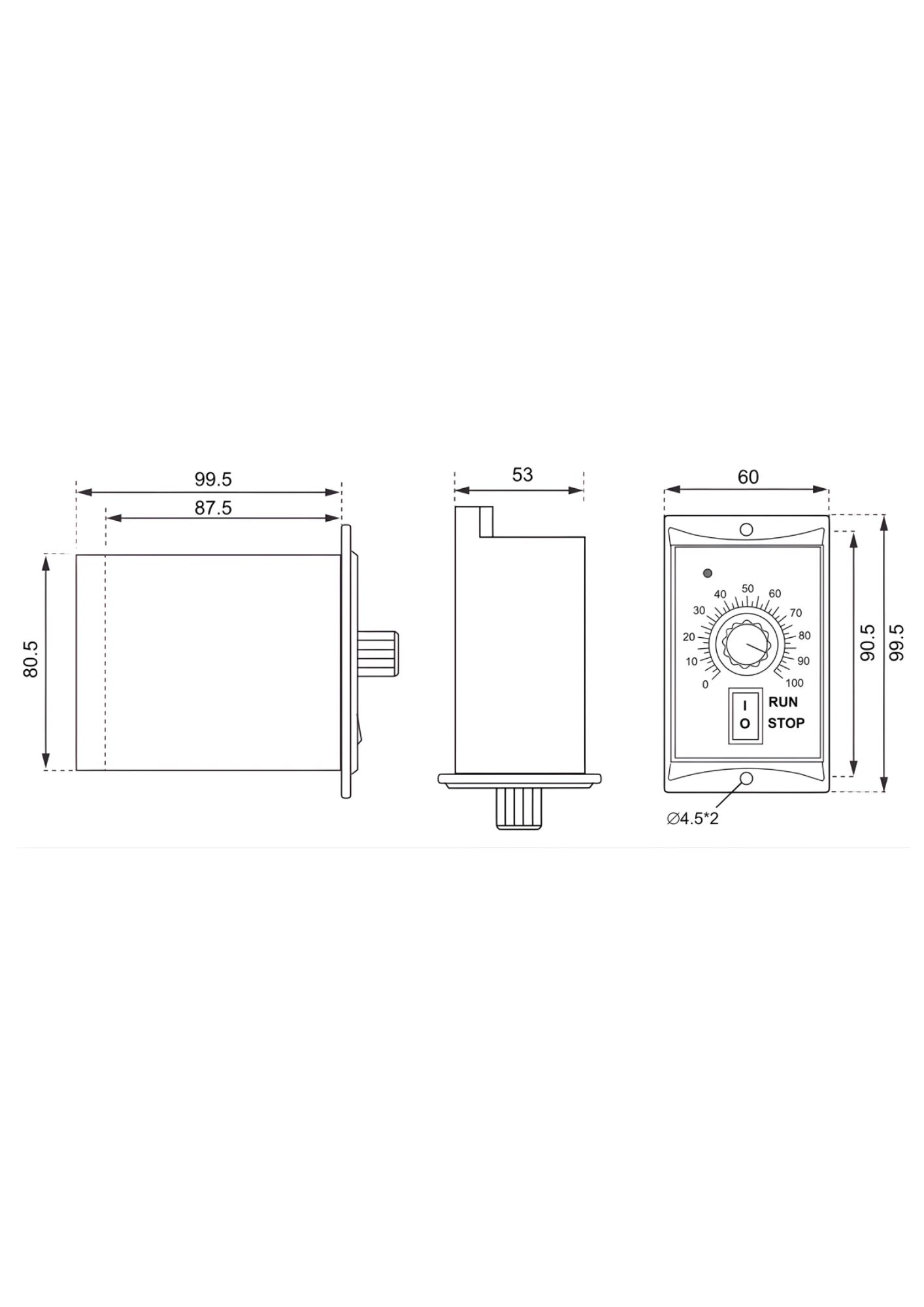

- Dimensions: 99 × 60 mm
