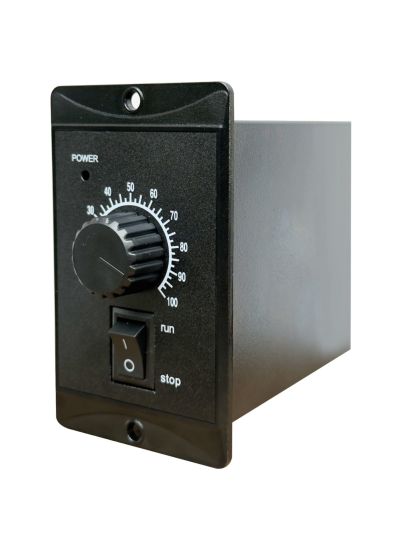

CUA-C-90W | Speed controller for 90 Watt, 220VAC motor, applicable to speed control motor only
In stock
SKU
CUA-C-90W
Special Price
₹1,625.00
Regular Price
₹2,500.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Model: CUA-C-90W AC Motor Speed Controller
- Rated Motor Capacity: 90 Watt
- Built-in Capacitor: 5.0 µF
- Operating Voltage: 220V AC ±10%, 50/60Hz
- Speed Control Range: 90 ~ 1300 rpm (50Hz), 90 ~ 1600 rpm (60Hz)
- Speed Regulation: 5% (normal value)
- Speed Setting: Front-mounted potentiometer
- Ambient Operating Temperature: -10°C to +40°C
- Operating Humidity: Below 85% RH (non-condensing)
- Connection: 800mm. 5core with wire, flat 6-PIN connector

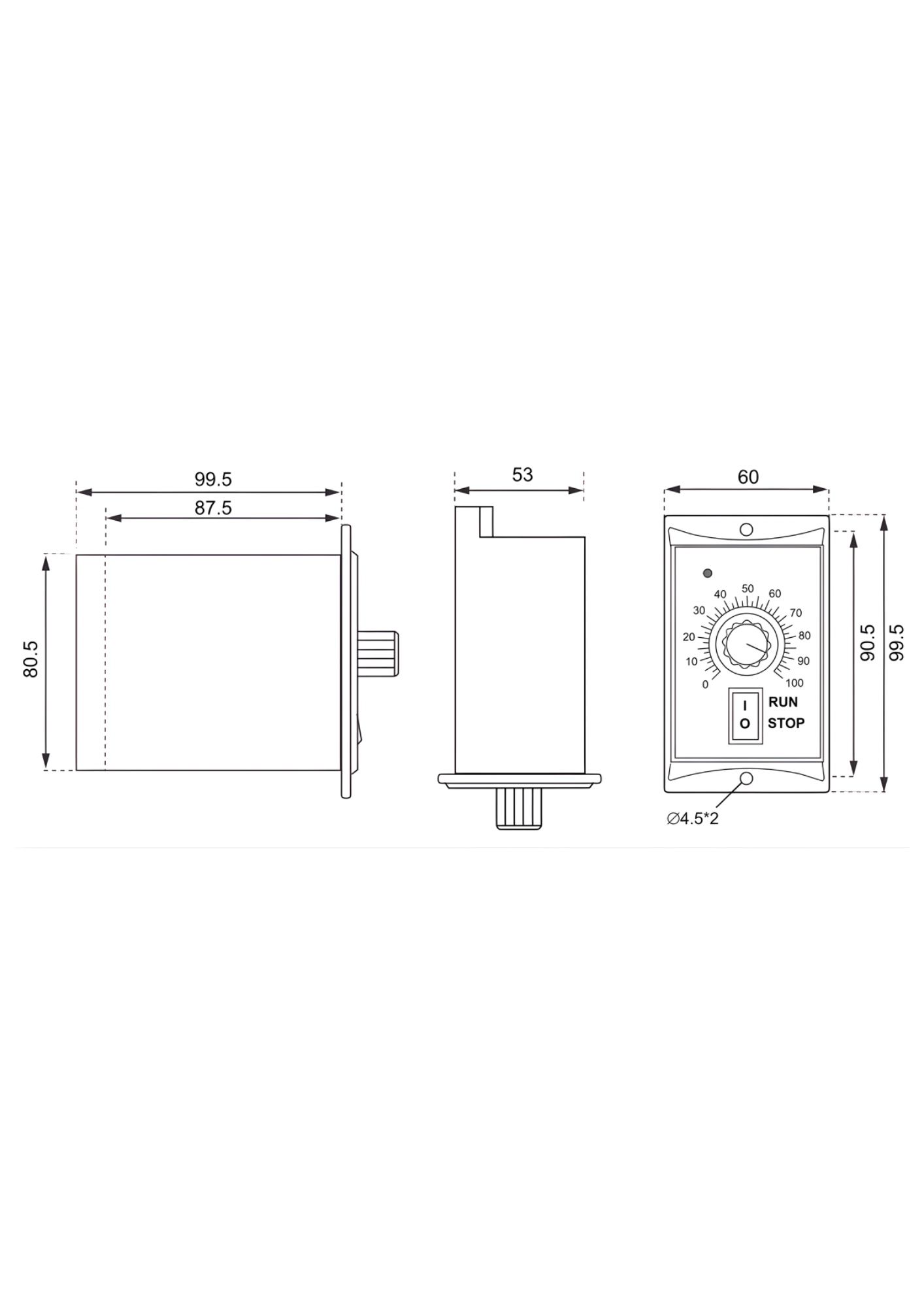

- Dimensions: Front face 99 × 60 mm
No specifications available for this product.
Write Your Own Review
Downloads
