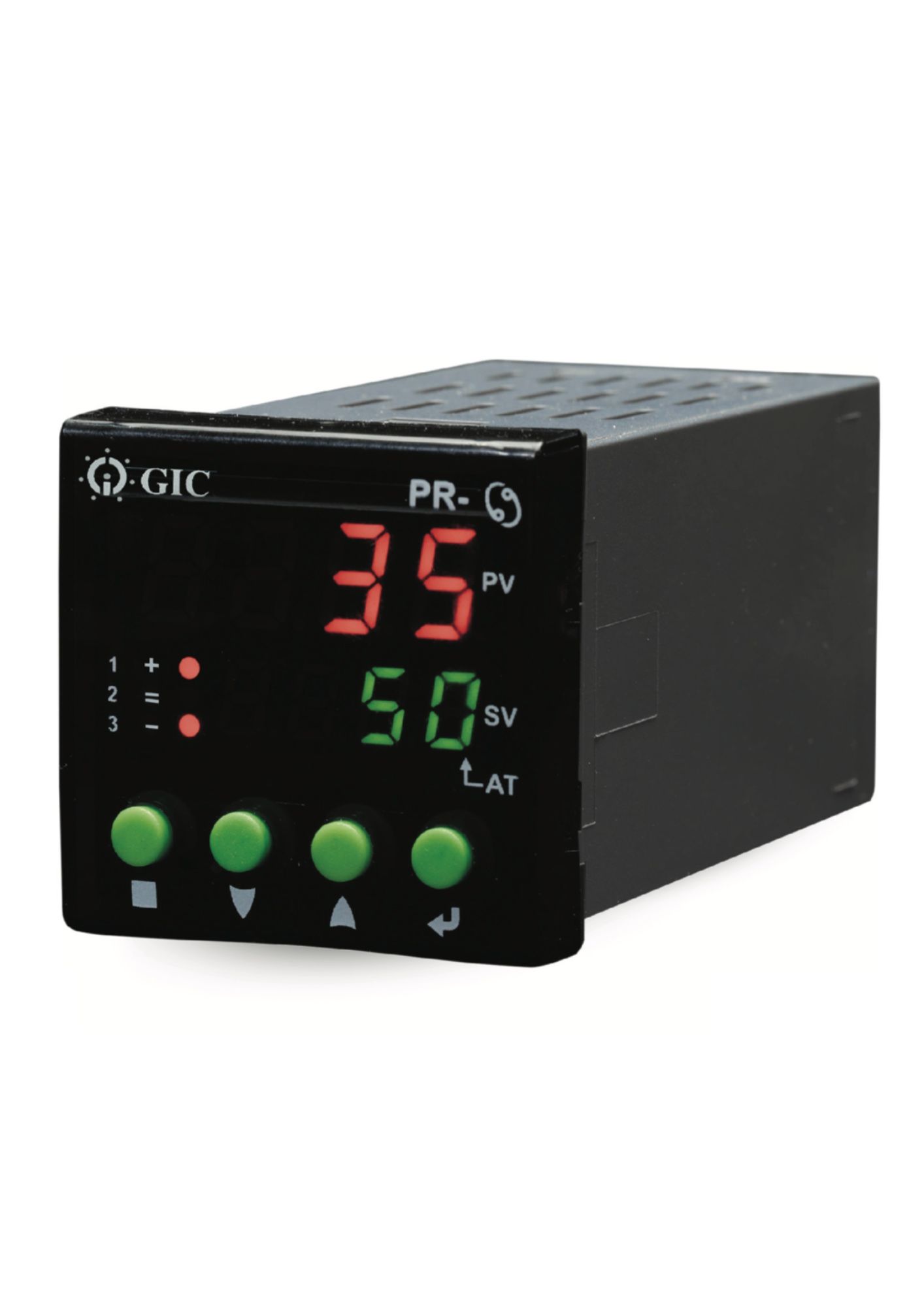

GIC 151A12B, 2 Relays (SPST 8A & 5A, 240 VAC / 28 VDC), SSR driving output (12 VDC, 24mA), PID Temperature Controller
In stock
SKU
151A12B
Special Price
₹1,893.50
Regular Price
₹2,705.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Supply Voltage | 110 - 240 VAC |
| Supply Variation | -20% to +10% (of Supply Voltage) |
| Frequency | 50/60 Hz |
| Control Action | ON/OFF (Symmetric / Asymmetric), PID (Single Acting) |
| Tuning Method | Auto Tuning / Manual Tuning |
| Temperature Sensors / Inputs | Thermocouple: J, K, E, S, B, R; RTD: PT100 (3 wire compensation); Analog Signal DC: (0-50 mV, 0-60 mV, 12-60 mV) |
| Measurement Range |
Sensor J: 0 to 700°C / 32 to 1292°F Sensor K: 0 to 1300°C / 32 to 2372°F Sensor E: 0 to 600°C / 32 to 1112°F Sensor R: 0 to 1750°C / 32 to 3182°F Sensor S: 0 to 1750°C / 32 to 3182°F Sensor B: 250 to 1820°C / 482 to 3308°F Sensor PT100 (3 wire): -200 to 700°C / -328 to 1292°F |
| Measurement Accuracy | ±0.5% of full scale for PT100, ±1% of full scale for TC & mV signals |
| Resolution | 0.1°C for RTD, J, E; 1°C for S, B, K; 0.001°C for mV signals |
| Configurable Set Points | 2 |
| Display | Dual row 7-segment display with LED indications; 4-digit process value & 4-digit set value |
| Alarm Types | Absolute (High/Low/Band), Deviation (High/Low/Band), Sensor Break, Loop Break |
| Soft Start Feature | Yes |
| Ramp Soak Feature | No |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity (Non-Condensing) | 80% RH |
| Enclosure | Flame Retardant UL94V0 |
| Dimensions (W x H x D) | 48 x 48 x 91.5 mm |
| Mounting | Flush |
| Degree of Protection | IP20 (Terminal & Enclosure), IP40 (Front Panel only) |
