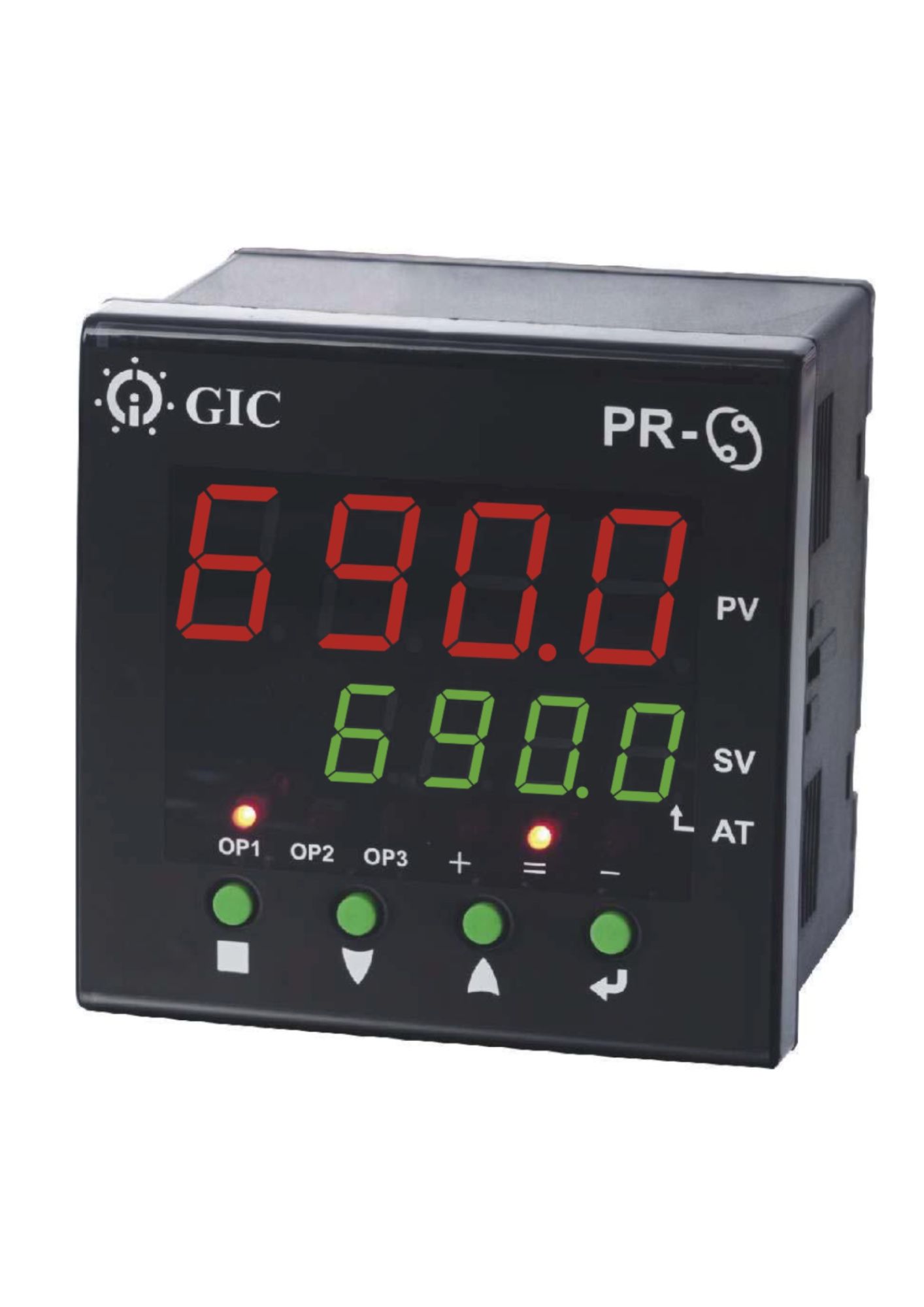

GIC 151F42B, 2 Relays (SPST 5A each, 240V AC/ 28V DC), SSR driving output (12 VDC, 24mA), PID Temperature Controller
In stock
SKU
151F42B
Special Price
₹3,202.50
Regular Price
₹4,575.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Technical Specifications | |
|---|---|
| Supply Voltage | 110 - 240 VAC/DC |
| Supply Variation | -20% to +20% (of rated supply) |
| Frequency | 50 / 60 Hz |
| Control Action | ON/OFF (Symmetric / Asymmetric), PID (Single Acting) |
| Tuning Method | Auto Tuning / Manual Tuning |
| Temperature Sensors / Inputs | Thermocouple: J, K, E, S, B, R; RTD: PT100 (3-wire compensation); Analog Signal DC: (0–50 mV, 0–60 mV, 12–60 mV) |
| Analog Input | 0–5 V, 1–5 V, 0–10 V / 4–20 mA |
| Measurement Range |
Sensor J: 0 to 700°C / 32 to 1292°F Sensor K: 0 to 1300°C / 32 to 2372°F Sensor E: 0 to 600°C / 32 to 1112°F Sensor R: 0 to 1750°C / 32 to 3182°F Sensor S: 0 to 1750°C / 32 to 3182°F Sensor B: 250 to 1820°C / 482 to 3308°F Sensor PT100 (3 wire): -200 to 700°C / -328 to 1292°F |
| Measurement Accuracy | ±0.5% of full scale for PT100, ±1% of full scale for TC & mV signals, ±1 Digit (for DC Analog Input) |
| Resolution | 0.1°C for RTD, J, E; 1°C for S, B, K; 0.001°C for mV signals |
| Configurable Set Points | 2 |
| Display | Dual line 7-segment LED display, 4-digit process value & 4-digit set value, with LED status indications |
| Alarm Types | Absolute (High/Low/Band), Deviation (High/Low/Band), Sensor Break, Loop Break |
| Soft Start Feature | Yes |
| Ramp Soak Feature | No |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +75°C |
| Humidity (Non-Condensing) | 80% RH |
| Enclosure | Flame Retardant UL94V0 |
| Dimensions (W × H × D) | 96 × 96 × 45 mm |
| Mounting | Flush |
