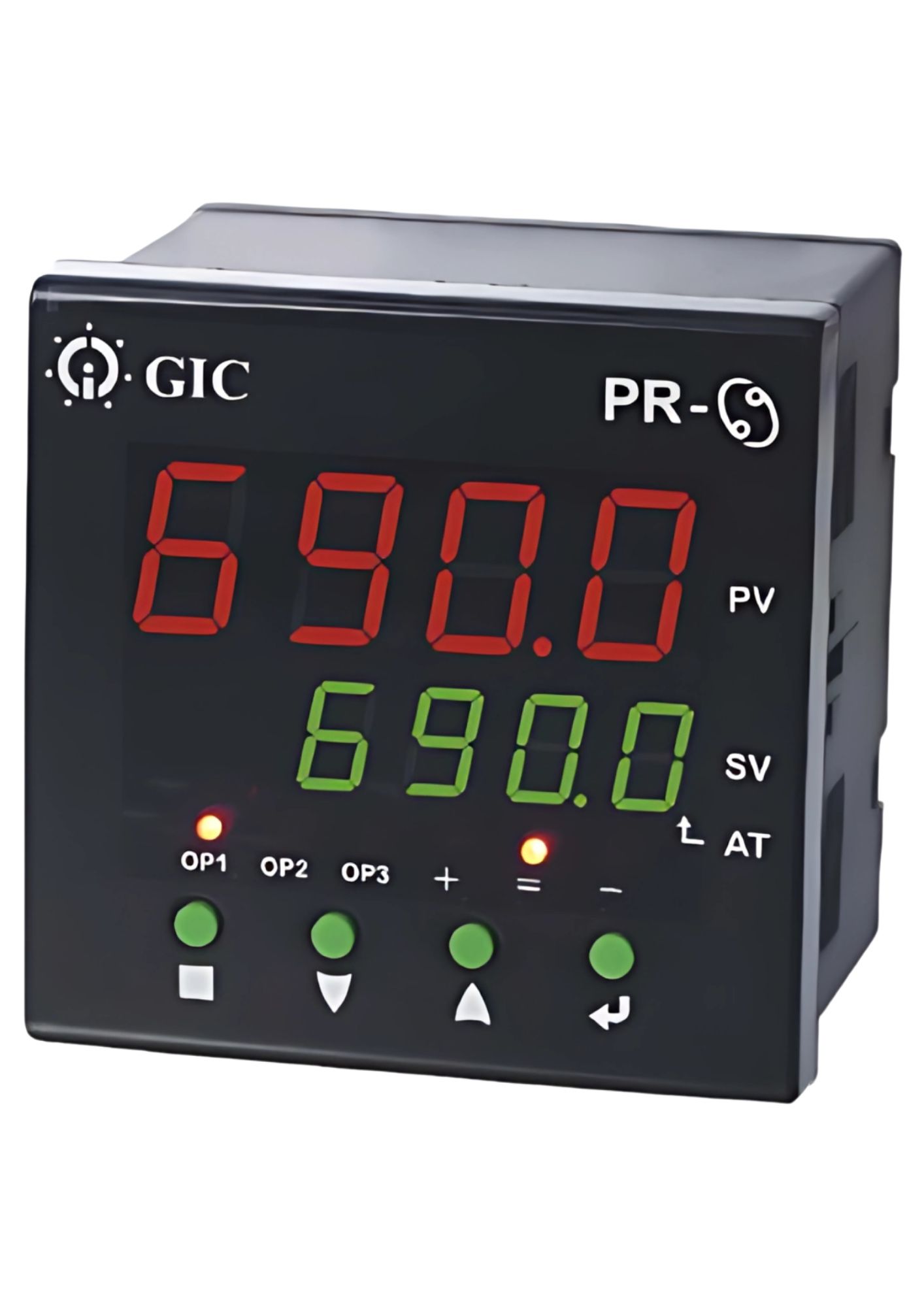

GIC 151J42B, 4 Digit Dual Display Digital Temperature Controller, Analog Input & 3 Relay Output, Size 96x96mm, Panel Mount
In stock
SKU
151J42B
Special Price
₹3,202.50
Regular Price
₹4,575.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Supply Voltage | 110 - 240 VAC/DC |
| Supply Variation | -20% to +20% (of rated supply) |
| Frequency | 50/60 Hz |
| Control Action | ON/OFF (Symmetric / Asymmetric), PID (Single Acting) |
| Tuning Method | Auto Tuning / Manual Tuning |
| Temperature Sensors / Inputs | Thermocouple: J, K, E, S, B, R; RTD: PT100 - 3 wire compensation; Analog Signal DC: (0-50 mV, 0-60 mV, 12-60 mV) |
| Analog Input | 0-5 V, 1-5 V, 0-10 V / 4-20 mA |
| Measurement Range |
Sensor J: 0 to 700°C / 32 to 1292°F Sensor K: 0 to 1300°C / 32 to 2372°F Sensor E: 0 to 600°C / 32 to 1112°F Sensor R: 0 to 1750°C / 32 to 3182°F Sensor S: 0 to 1750°C / 32 to 3182°F Sensor B: 250 to 1820°C / 482 to 3308°F Sensor PT100 (3 wire): -200 to 700°C / -328 to 1292°F |
| Measurement Accuracy | 0.5% of full scale for Pt100, ±1% for J & K, ±3% for other thermocouples, ±0.2% at 25°C (for DC analog input) |
| For Tc and mV signals | Resolution: 0.1°C for RTD, J, E; 1°C for S, B, K, R; 0.001°C for mV signals |
| Configurable Set Points | 2 |
| Display | Dual row 7 segment LED display, 4-digit process value, 4-digit set value |
| Alarm Types | Absolute (High/Low/Band), Deviation (High/Low/Band), Sensor Break, Loop Break |
| Soft Start Feature | Yes |
| Ramp Soak Feature | No |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +75°C |
| Humidity (Non-Condensing) | 80% RH |
| Enclosure | Flame Retardant UL94V0 |
| Dimensions (W x H x D) | 96 x 96 x 45 mm |
| Mounting | Flush |
| Degree of Protection | IP20 (Terminal & Enclosure), IP54 (Front Panel only) |
