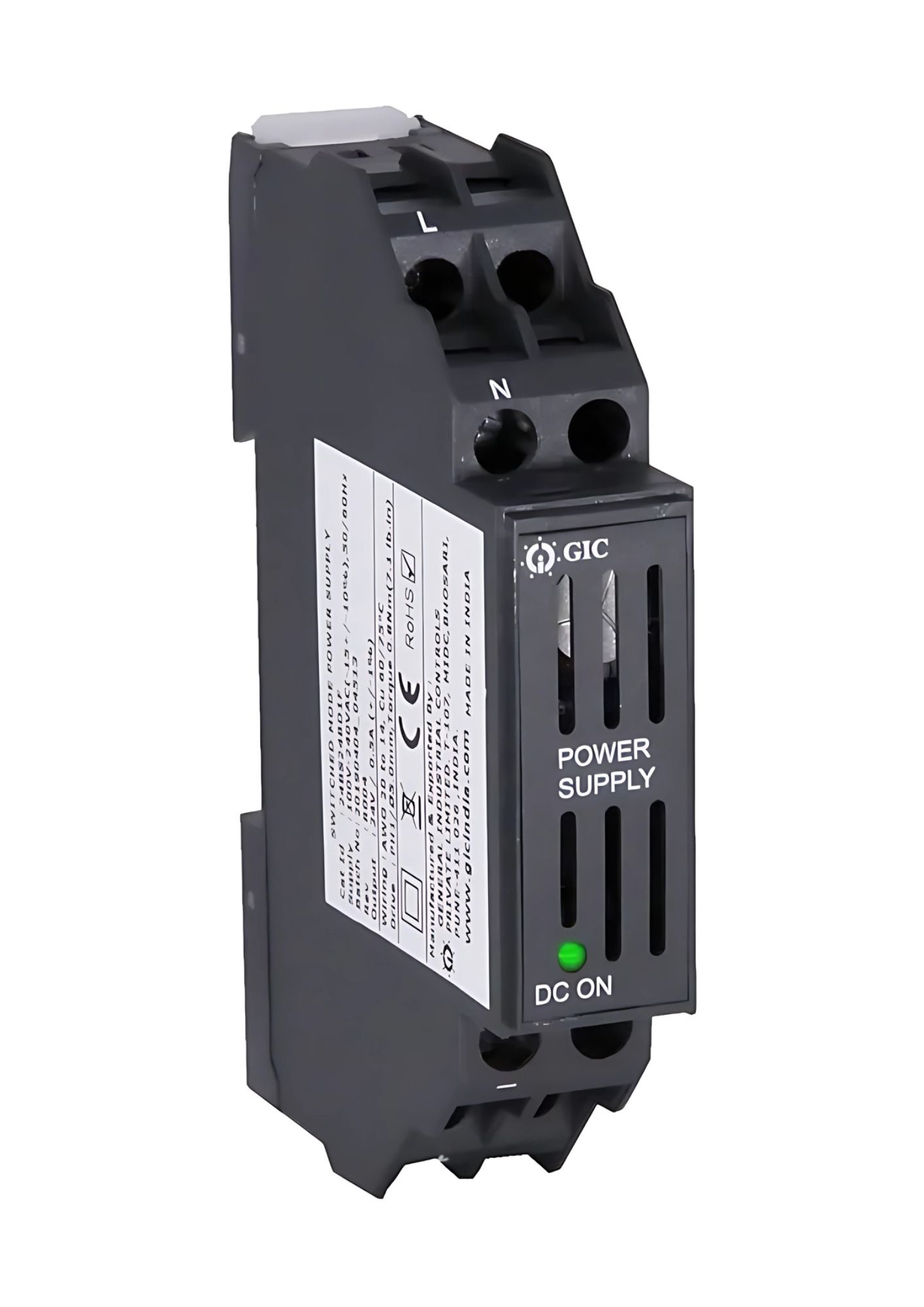

GIC 24BS051D1F, 5W, 100 - 240 VAC, 5 VDC / 1.0A, Switched Mode Power Supply (SMPS)
In stock
SKU
24BS051D1F
Special Price
₹551.70
Regular Price
₹1,226.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Supply Voltage | 100-240V AC |
| Supply Variation | -15% to +10% |
| Frequency | 50/60 Hz, (± 3 Hz) |
| Power Consumption @ No Load | <0.3W |
| AC Current | 140 mA |
| Rated Output Voltage | 5 VDC |
| Rated Current | 1A |
| Rated Power | 5W |
| Output Voltage Accuracy | ±1% |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Ripple & Noise | 100 mV (P-P) |
| Over Voltage Protection | <180% |
| Over Load Capacity | 120% ~ 140% |
| Continuous Open Circuit | Normal Operation |
| Over Current Protection | Voltage Drop |
| Continuous Short Circuit Protection | Auto Recovery after fault condition is removed |
| Start Up Time | 2s Max. |
| Hold Up Time | >10 ms @115 VAC & >20 ms @230 VAC |
| Withstand Voltage | Input to Output 3 KV AC for 1 Minute, 5 mA |
| LED Indications | Green LED: Output ON |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Enclosure | Flame Retardant UL94-V0 |
| Dimension (W x H x D) | 17.5 X 90 X 58.5 mm |
| Mounting | Base / DIN Rail |
| Certification | RoHS Compliant |
