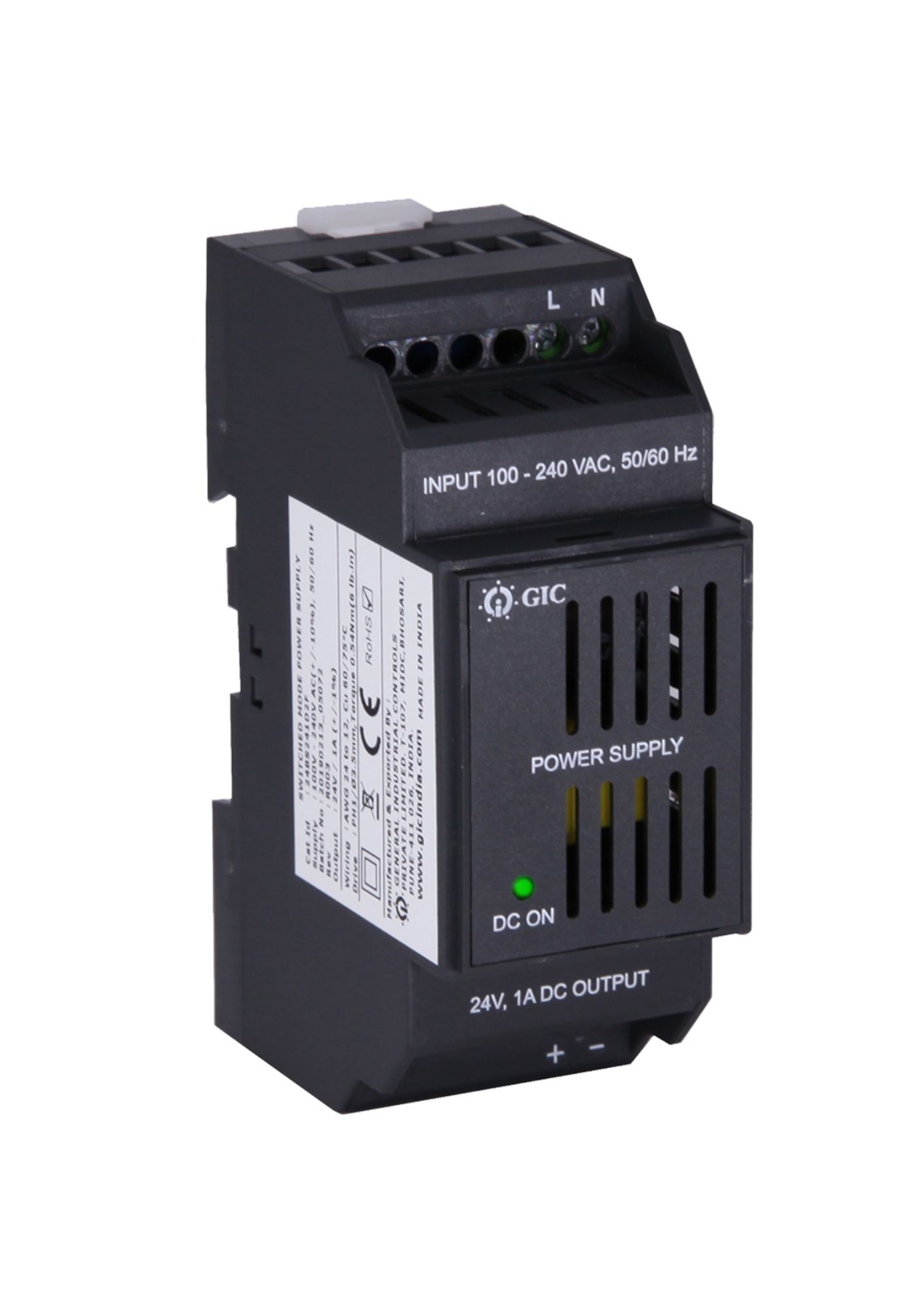

GIC 24BS241D2F, 24W, 100 - 240 VAC, 24 VDC / 1A, Switched Mode Power Supply (SMPS)
In stock
SKU
24BS241D2F
Special Price
₹823.95
Regular Price
₹1,831.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Supply Voltage | 100-240V AC |
| Supply Variation | -15% to +10% |
| Frequency | 50/60 Hz |
| Power Consumption @ No Load | < 0.3W Max. @ 115 VAC < 0.5W Max. @ 230 VAC |
| AC Current | 0.35A at 230VAC & 0.6A at 115VAC |
| Efficiency | > 85% |
| Leakage Current | < 0.2 µA / 230 VAC |
| Output Voltage | 24 VDC |
| Rated Current | 1A |
| Current Range | 0 - 1A |
| Rated Power | 24 W |
| Output Voltage Accuracy | ± 1% |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Ripple & Noise | < 150 mV (P-P) |
| Over Voltage Protection | 160% |
| Over Load Capacity | 120% ~ 175% |
| Continuous Open Circuit | Normal Operation |
| Over Current Protection | Voltage Drop |
| Continuous Short Circuit Protection | Auto Recovery after fault condition is removed |
| Start Up Time | 80 ms to 1 sec |
| Hold Up Time | 20 ms @110 VAC & 100 ms @230 VAC |
| Withstand Voltage | Input to Output 3 KV AC for 1 Minute, 5 mA |
| LED Indications | Green LED: Output ON |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -10°C to +70°C |
| Enclosure | Flame Retardant UL94-V0 |
| Dimension (W x H x D) (in mm) | 36 x 90 x 60 |
| Mounting | Base / DIN Rail |
| Certification | RoHS Compliant |
