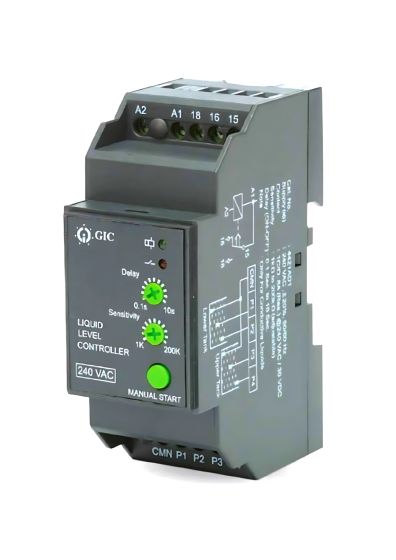

GIC 4421AD1, Liquid Level Controller, 240V AC, DIN Rail Mount
In stock
SKU
4421AD1
Special Price
₹1,271.90
Regular Price
₹1,817.00
GIC 4421AD1, Liquid Level Controller, 240V AC, DIN Rail Mount is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
| Parameters | Description |
| Cat. No. | 4421AD1 |
| Supply Voltage | 240VAC, ±20% |
| Frequency | 47Hz - 63Hz |
| Power Consumption (Max.) | 3VA |
| Conductive Sensor Probes | Stainless Steel SS304, 3 or 6 Nos |
| Sensor Length | 10 cm |
| Control Action Modes | Only Draining, Only Filling, Draining & Filling Simultaneous (One Tank or Two tanks) |
| Sensitivity | 1K to 200 K Ohm (Potentiometer adjustable) |
| Sensor Voltage & Current | 12 Vp-p, 100 Hz, < 1 mA |
| Sensor cable | Cable gauge (Min): 0.5 sq mm Tin coated, Cable dia (Min): 1.5mm Max Cable Length-1000m (For set value < 50%) Max Cable Length-300m (For set value 100%) Max capacitances of wire- 80 nF / km |
| Settable ON & OFF Delay Time | 0.5 sec to 10 sec |
| Manual Start Switch | If Lower tank water level is greater than Low level & upper tank water level is below High level then by pressing a switch Relay can be switched ON manually. |
| Output Control Mode | Relay ON/OFF |
| Contact Ratings | 1 C/O, 8A@250VAC, Resistive, Terminal 15-Pole, Terminal 16-NC, Terminal 18-NO |
| Utilization Category | AC-15: Rated Voltage (Ue): 120/240V, Rated Current (Ie): 3.0/1.5A DC-13: Rated Voltage (Ue): 24/125/250V, Rated Current (Ie): 2.0/0.22/0.1A |
| LED Indication | GREEN LED: Power ON, RED LED: Relay Output ON |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -10°C to +70°C |
| Relative Humidity | 5 to 95 % RH (non condensing) |
| Mounting | Base/DIN Rail |
| Dimension (W x H x D) (in mm) | 36 X 90 X 65 |
