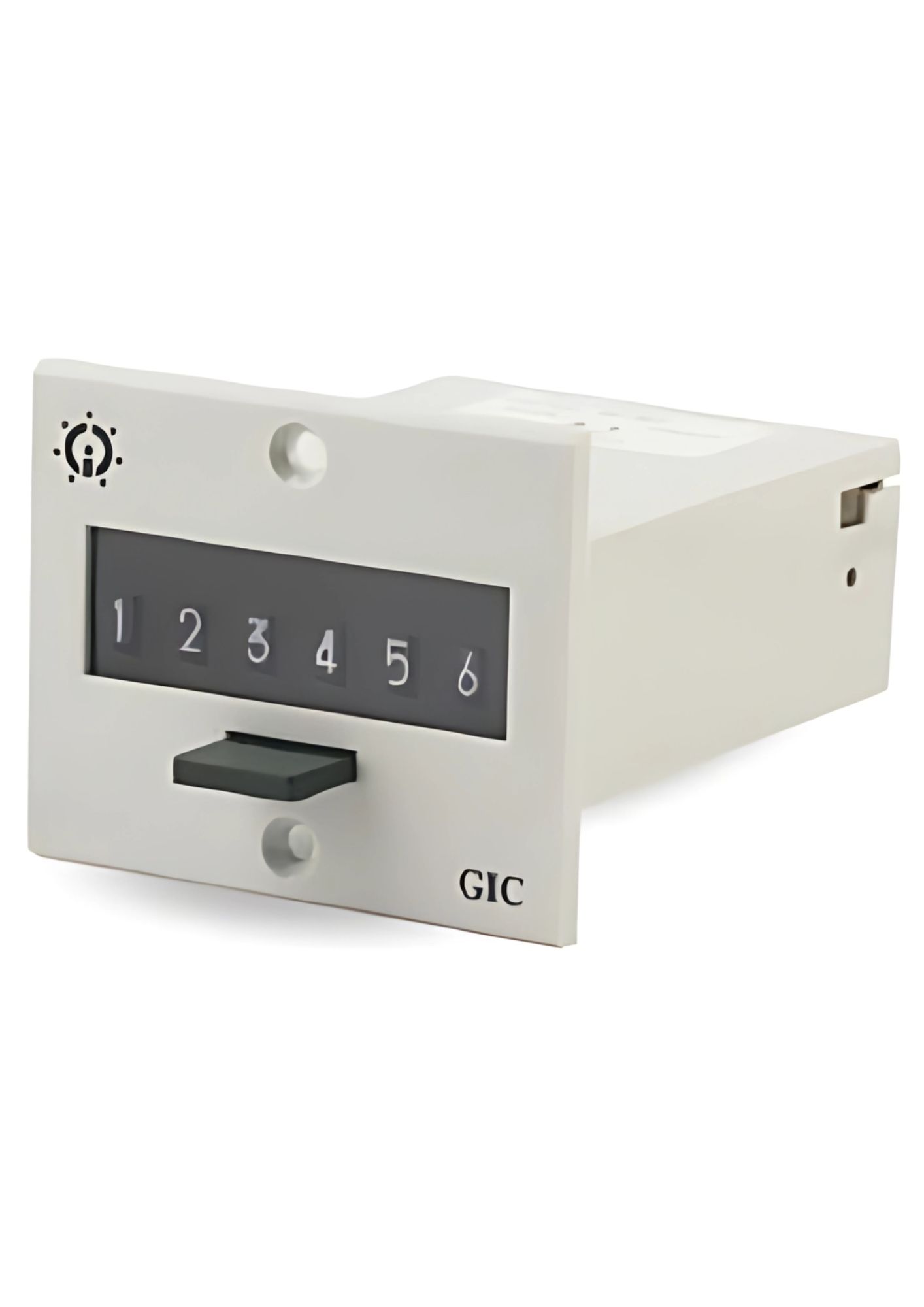

GIC CR-26 SD31A-385, 6 Digits, 24V DC Impulse Counter, Panel Mount
In stock
SKU
CR-26SD31A-385
Special Price
₹501.90
Regular Price
₹717.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Supply Voltage | 24V DC |
| Supply Variation | +10% to -15% |
| Power Consumption (Max.) | 2W |
| Figure | 6 Digit, White on Black, (4.0 mm) Height |
| Maximum Range | 9,99,999 |
| Operating Life | Beyond 100 million counts |
| Speed | 10 Hz Maximum (600 Counts / Minute) |
| Pulse Width | 50 ms minimum |
| Product Type | Resettable Counter |
| Bazel Type | Rectangular 2 Holes |
| Center Distance | 38.5 |
| Counting Method | One Pulse - One count (energizing - 1/2 count, de-energized - 1/2 count) |
| Continuous Energizing | Permissible |
| Reset | Manual push button Reset (Reset button can be locked or sealed to avoid accidental reset) |
| Operating Temperature | -5°C to +50°C (Non-Freezing) |
| Humidity (Non Condensing) | 45 to 85% (Rh) |
| Termination | 22 AWG, 105°C wire leads, 254 mm long / 2 way Terminal Strip |
| Type of Mounting | Panel, Bail & Base |
| Degree of Protection | IP 30 |
| Applications | Ideal for use in - Machine tools, Business Machines, Test Instruments, Amusement Instruments and Measuring devices |
