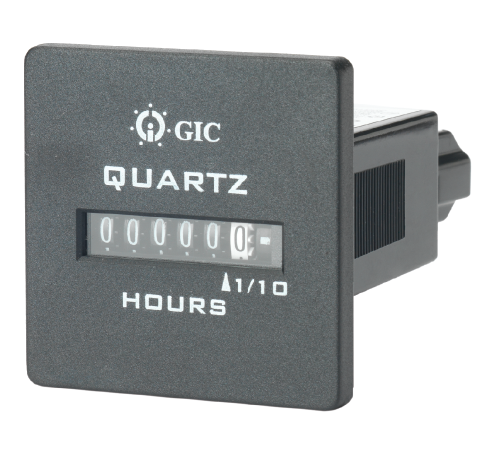

GIC HM36 LA25F1K, Non Resettable Hour Meter, 6 Digits Square Mount, 90~264V AC, Hour Meter
In stock
SKU
HM36LA25F1K
Special Price
₹647.50
Regular Price
₹925.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet - LA25F1 | |
|---|---|
| Cat. No. | LA25F1 |
| Supply Voltage ( ) | 90 - 264 VAC |
| Frequency | 50/60 Hz |
| Over Voltage & Reverse Polarity Protection | N A |
| Power Consumption (Max.) | 0.5 VA |
| Mounting Type | Bezel Square Mount |
| Register | 6 Digit (3.6mm) |
| Read Out | 99999.9 |
| Least Count | 1/10 h |
| Accuracy | ± 0.02% over entire range |
| Vibration | 10-80Hz with 20g max (SAE J1378) |
| Shock | 55g @ 9-13ms (SAE J1378) |
| Temperature | -40°C to +85°C |
| Humidity (Non Condensing) | 95% (Rh) |
| Mounting | Panel |
| Termination | ¼" [6.3] Spade Terminal |
| Degree of Protection | IP 66, SAE & NEMA 4X |
| Approvals | RoHS Compliant |
