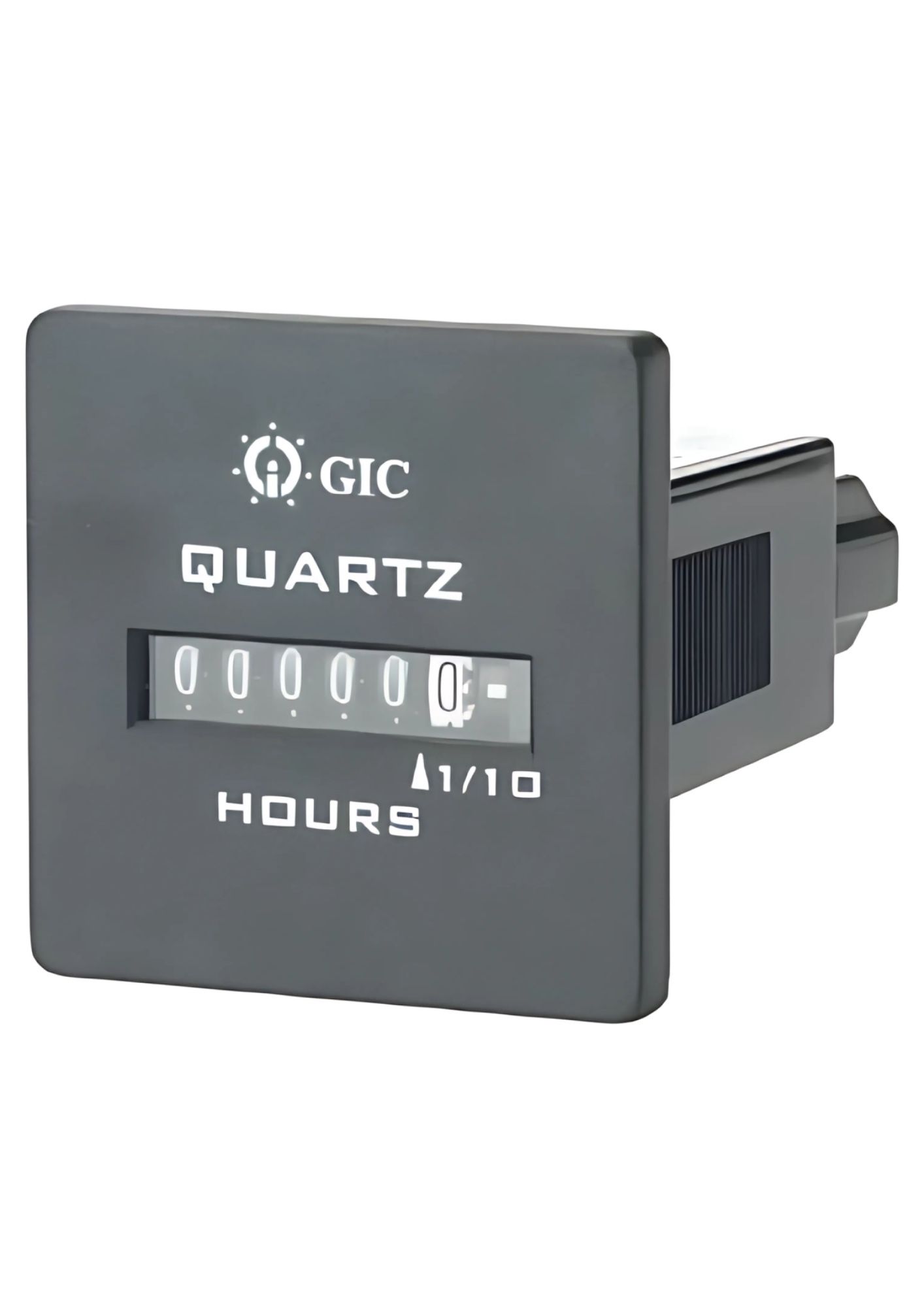

GIC HM 36, Non Resettable Hour Meter, 6 Digits Square Type, 90~264V AC
GIC HM 36, Non Resettable Hour Meter, 6 Digits Square Type, 90~264V AC

GIC HM 36, Non Resettable Hour Meter, 6 Digits Square Type, 90~264V AC

Be the first to review this product
In stock
SKU
HM 36 LA25F1(K)
₹500.00
(18% GST Extra)
Add to Wish List
  • Robust design with high degree of Accuracy and Compact size
  • Frequency independent for AC applications
  • Indicates operating time in hours and tenths with running indicators
  • Panel mountable
  • 6 Digit Non-Resettable with automatic recycle to zero
  • Wide supply voltage range: 90 - 264V AC
  • Shock & Vibration Proof
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Downloads
document HM_36-Datasheet (219.29 kB)
document CE_ROHS (415.08 kB)
document HM_36-UL_CERTIFICATE (463.14 kB)

Cat. No.

  LA25F1

Frequency

  50/60 Hz

Over Voltage & Reverse Polarity Protection

 NA

Power Consumption (Max.)

  0.5 VA

Bezel

  Square Mount

Register

  6 Digit (3.6mm)

Read Out

  99999.9

Least Count

  1/10 h

Accuracy

  ± 0.02% over entire range

Vibration

  10-80Hz with 20g max (SAE J1378)

Shock

  55g @ 9-13ms (SAE J1378)

Weight (unpacked)

  47g

Temperature

  -40° C to +85° C

Humidity (Non Condensing)

  95% (Rh)

Mounting

  Panel

Termination

  ¼" [6.3] Spade Terminal

Degree of Protection

  IP 66 (Front only with gasket)

More Information

More Information
Size 24 x 48 mm
Mount Panel Mount
Display LCD
