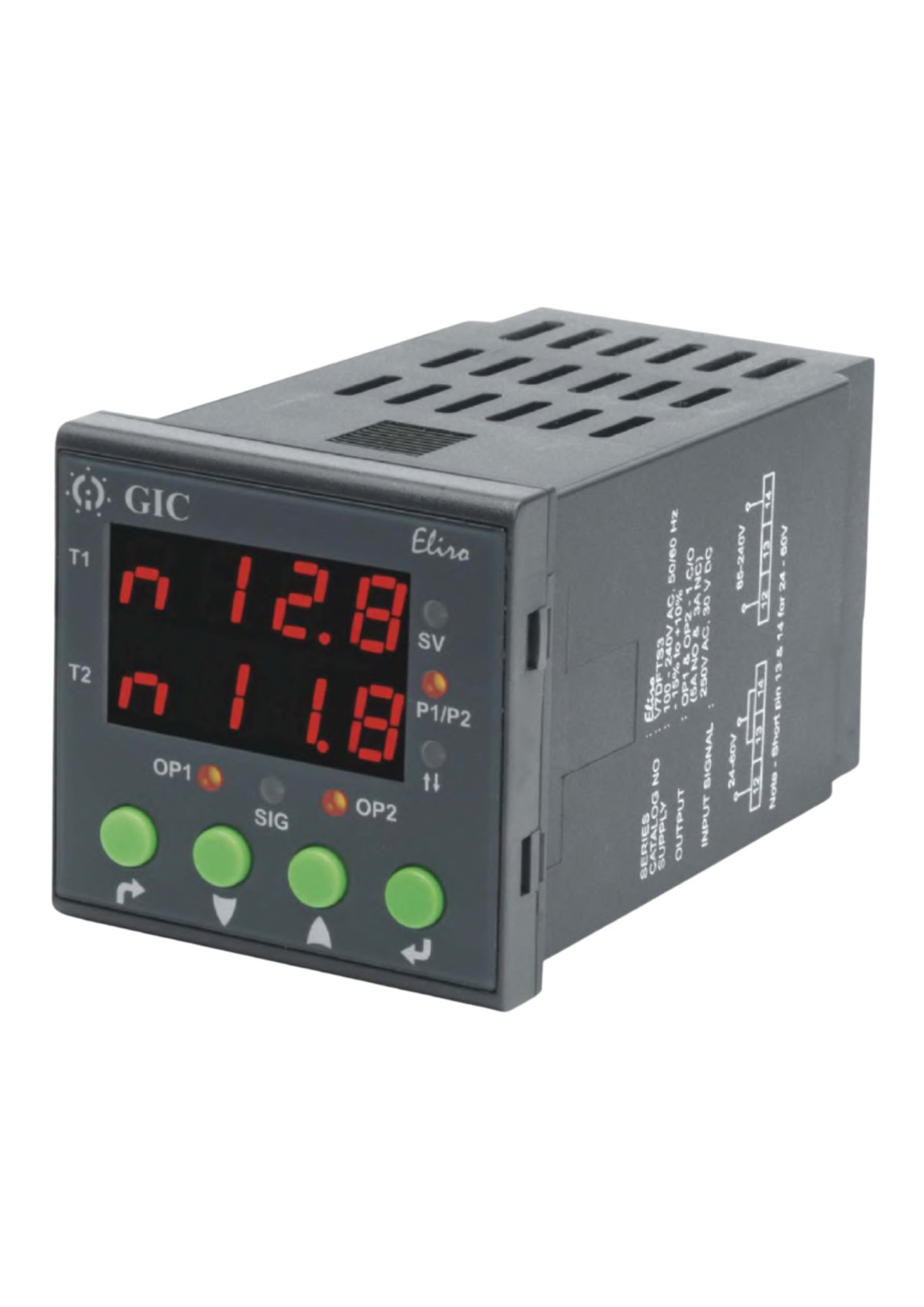

GIC Eliro V7DFTS3, 110 - 240 VAC, Multi Function Digital Timer - Eliro (35 Functions), 2 C/O, Programmable Digital Timer
In stock
SKU
V7DFTS3
Special Price
₹2,019.50
Regular Price
₹2,885.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Timer Description | Programmable Multi Function Digital Timer |
| Default Functions |
1) On delay 2) On delay constant supply type 2 3) On delay constant supply type 3 4) On delay (control switch resettable) 5) Signal on delay 6) Inverted signal on delay 7) Inverted signal on delay type 2 8) Signal off delay 9) Off delay const. supply type 2 10) Cyclic on/off 11) Cyclic off/on 12) Asymmetric cycle pulse start 13) Asymmetric recycler pulse start type 2 14) Signal on off delay 15) Signal on off delay type 2 16) Signal off/on (new) 17) Impulse on energizing |
| Supply Voltage ( ) | 110 - 240 VAC |
| Supply Variation | -20% to +10% (of ) |
| Frequency | 47 - 63 Hz |
| Power Consumption (Max.) | 9 VA |
| Timing Range | 0.1s to 999 days |
| Reset Time / Initiate Time | 200 ms (Max.) / 100 ms (Max.) |
| Input Signals / Signal Isolation | High Range: 85–265V AC / 100–265V DC, Low Range: 24–60V AC/DC / 2 KV |
| Signal Sensing Time / Wait Period | 50 ms (max.) / 100 ms @ Power On & for signal-based modes only |
| Timing Accuracy | ± 0.01% |
| Relay Output | 2 C/O |
| Contact Rating | 5A for NO & 3A for NC @ 250VAC/30VDC (Resistive) |
| Electrical Life | 1 × 105 |
| Mechanical Life | 5 × 106 |
| Utilization Category |
AC-15 / DC-13 250V AC / 2A, Cos Ø = 0.6, 85°C, 100000 Operations Ue rated voltage V – 24; Ie rated current A – 2.0 |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -10°C to +60°C |
| Humidity (Non Condensing) | Up to 95% RH |
| LED Indication |
SV (Red) - Set Value; P1/P2 (Red) - P1 Running; Up/Down (Red) - Up Counting; SG (Green) - Signal Present; OP1 (Red) - Relay OP1 ON; OP2 (Red) - Relay OP2 ON; |
| Dimension (W x H x D) | 48 × 48 × 92.5 mm |
| Mounting | Panel / Flush Mountable Base / DIN Rail with 11 Pin socket |
| Certification | RoHS Compliant |
| Degree of Protection | IP20 for Terminals, IP30 for Enclosure, IP40 for Front Side |
