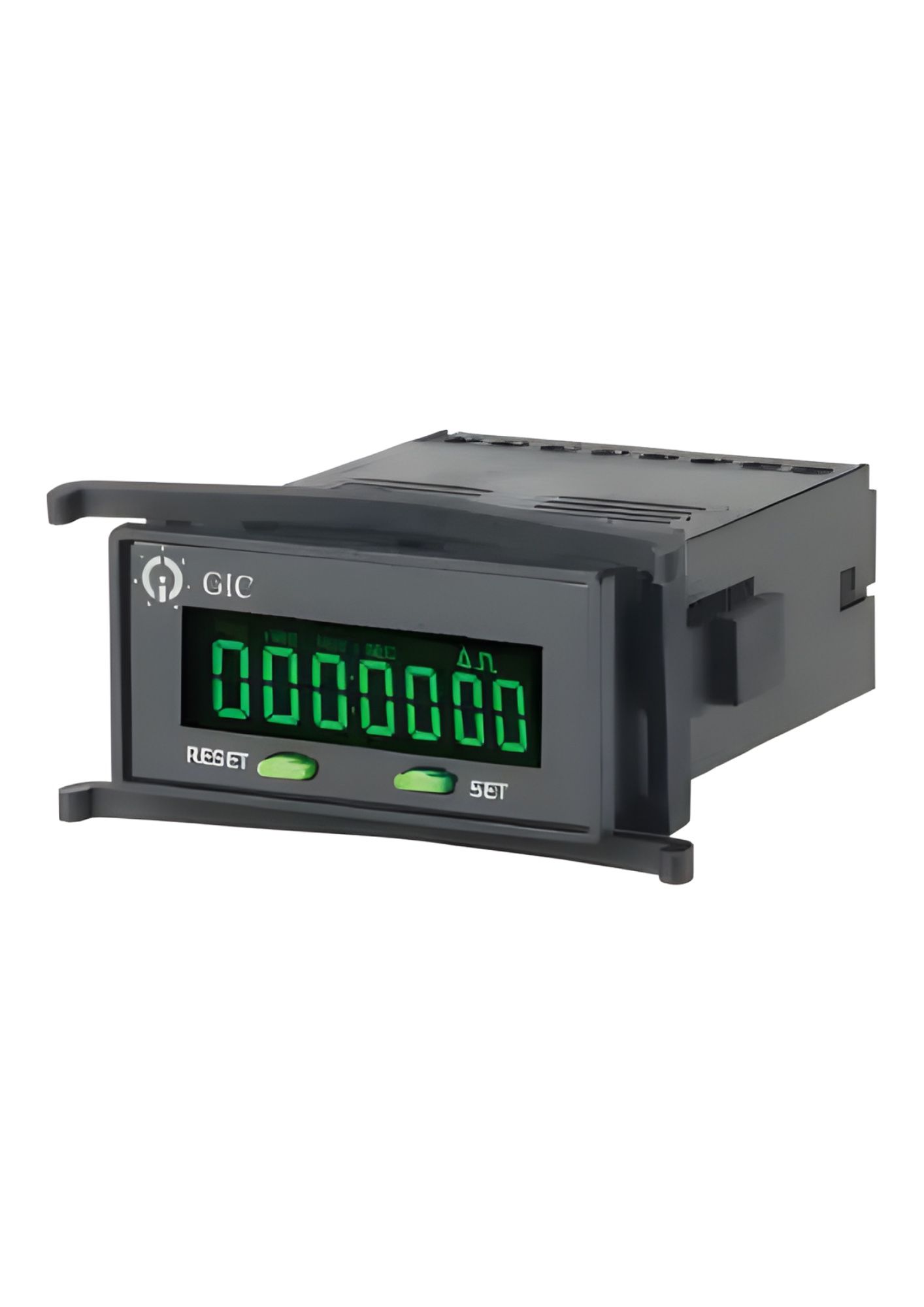

GIC Z2221N0G2FT00, 85 - 265 VAC/DC, Digital Hour Meter and Counter
Out of stock
SKU
Z2221N0G2FT00
Special Price
₹1,229.20
Regular Price
₹1,756.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Cat. No. | Z2221N0G2FT00 |
| Supply Voltage (@) | 85 - 265 VAC/DC |
| Power Consumption | 2 VA / 1 W |
| Supply Frequency | 50 / 60 Hz |
| Signal Voltage Range | 85 - 265 VAC & 100 - 265 VDC |
| Signal Isolation | 2 kV |
| Output Type | Relay: 1 NO, Contact Rating: 5 A (Res.) @ 250 VAC / 30 VDC Contact Material: Ag Alloy |
| Display | 7 digit LCD, 6.5 mm Height, 12 O’ Clock, Transmissive |
| Number of Keys | 2 (SET key & RST key) |
| Reset Function | Terminal: 80 ms Front: 3 Sec Auto Reset: - |
| Hour Meter Accuracy | ±2 sec per day |
| Hour Meter Range | Hrs:Min:Sec (999:59:59), Hrs:Min (99999:59), Hrs (9999999), Min (9999999), Sec (9999999) |
| Counter Accuracy | 100% |
| Counter Range | 1 to 9999999.999 |
| Decimal Point Position (max.) | 3 |
| Pre-scaler | 4 Digit |
| Switching Frequency (max.) | 10 Hz for AC and 40 Hz for DC |
| Signal Pulse Width (min.) | 50 ms ON / 50 ms OFF for AC 12.5 ms ON / 12.5 ms OFF for DC |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -10°C to +60°C |
| Humidity | 5 to 95% RH (without condensation) |
| Maximum Operating Altitude | 2000 m |
| Pollution Degree | II |
| Degree of Protection | Front: IP40; Terminals: IP20; Housing: IP30 |
| Enclosure Material | UL 94 V0 Plastic |
| Casing Color | Black |
| Mounting | Flush mounting on panel cut-out |
| Panel Cut-out | 22 mm x 44.8 mm |
| Operating Position | Horizontal |
| Termination Wire Size | 22-14 AWG (0.3 - 2.5 mm²) |
