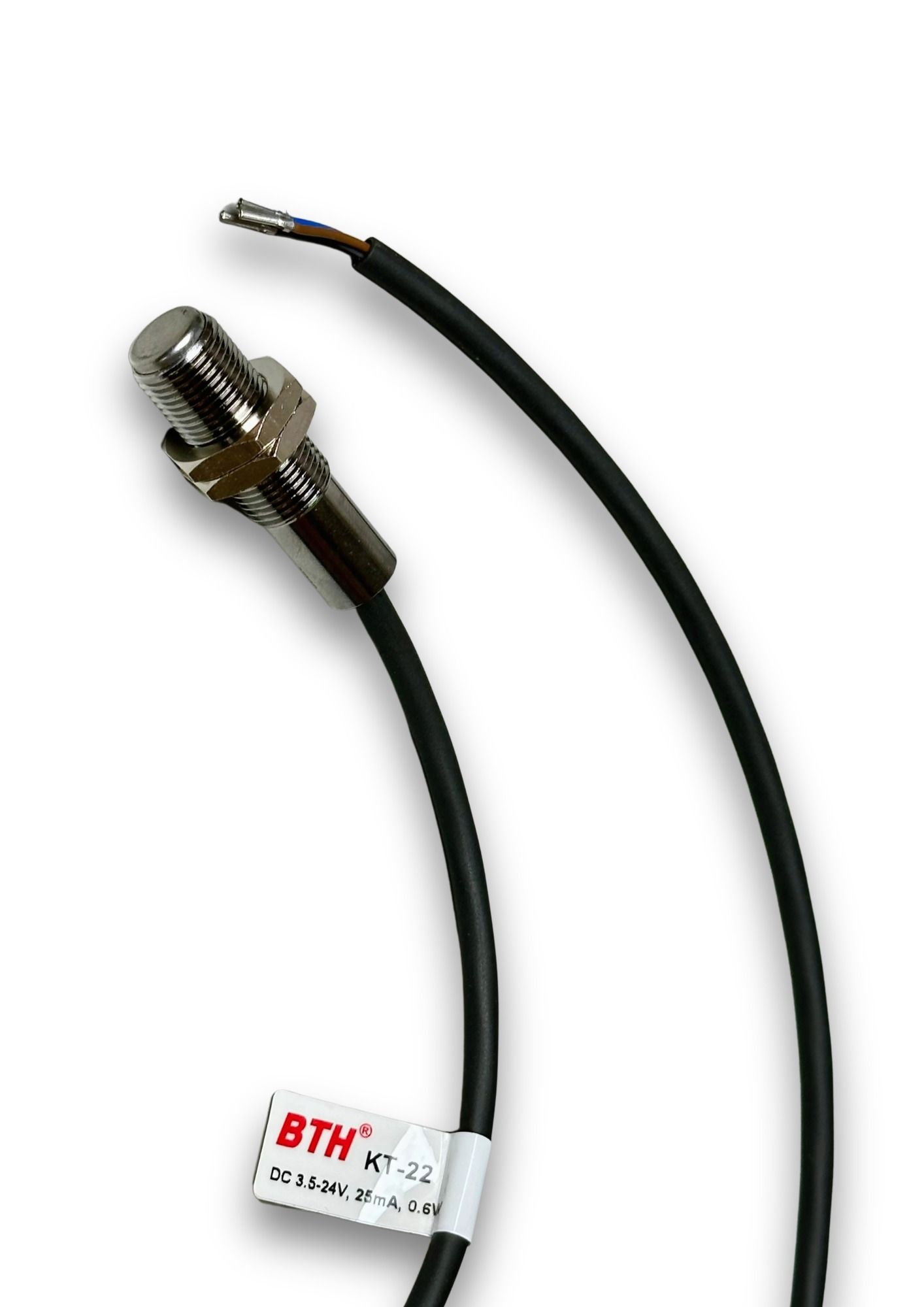

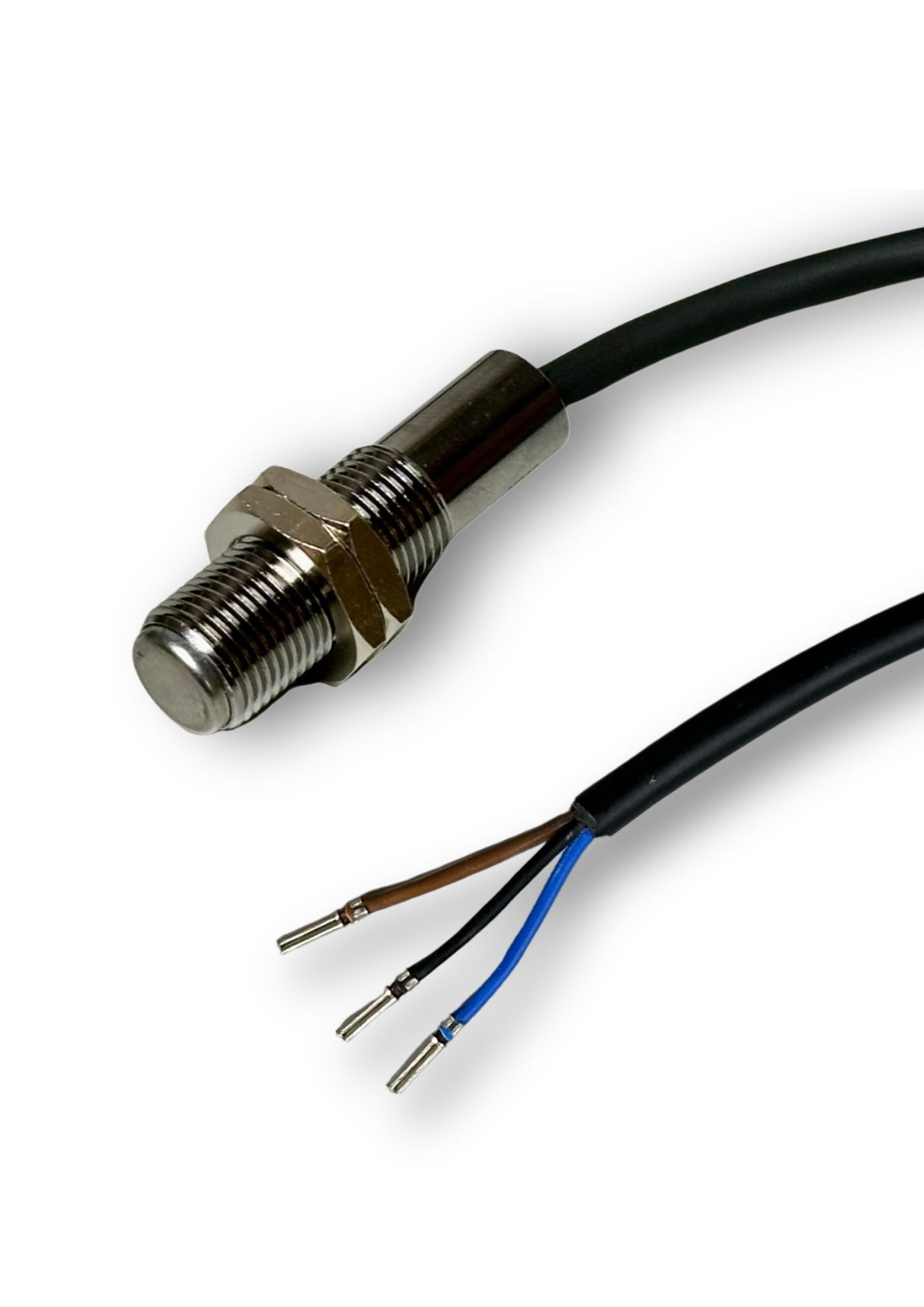

KT-22N-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders
In stock
SKU
KT-22N-1M
Special Price
₹2,801.50
Regular Price
₹4,310.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 3-Wire Type
- Switching Logic: Solid State Output, Normally Open
- Sensor Type: NPN Current Sinking
- Operating Voltage: 3.5~24 VDC
- Switching Current: 25 mA. max.
- Contact Rating: 0.6 W max.
- Current Consumption: 7 mA @24V DC max.
- Voltage Drop: 0.6V @25mA max.
- Leakage Current: 0.01 mA max.
- Cable: f4.5, 3C, PVC
- Response Frequency: 50K Hz
- Response Distance: 2 mm max.
- Temperature Range: -10 ~ 70 ˚C
- Shock: 50 G
- Vibration: 9 G
- Enclosure Classification: IEC 529 IP 67
- Protection Circuit: 2
