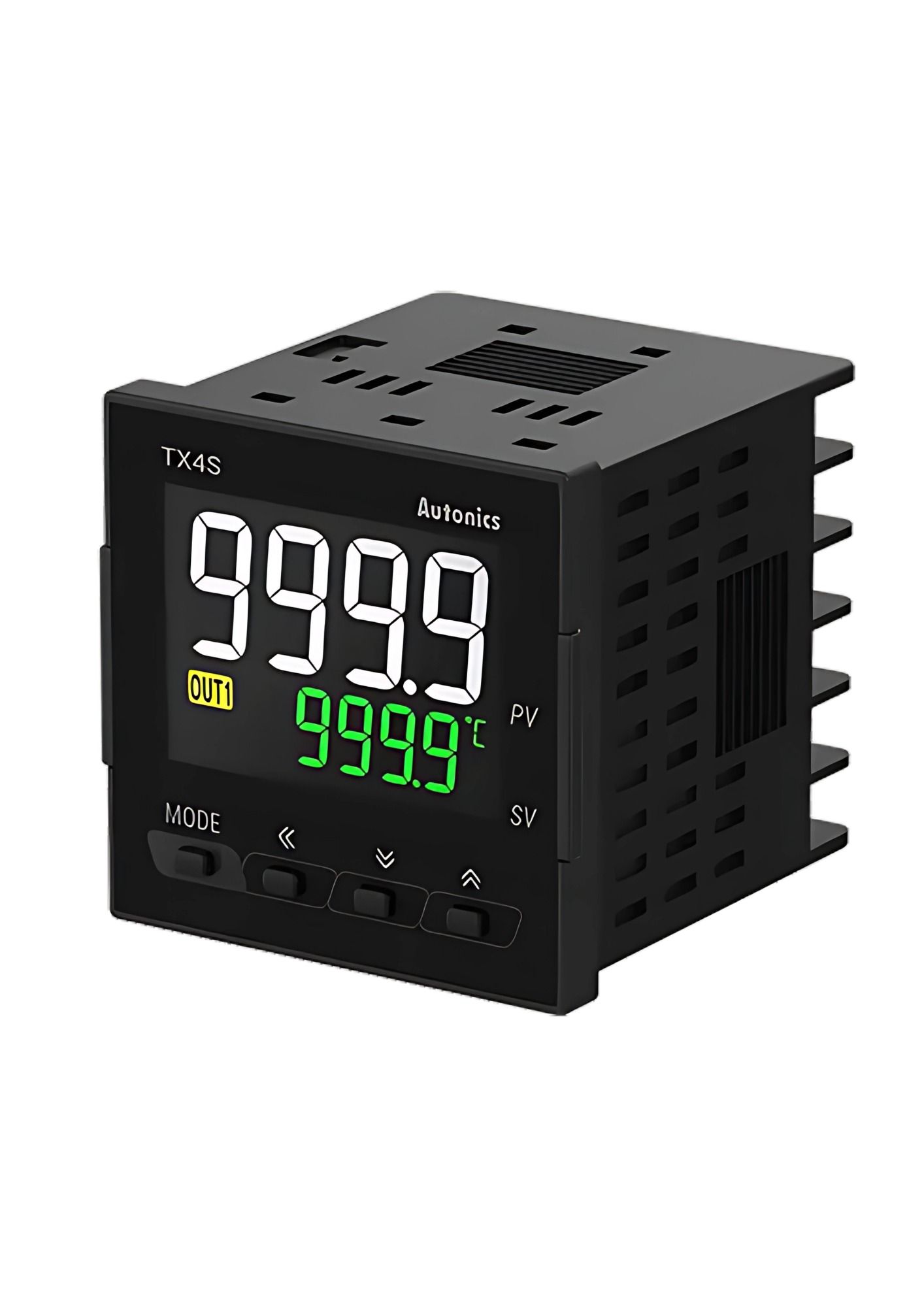

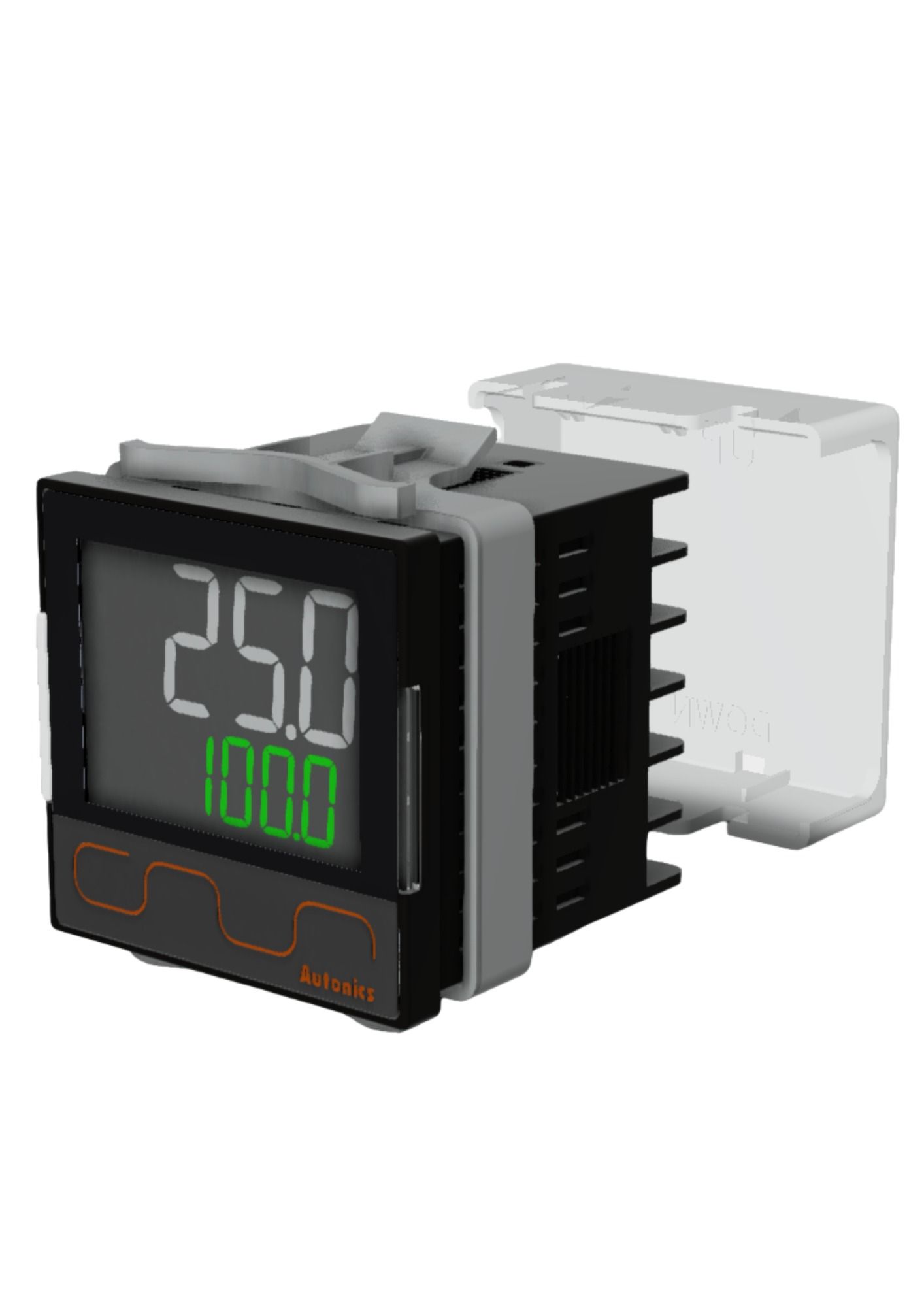

Autonics TX4S-14C, LCD Display PID Temperature Controller
Autonics TX4S-14C, LCD Display PID Temperature Controller Autonics TX4S-14C, LCD Display PID Temperature Controller

Autonics TX4S-14C, LCD Display PID Temperature Controller

In stock
SKU
TX4S-14C
Special Price ₹2,903.00 Regular Price ₹5,279.00
(18% GST Extra)
Add to Wish List
  • Display method : 4-digit 11-segment LCD
  • Control method : ON/OFF, P, PI, PD, PID
  • Input specification : Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100Ω, Cu50Ω
  • Sampling cycle : 50ms/li>
  • Control output : Current (DC0/4-20mA) or SSR drive (13VDC)[ON/OFF]
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display method 4-digit 11-segment LCD
  • Control method ON/OFF, P, PI, PD, PID
  • Input specification Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100Ω, Cu50Ω
  • Sampling cycle 50ms
  • Control output Current (DC0/4-20mA) or SSR drive (13VDC specialstring)[ON/OFF]
  • Option output Option output
  • Power supply 100-240VAC~ 50/60Hz
  • Protection structure IP50(front panel)
  • Display accuracy_RTD •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
  • Display accuracy_Thermocouple •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
  • Hysteresis(adjustable sensitivity) 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
  • Proportional band 0.1 to 999.9℃/℉
  • Integral time 0 to 9999 sec
  • Derivative time 0 to 9999 sec
  • Control period 0.5 to 120.0 sec
  • Manual reset 0.0 to 100.0%
  • Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
  • Insulation type Double insulation (dielectric strength between primary circuit and secondary circuit: 3kV)
  • Weight Approx. 146.1g(approx. 86.7g)
