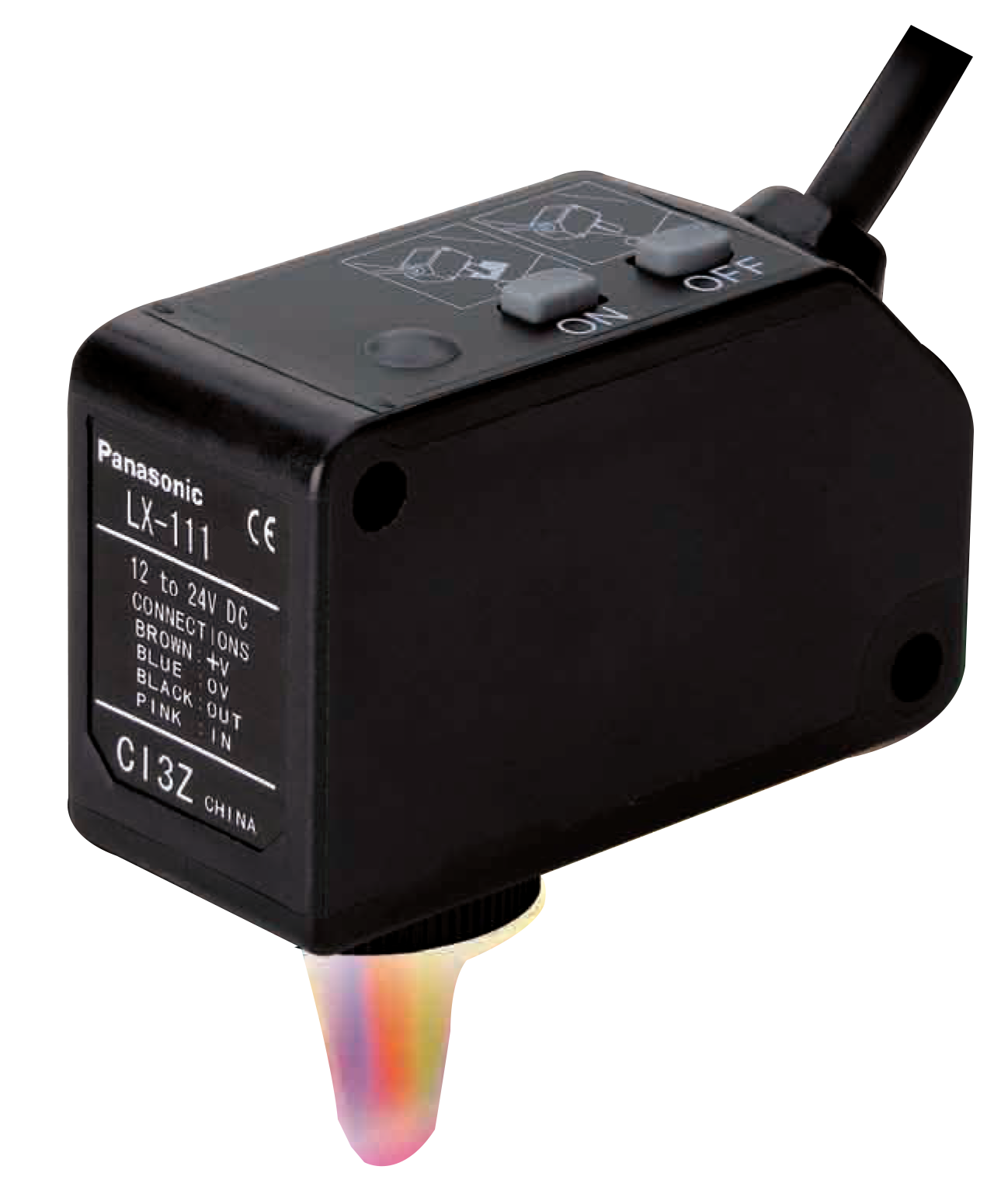

Panasonic LX-111, Mark Sensor, RGB Color Mark Photoelectric Sensor, NPN Output, 12–24 V DC.
In stock
SKU
LX-111
₹4,500.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Type: Cable type
- Model: LX-111
- Item: NPN output
- Sensing range: 10 ± 3 mm
- Spot size: 1 × 5 mm at a setting distance of 10 mm
- Supply voltage: 12 to 24 V DC ± 10%
- Power consumption: 850 mW or less
- Mode switching input: Low: 0 to +2 V, High: +5 V to +V or open
- Output: NPN open-collector transistor
- Response time: Mark mode: 45 μs or less, Color mode: 150 μs or less
- Operation indicator: Orange LED
- Protection: IP67
- Ambient temperature: -10 to +55 °C
- Ambient humidity: 35 to 85% RH
- Emitting element: Red, green, and blue LED
- Material: Enclosure: PBT, Operation key: Silicone rubber, Lens: PC
- Cable: 0.2 mm² 4-core cabtyre cable, 2 m
