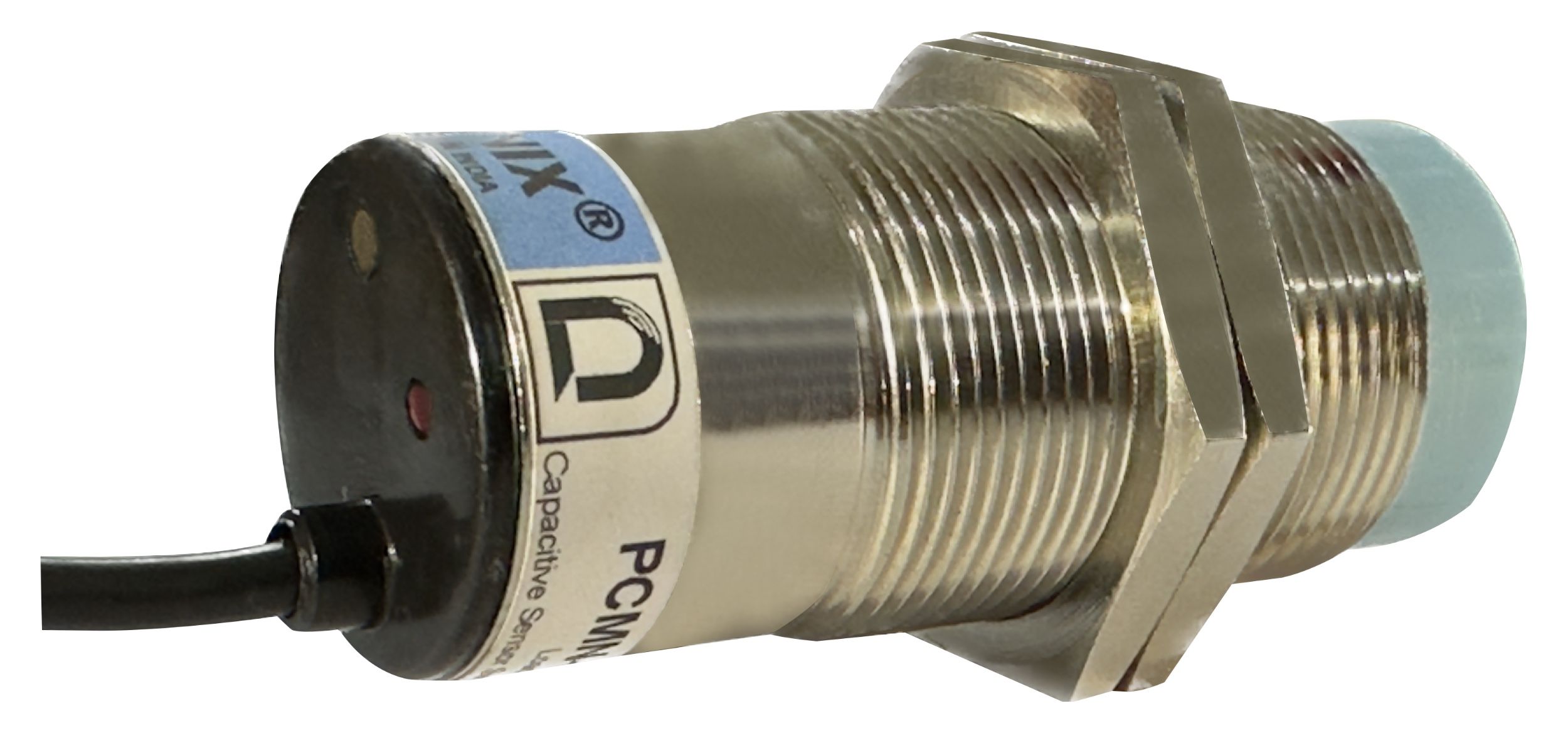

M30 Capacitive Proximity Sensor, AC 2 Wire, Sensing Range 1~20mm, AC NO, Made in India, AUTONIX PCMN-3020-A1-80
M30 Capacitive Proximity Sensor, AC 2 Wire, Sensing Range 1~20mm, AC NO, Made in India, AUTONIX PCMN-3020-A1-80

M30 Capacitive Proximity Sensor, AC 2 Wire, Sensing Range 1~20mm, AC NO, Made in India, AUTONIX PCMN-3020-A1-80

In stock
SKU
PCMN-3020-A1-80
Special Price ₹775.00 Regular Price ₹1,250.00
(18% GST Extra)
Add to Wish List
  • Non-contact presence sensing application
  • Cost-effective and comprehensive solution
  • Wide array of variations, ideal for a variety of applications
  • Reliable in the most arduous industrial environments
  • Where the application deands more from the sensor
  • Wide operating Voltage (AC models)
  • Adjustable sensing distance
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment



Model
PCMN-3020-A1-80
Diameter
M30
Sensing Range
1~20mm
Response freq.
25Hz
Differenttial travel
4% tp 20% of sensing distance
Length
80mm
Function
AC
Switching
NO
Connection
Pre wired 2mr PVC cable
Protection circuit
as per lP66 (lEC specification)
Mounting
Non Flush mountable
Supply voltage
20~250V AC
Voltage drop
max 1.5VDC
Output current
500mA
No load current
max 2mA
Housing Material
Brass-coated
Surface Material
PA12
Indicator
Operating Indicator (Red Light)
Ambient temp.
-25 to +70ºC (non-freezing condition)
Storage temp.
-30 to +80ºC (non-freezing condition)
Ambient humidity
35 to 95%RH
Protection circuit
Surge protection circuit, impulse protection
Standard detecting target
Material PVC
Factor 0.4
