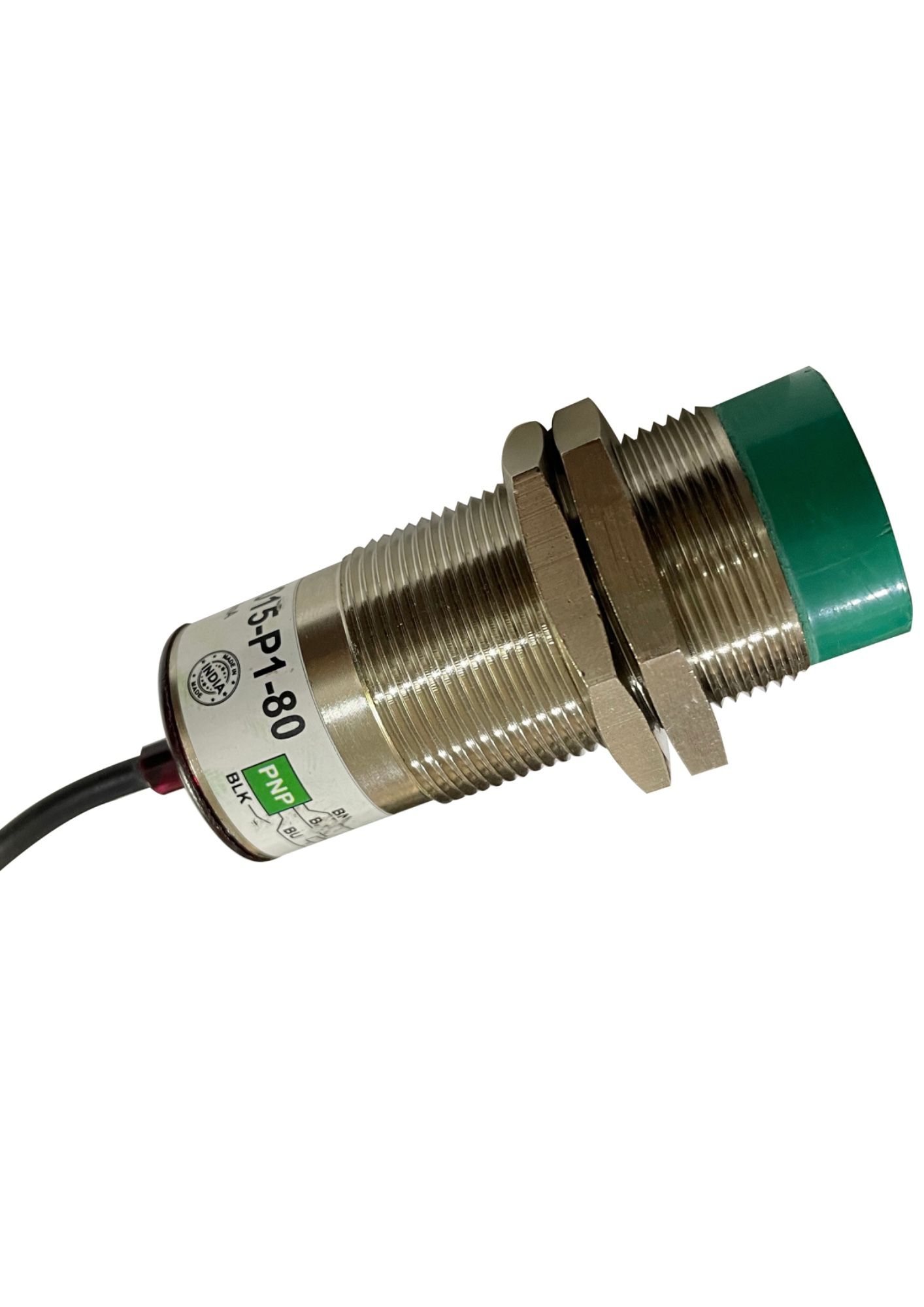

M30 Inductive Proximity Sensor, PNP NO, Sensing Range 15mm, Non Flush, Made in India, AUTONIX PUMN-3015-P1-80
M30 Inductive Proximity Sensor, PNP NO, Sensing Range 15mm, Non Flush, Made in India, AUTONIX PUMN-3015-P1-80

M30 Inductive Proximity Sensor, PNP NO, Sensing Range 15mm, Non Flush, Made in India, AUTONIX PUMN-3015-P1-80

In stock
SKU
PUMN-3015-P1-80
Special Price ₹356.50 Regular Price ₹575.00
(18% GST Extra)
Add to Wish List
  • Non-contact presence sensing application
  • Cost-effective and comprehensive solution
  • Standard length and short body models available
  • Wide array of variations, ideal for a variety of applications
  • Reliable in the most arduous industrial environments
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment



Order code PUMN-3015-P1-80
Diameter M30
Sensing Range 15mm
Response freq. 200Hz
Std. detecting target 30×30×1mm (lron)
Length 80mm
Function PNP
Switching NO
Connection Pre wired 2mr PVC cable
Protection circuit as per lP67(lEC specification)
Mounting Non Flush mountable
Supply voltage 5~40VDC (10~30VDC)
Voltage drop max 1.5VDC
Output current 300mA
No load current max 10mA at 12VDC
Housing Material  Brass-coated
Surface Material PA12
Indicator Operating Indicator (Red Light)
Ambient temp. -25 to +70ºC (non-freezing condition)
Storage temp. -30 to +80ºC (non-freezing condition)
Ambient humidity 35 to 95%RH
Protection circuit Reverse polarity protection, Surge protection circuit, Overload & short circuit protection
