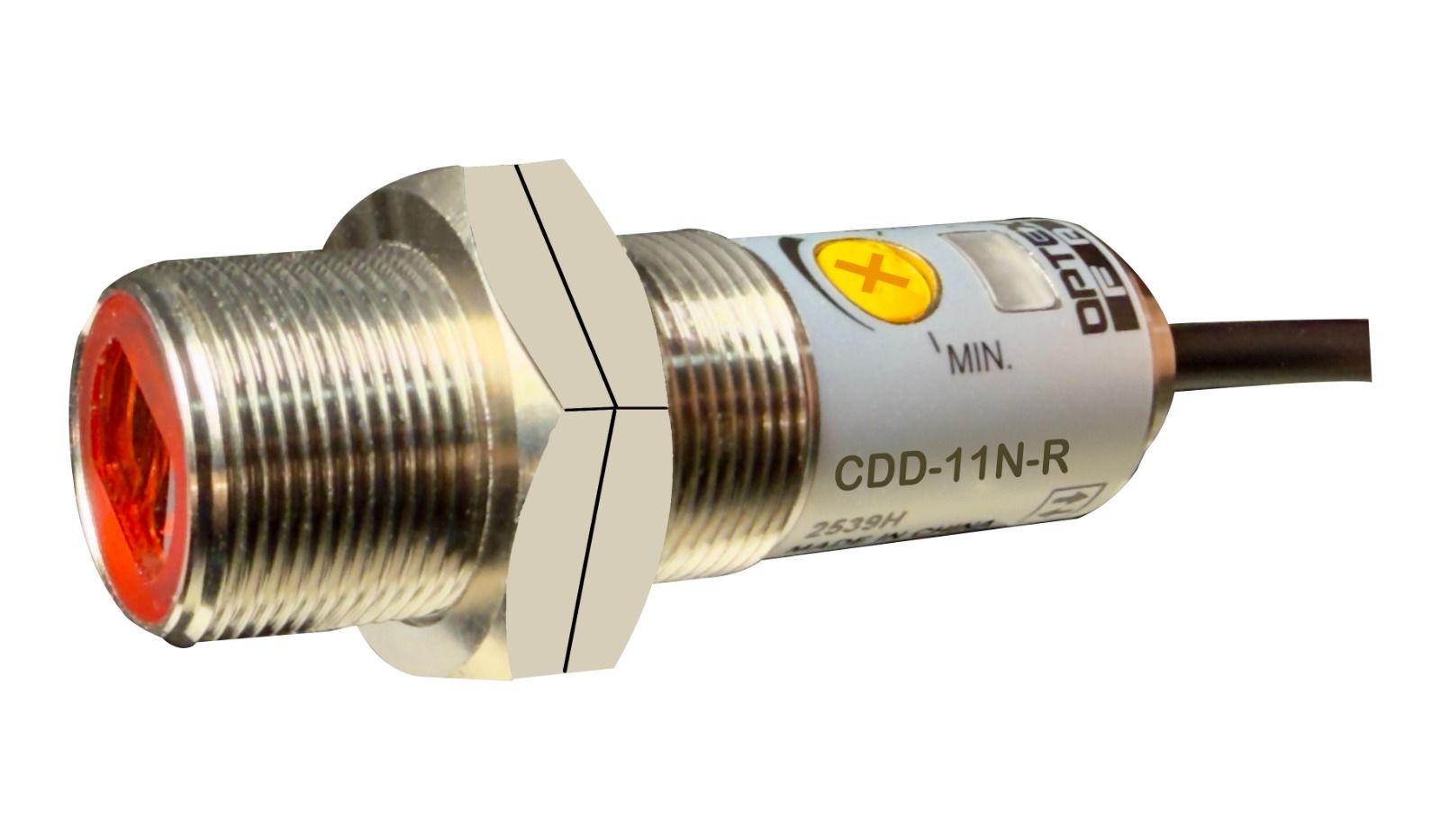

OPTEX Diffuse 110mm Short range Diffuse M18, NPN NO/NC
OPTEX Diffuse 110mm Short range Diffuse M18, NPN NO/NC OPTEX Diffuse 110mm Short range Diffuse M18, NPN NO/NC OPTEX Diffuse 110mm Short range Diffuse M18, NPN NO/NC OPTEX Diffuse 110mm Short range Diffuse M18, NPN NO/NC

OPTEX Diffuse 110mm Short range Diffuse M18, NPN NO/NC

Be the first to review this product
In stock
SKU
CDD-11N-R
Special Price ₹2,124.00 Regular Price ₹3,540.00
(18% GST Extra)
Add to Wish List
Feature:
  • Hotmelt molding improves vibration resistance up to 100 Hz for long operating hours.
  • IP67-rated watertight design supports use in wet and washdown environments.
  • Full-metal brass housing increases durability compared to plastic-tip designs.
  • Visible red LED spot beam enables fast and accurate alignment over long distances.
  • Front output indicator allows single-operator alignment from the emitter side.
    • Check Delivery Options at your Area

    FREE SHIPPING

    Free Shipping by Surface Only*

    SECURE PAYMENT

    100% Secure Payment

  • Sensing distance: 0 to 110mm
  • Light source: Red LED
  • Spot size (approx.): ø5mm
  • Supply voltage: 10 to 30 VDC, including ripple (P-P) 10%
  • Current consumption: 25mA max.
  • Response time: 500 µs max.
  • Control output: PNP open collector, 100 mA max., 30 VDC (residual voltage 1.8 V max.)
  • Output mode: Light ON / Dark ON, selectable by wiring
  • Sensitivity adjustment: 1-turn potentiometer
  • Indicators: Output indicator (Orange LED), Stability indicator (Green LED)
  • Connection type: 4-wire, 2 m cable
  • Applicable standards: EN 60947-5-2
  • Ambient temperature / humidity: −25 to +55°C, 35 to 85% RH (no condensation or freezing)
  • Ambient illuminance: Sunlight 10,000 lux max., Incandescent lamp 3,000 lux max.
  • Vibration resistance: 10 to 100 Hz, max. 1.5 mm (p-p), max. 150 m/s², 8 hours each in X, Y, Z directions
  • Shock resistance: Approx. 50 G (500 m/s²), 3 times each in X, Y, Z directions
  • Degree of protection: IP67
  • Material: Case: Brass (Ni plated), Front cover: PMMA
  • Applicable regulations (EMC): EMC Directive 2014/30/EU
  • Applicable regulations (Environment): RoHS 2011/65/EU, MIIT Order No. 32
