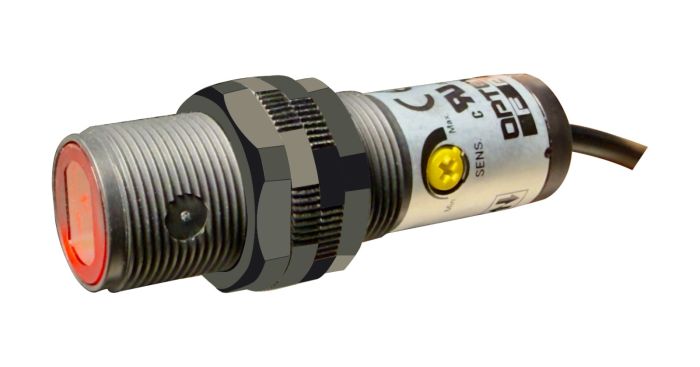

OPTEX Photosensor M18, Visible light 400mm Sensing, PNP NO/NC Plastic body
OPTEX Photosensor M18, Visible light 400mm Sensing, PNP NO/NC Plastic body OPTEX Photosensor M18, Visible light 400mm Sensing, PNP NO/NC Plastic body OPTEX Photosensor M18, Visible light 400mm Sensing, PNP NO/NC Plastic body OPTEX Photosensor M18, Visible light 400mm Sensing, PNP NO/NC Plastic body

OPTEX Photosensor M18, Visible light 400mm Sensing, PNP NO/NC Plastic body

Be the first to review this product
In stock
SKU
C2DP-40P
Special Price ₹2,124.00 Regular Price ₹3,540.00
(18% GST Extra)
Add to Wish List
Feature:
  • Custom ASIC with integrated power circuit reduces component count and protects against power-line electrical damage.
  • Silicon plastic potentiometer is IP67 sealed and resists water, oil, chemicals, and environmental heat.
  • Maximum hysteresis of 10% between black and white targets ensures stable and consistent sensing.
  • Easy alignment design allows up to 700 mm optical axis tolerance at 10 m, with bright visible LED.
    • Check Delivery Options at your Area

    FREE SHIPPING

    Free Shipping by Surface Only*

    SECURE PAYMENT

    100% Secure Payment

  • Sensing distance: 400 mm*
  • Spot size: Ø20 mm at 400 mm
  • Light source: Red LED
  • Supply voltage: 10 to 30 VDC including ripple (P-P) 10%
  • Current consumption: 20 mA max.
  • Hysteresis: –
  • Response time: 0.5 ms max.
  • Control output: NPN/PNP open collector, 100 mA max., 30 VDC max. (residual voltage max. 1.8 V / 100 mA max.)
  • Output mode: Light ON / Dark ON selectable by control wire
  • Distance adjustment: 1-turn potentiometer
  • Indicator: Output indicator (Orange LED) / Stability indicator (Green LED)
  • Ambient illuminance: Sunlight 10,000 lux, Incandescent lamp 3,000 lux max.
  • Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
  • Shock resistance: 500 m/s² (50 G), 3 times in each of the X, Y, and Z directions
  • Ambient temperature: Operating temperature −25 to +55°C (no freezing)
  • Storage temperature: −30 to +70°C
  • Ambient humidity / Storage humidity: Ambient humidity 35 to 85% RH / Storage humidity 35 to 95% RH
  • Degree of protection / Materials: IEC directive IP67; Plastic housing: PBT (glass included); Front cover, lens: PMMA
