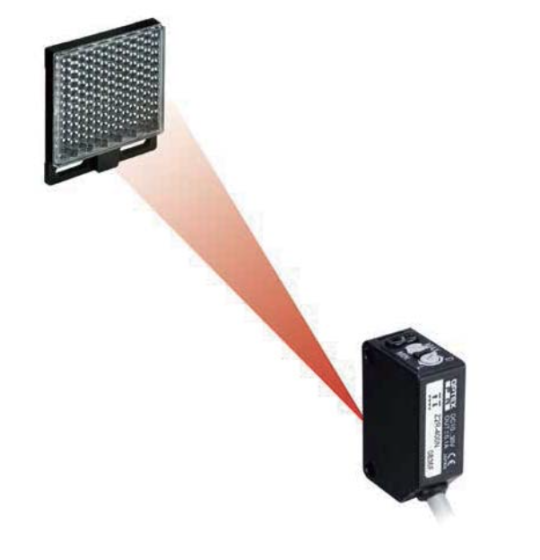

OPTEX Retro Reflective Small 4.4mtr,PNP
In stock
Special Price
₹1,980.00
Regular Price
₹3,300.00
Check Delivery Options at your Area
Sensing distance:0.01 to 4.4 mtr
Light source: 4 element red LED, wavelength 640 nm
Spot size:Approx. ø220 mm(at distance of 4.4 m)
Response time: 500 µs or less
Distance adjustment: 1-turn potentiometer
Indicators: Output indicator (orange LED), Stability indicator (green LED)
Control output: NPN/PNP type open collector, max. 100 mA / 30 VDC
Output mode: Light ON / Dark ON selection switch
Connection type: Cable type: cable length 2 m, Ø3.8 mm; Connector type: M8, 4-pin
Supply voltage: 10 to 30 VDC, including 10% ripple (p-p)
Current consumption: 13 mA or less
Applicable regulations (EMC): EMC Directive (2014/30/EU)
Applicable regulations (Environment): RoHS Directive (2011/65/EU), China RoHS (MIIT Order No. 32)
Applicable standards: EN 60947-5-2, IEC 60825-1
NRTL certification: UL Recognized Components, Proximity Switch Certified for US and Canada
Company standards: Noise resistance: Feilen Level 4 cleared
Ambient temperature / humidity: −25 to +55°C (no freezing) / 35 to 85% RH (no condensation)
Ambient illuminance: Sunlight 10,000 lx; Incandescent lamp 3,000 lx
Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Shock resistance: Approx. 100 G (1000 m/s²), 3 times in each of the X, Y, and Z directions
Degree of protection: IP67
Material: Housing: ABS (glass fiber filled), Front cover: PMMA
Included accessories:Mounting bracket:BEF-W100-B *3 Reflector: V-61
