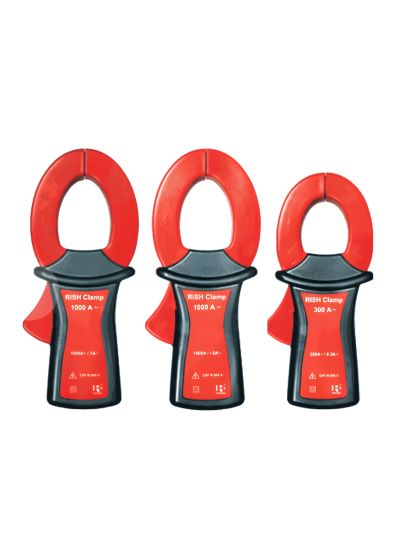

RISH Clamp-on CT 1000A/5A, Clamp-on CT for AC Current Measurement
In stock
SKU
Rish Clamp-on CT-1000A/5A AC
Special Price
₹2,034.50
Regular Price
₹3,130.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Parameter | Specification |
|---|---|
| Type | 1000A / 5A |
| Description / Application | The current transformers are used for electrically isolated measurement of alternating current within broad range. It is possible to measure AC current without interrupting the current conducting cable and bus bars via hard wired leads with contact protected plugs. |
| Nominal Primary Current | 1–1000A AC |
| Output Signal | mA AC / 5A AC |
| Used With | Rish Multi Series |
| Transmission Ratio (Input : Output) | 200 : 1 |
| Accuracy / Max. Error | Class 1 (2.5 VA) (for current range from 1A to 1000A, 50Hz) |
| Max. Operating Voltage | CAT III 600 V as per IEC 61010 |
| Frequency Range | 40Hz – 1kHz |
| Jaw Opening / Conductor Diameter | 43mm / diameter 43mm |
| Dimensions (W × H × D) | 92 × 39 × 220 mm |
| Cable Length | 1.5 meter |
