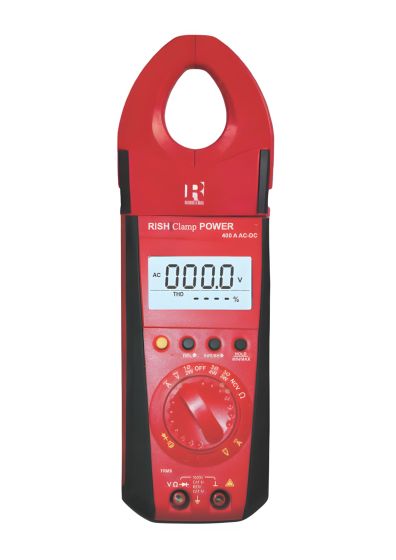

Rish Clamp Power 400A AC/DC, Measurement of AC-DC Power and Power Quality Parameters
Rish Clamp Power 400A AC/DC, Measurement of AC-DC Power and Power Quality Parameters

Rish Clamp Power 400A AC/DC, Measurement of AC-DC Power and Power Quality Parameters

Be the first to review this product
In stock
SKU
RISH Clamp Power 400A AC/DC
Special Price ₹8,703.50 Regular Price ₹13,390.00
(18% GST Extra)
Add to Wish List
  • Large Jaw Opening
  • Inrush Current Measurement
  • DATA Hold Function
  • MIN, MAX Function
  • Backlit
  • Non Contact Voltage Detection
  • Three Phase Power Measurement
  • Dual Display
  • LPF Mode
  • TRMS Measurement
  • Auto Power OFF
  • Continuous ON Mode
  • Low Battery Indication
  • Double molded Cover for soft touch and firm grip of the Instrument
  • Protection from dust and water
  • Applicable International Safety standards
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Measuring Function Measuring Range Resolution Intrinsic Error of Digital Display at Reference Condition Overload Capacity Overload Value Overload Duration
V DC 999.9 V 0.1 V ±(0.5% of rdg + 5 dgt) 1000 V DC/AC eff/rms Sine wave Continuously
V ~ 999.9 V 0.1 V ±(0.75% of rdg + 5 dgt) —
V AC/DC 999.9 V 0.1 V ±(1.25% of rdg + 10 dgt) —
LPF V~ 999.9 V 0.1 V 50–60 Hz: ±(0.75% of rdg + 5 dgt)
61–400 Hz: ±(5.0% of rdg + 5 dgt)		 —
Power Clamp 400A DC 99.99 A / 400 A 0.01 A / 0.1 A Display value <1000 add 10 dgt:
±(1.5% of rdg + 0.2A)
±(1.5% of rdg + 5 dgt)		 440 A AC/DC for Power Clamp 400A — Continuously
Power Clamp 400A AC 99.99 A / 400 A 0.01 A / 0.1 A Display value <1000 add 10 dgt:
±(3% of rdg + 0.4A)
±(3% of rdg + 10 dgt)		 —
Power Clamp LPF 400A AC 99.99 A / 400 A 0.01 A / 0.1 A 50–60 Hz: ±(1.5% of rdg + 0.3A / 5 dgt)
61–400 Hz: ±(5.0% of rdg + 5 dgt)		 —
Active Power2) 9.999 kW / 99.99 kW / 999.9 kW / 9999 kW 1 W / 10 W / 100 W / 1 kW ±(2% of rdg + 5 dgt)1) 1000 V DC/AC
1100 A AC/DC (1000A Clamp)
440 A AC/DC (400A Clamp)		 — Continuously
Reactive Power2) 9.999 / 99.99 / 999.9 / 9999 kVAr 1 / 10 / 100 / 1000 VAr — —
Apparent Power2) 9.999 / 99.99 / 999.9 / 9999 kVA 1 / 10 / 100 / 1000 VA — —
Horse Power2) 9.999 / 99.99 / 999.9 / 9999 hp 0.001 / 0.01 / 0.1 / 1 hp — —
kWh2) 9.999 / 99.99 / 999.9 / 9999 kWh 0.001 / 0.01 / 0.1 / 1 kWh ±(3% of rdg + 5 dgt) —
Ahr 999.9 Ahr 0.1 Ahr ±(3% of rdg + 5 dgt) 1000 V DC/AC
1100 A (1000A Clamp)
440 A (400A Clamp)		 —
Phase Angle2) 0.0° – 360.0° 0.1° ±3° —
Power Factor2) -1…0…1 0.001 — —
Harmonics (RMS & %)3) 1–13: ±(3% of rdg + 10 dgt)
14–49: ±(5% of rdg + 20 dgt)		 0.1V / 0.1A / 0.1% — —
THD3) 0–99.9% 0.1% ±(3% of rdg + 20 dgt) —
DF3) 0–99.9% 0.1% ±(3% of rdg + 20 dgt) —
Crest Factor3) 1.0–2.9 / 3.0–5.0 0.1 ±(2% of rdg + 3 dgt)
±(3% of rdg + 5 dgt)		 Continuously
Power Clamp 400A Peak 560 A / 1000 V 1 A / 1 V ±(3% of rdg + 3 dgt) —
Power Clamp 400A Inrush4) 99.99 A / 400 A 0.01 A / 0.1 A ±(3% of rdg + 0.3A)
±(3% of rdg + 5 dgt)		 —
Resistance 9999 Ω 1 Ω ±(0.5% of rdg + 5 dgt) 1000 V DC/AC eff/rms Sine wave — 10 Secs
Continuity Below 40 Ω 1 Ω ±(0.5% of rdg + 5 dgt) —
Diode 0–2.2 V 0.001 V ±(0.5% of rdg + 5 dgt) —
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Rish Clamp Power 400A AC/DC, Measurement of AC-DC Power and Power Quality Parameters
Your Rating
Downloads
document RISH Clamp Power 400A AC/DC (1.36 MB)
