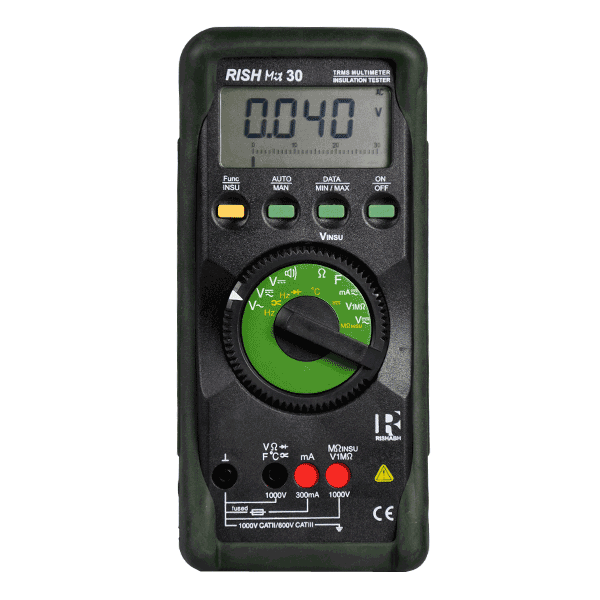

Rishabh RISH MIT 30, Analog Digital Multimeter with Insulation Resistance Measurement
Rishabh RISH MIT 30, Analog Digital Multimeter with Insulation Resistance Measurement

Rishabh RISH MIT 30, Analog Digital Multimeter with Insulation Resistance Measurement

Be the first to review this product
Out of stock
SKU
RISH MIT 30
Special Price ₹8,752.25 Regular Price ₹13,465.00
(18% GST Extra)
  • Insulation resistance measurement up to 3GΩ
  • Root Mean Square value with distorted waveform
  • AC Current measurement with clip-on sensor
  • Min/Max Function
  • Temperature measurement
  • Auto Power Off, Continuity test
  • AUTO and MANUAL ranging modes
  • Indication of negative values on the analog scale
  • Protection from dust and water
  • Applicable International Safety standards
  • Signaling in the case of a blown fuse
  • Automatic blocking socket (ABS)
  • Interface and software RISH com 100
  • Analog Scale
  • Continuous On Mode, DATA Hold Function
  • NULL ZERO Correction for Resistance
  • NULL ZERO Correction for Capacitance
  • Diode Measurement
  • Display with Backlit

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Measuring Function Measuring Range Resolution Input Impedance / No-Load Voltage Intrinsic Error ± (% of rdg + digit) Overload Value Overload Duration
V DC 30.00 mV 10 μV >10 GΩ // <40 pF 0.5 + 3 1000 V DC / AC rms 10 sec
300.0 mV 100 μV >10 GΩ // <40 pF 0.5 + 3
3.000 V 1 mV 11 MΩ // <40 pF 0.25 + 1
30.00 V 10 mV 10 MΩ // <40 pF 0.25 + 1
300.0 V / 1000 V 100 mV / 1 V 10 MΩ // <40 pF 0.25 + 1
V AC (Sine, rms) 3.000 V 1 mV 11 MΩ // <40 pF 1.0 + 3 (>10 digits) 1000 V AC rms 10 sec
30.00 V 10 mV 10 MΩ // <40 pF 1.0 + 3 (>10 digits)
300.0 V 100 mV 10 MΩ // <40 pF 1.0 + 3 (>10 digits)
1000 V 1 V 10 MΩ // <40 pF 1.0 + 3 (>10 digits)
V AC + DC 3.000 V 1 mV 11 MΩ // <40 pF 1.0 + 3 (>10 digits) 1000 V 10 sec
300.0 V 100 mV 10 MΩ // <40 pF 1.0 + 3 (>10 digits)
1000 V 1 V 10 MΩ // <40 pF 1.0 + 3 (>10 digits)
A AC (with Clamp) 30 / 300 A 10 / 100 mA – 0.5 + 5 – –
A DC 300.0 μA 100 nA 15 mV 0.5 + 5 (>10 digits) 0.36 A Continuously
3.000 mA 1 μA 150 mV 0.5 + 2
30.00 mA 10 μA 650 mV 0.5 + 5 (>10 digits)
300.0 mA 100 μA 1 V 0.5 + 5
A AC + DC 3.000 mA 1 μA 150 mV 1.5 + 4 (>10 digits) 0.36 A Continuously
300.0 mA 100 μA 1 V 1.5 + 4 (>10 digits)
Ω 30.00 Ω 10 mΩ Max. 3.2 V 0.5 + 3 1000 V DC / AC rms 10 sec
300.0 Ω 100 mΩ Max. 3.2 V 0.5 + 3
3.000 kΩ 1 Ω Max. 1.25 V 0.4 + 1
30.00 kΩ 10 Ω Max. 1.25 V 0.4 + 1
300.0 kΩ 100 Ω Max. 1.25 V 0.4 + 1
3.000 MΩ / 30.00 MΩ 1 kΩ / 10 kΩ Max. 1.25 V 0.6 + 1 / 2.0 + 1
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Rishabh RISH MIT 30, Analog Digital Multimeter with Insulation Resistance Measurement
Your Rating
Downloads
document RISH MIT 30 Datasheet (194.45 kB)
document RISH MIT 30 User Manual (4.80 MB)
