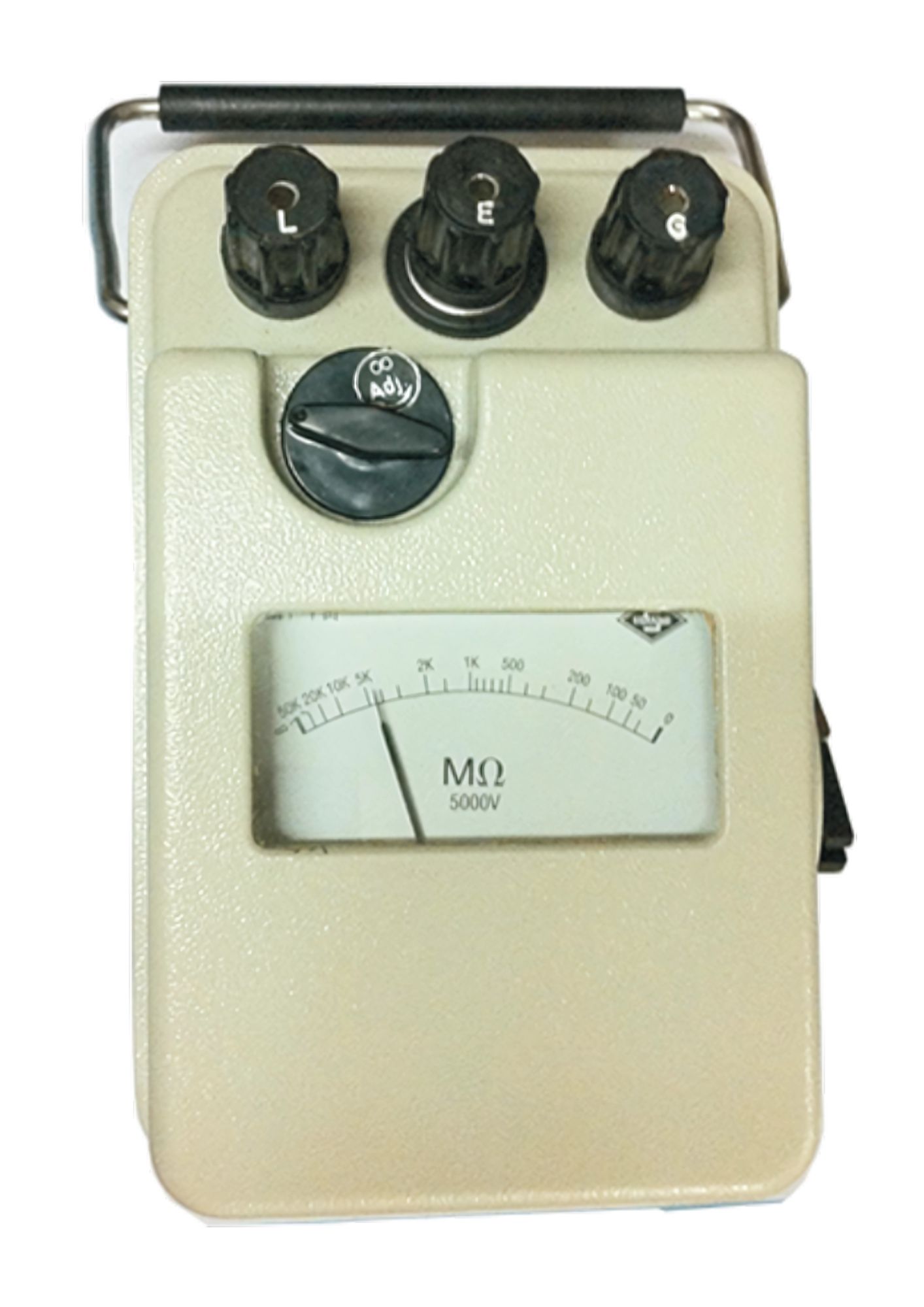

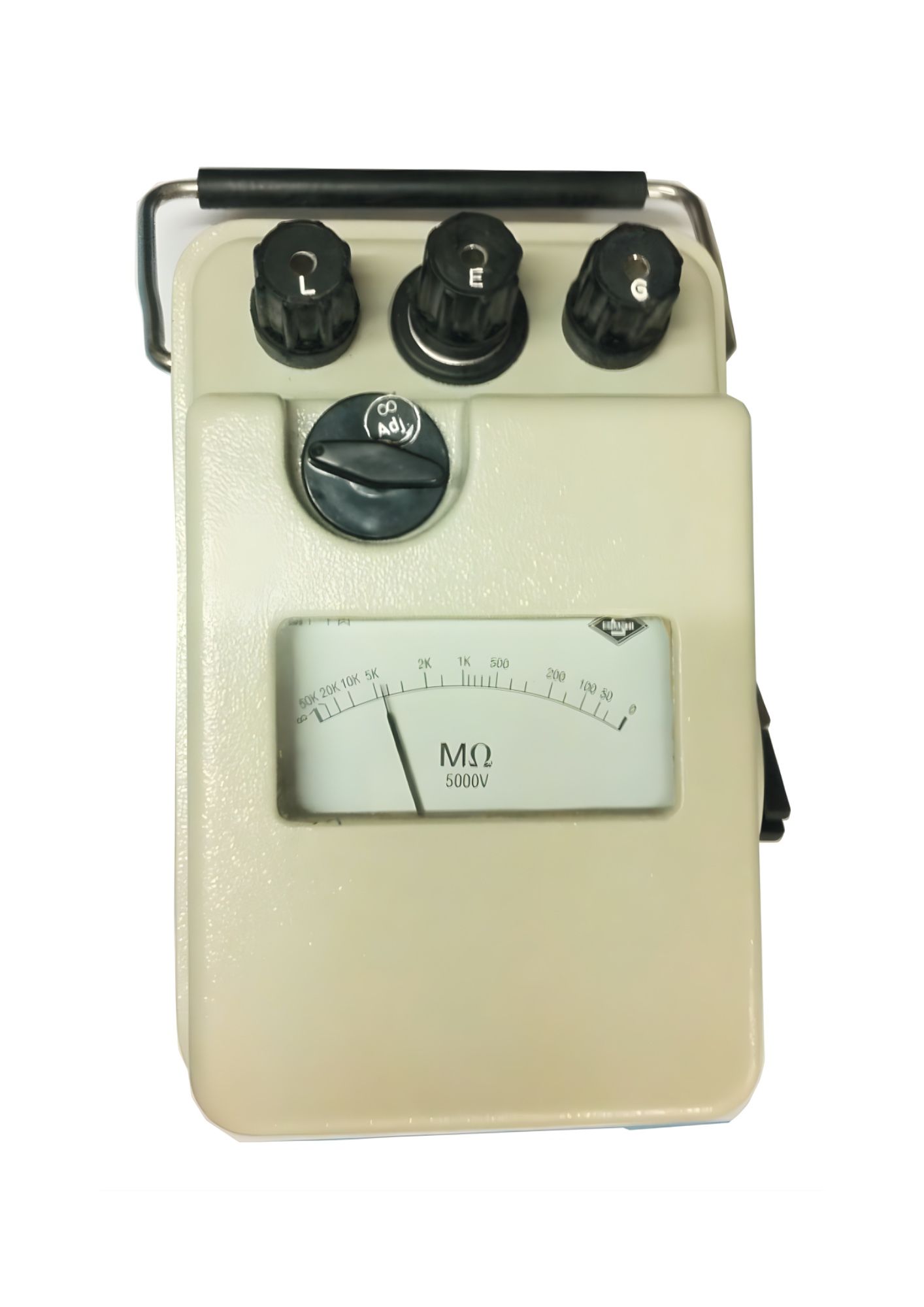

Rishabh ITHV 2550 High-Voltage Insulation Tester

Name: Rishabh ITHV 2550 High-Voltage Insulation Tester
Brand: Rishabh
SKU: ITHV-2550
Availability: OutOfStock

In stock

SKU

ITHV 2550

Special Price ₹5,963.75 Regular Price ₹9,175.00

(18% GST Extra)

Qty

Add to Wish List

Rugged design to withstand industrial environment
Metal body with collapsible steel handle
In-built hand-driven brushless AC generator and static rectifier to supply stabilized DC voltage
Guard terminal to eliminate surface leakage current
Cross coil movement, sintered anti-friction bearings and Delrin-moulded gears ensure trouble-free operation
66mm logarithmic scale conforms to IS 2992-1987
Option 1: Single Voltage, single IR measurement range
Option 2: Dual Voltage, dual IR measurement range

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Parameter	Specification
TEST STANDARD	IS 2992-1987
ACCURACY	±5% in the first effective range ±10% in the second effective range
TERMINAL VOLTAGE SETTING AT RATED RESISTANCE	+10% of rated voltage
VOLTAGE STABILITY AT RATED RESISTANCE	Speed 160 to 240 R.P.M. -2% to +4% of terminal voltage
RIPPLE CONTENT AT 160 R.P.M.	< 10% of the rated V_pp
HIGH VOLTAGE FLASH TEST	Withstand 2 kV AC (rms) between the electrical circuit & the handle for 1 minute
INSULATION RESISTANCE	> 50 MΩ at 500V between electrical circuit and the containing case
DIMENSIONS	178 × 122 × 126 mm (approx.)
STANDARD ACCESSORIES	1. A pair of testing leads (1 meter length) 2. Instruction booklet 3. Test certificate
OPTIONAL ACCESSORIES	1. Rexin carrying case with strap 2. A set of 3 meters long test leads
