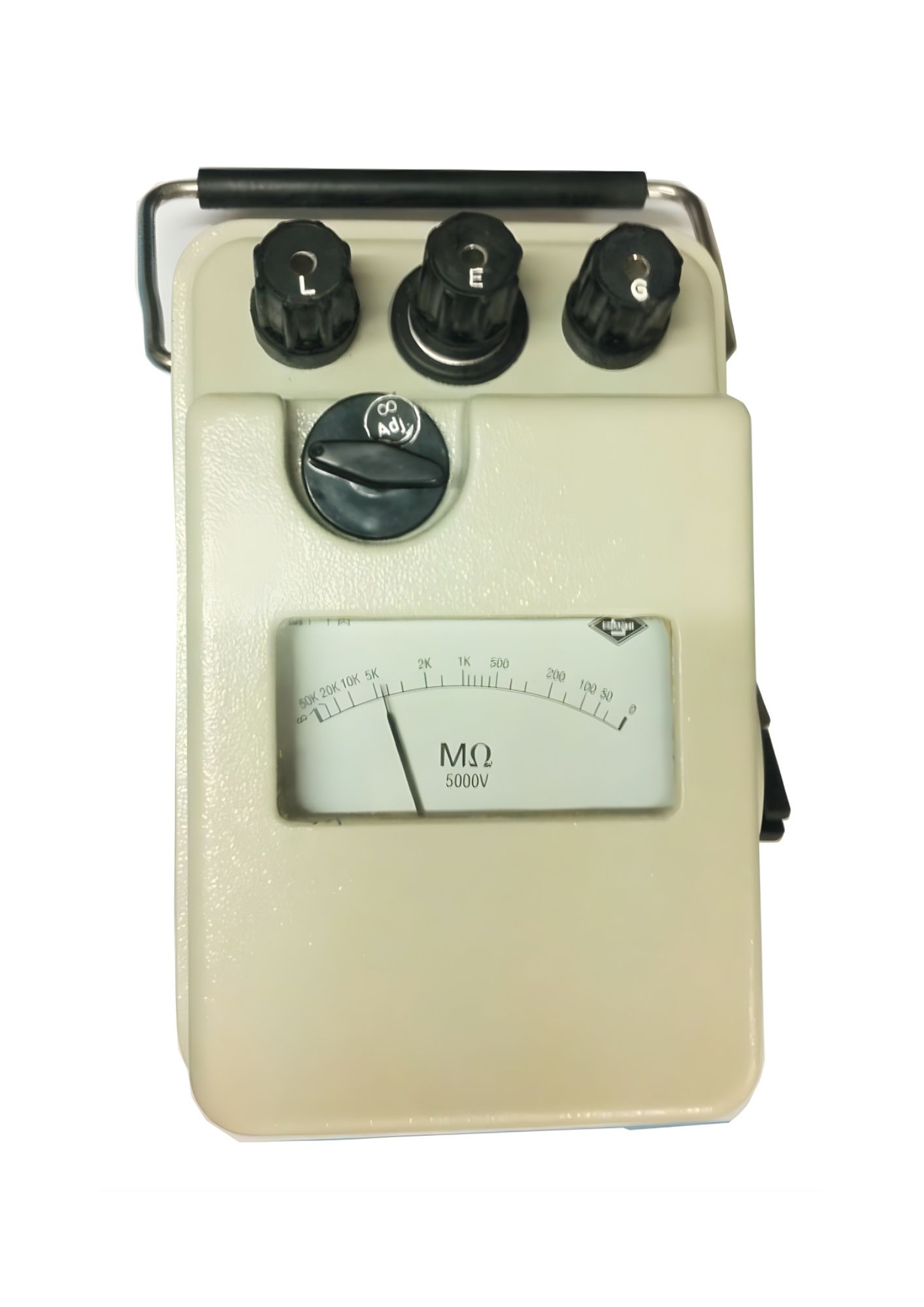

Rishabh ITHV 50200, High-Voltage Insulation Tester
In stock
SKU
ITHV 50200
Special Price
₹8,401.25
Regular Price
₹12,925.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Parameter | Specification |
|---|---|
| Test Standard | IS 2992-1987 |
| Accuracy |
±5% in the first effective range ±10% in the second effective range |
| Terminal Voltage Setting at Rated Resistance | +10% of rated voltage |
| Voltage Stability at Rated Resistance | -2% to +4% of terminal voltage |
| Speed | 160 to 240 R.P.M. |
| Ripple Content at 160 R.P.M. | < 10% of the rated Vpp |
| High Voltage Flash Test | Withstand 2 kV AC (rms) between the electrical circuit & handle for 1 min |
| Insulation Resistance | > 50 MΩ at 500V between electrical circuit and the containing case |
| Dimensions | 178 × 122 × 126 mm (approx) |
| Standard Accessories |
1. A pair of testing leads (1 meter length) 2. Instruction booklet 3. Test certificate |
| Optional Accessories |
1. Rexine carrying case with strap 2. A set of 3-meter-long test leads |
