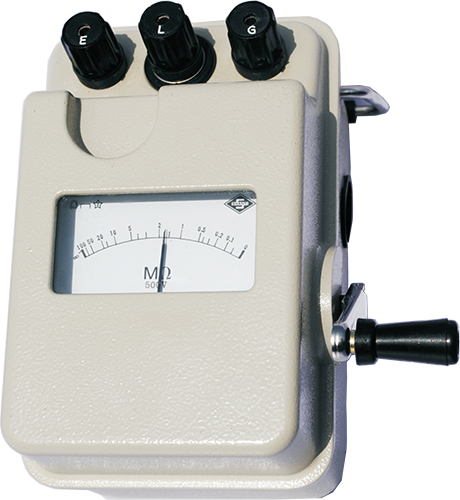

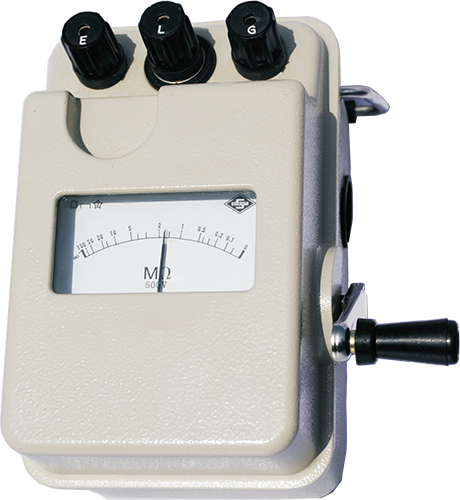

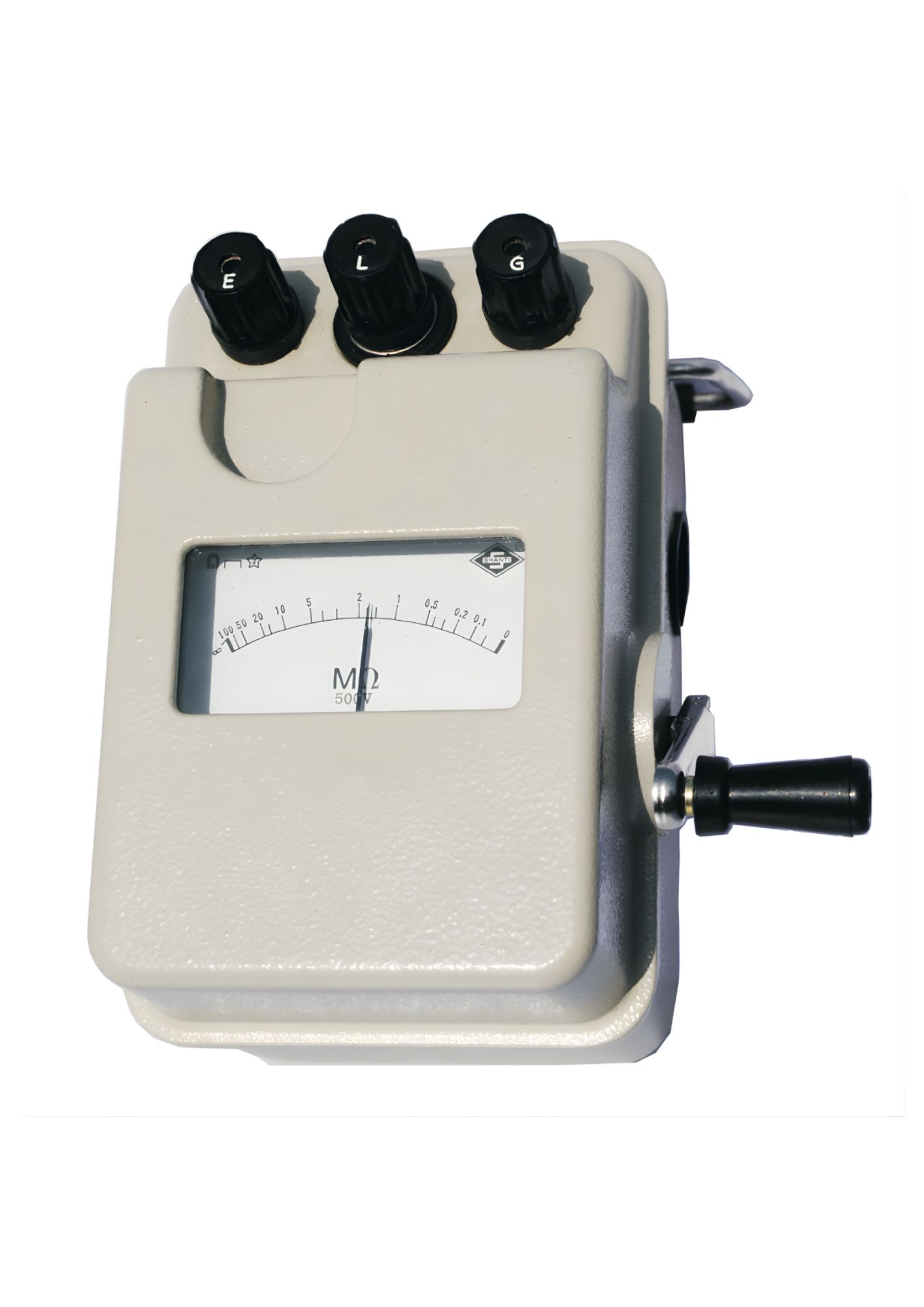

Rishabh ITI 100200 Low-Voltage Insulation Tester
In stock
SKU
ITI 100200
Special Price
₹4,205.50
Regular Price
₹6,470.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Parameter | Specification |
|---|---|
| TEST STANDARD | IS 2992-1987 |
| ACCURACY |
+/-5% IN THE FIRST EFFECTIVE RANGE +/-10% IN THE SECOND EFFECTIVE RANGE AS PER CLAUSE 9.1 OF IS 2992-1987 |
| TERMINAL VOLTAGE SETTING AT RATED RESISTANCE | +10% OF RATED VOLTAGE |
| VOLTAGE STABILITY AT RATED RESISTANCE | SPEED 160 TO 240 R.P.M. -2% to +4% OF TERMINAL VOLTAGE |
| RIPPLE CONTENT AT 160 R.P.M. | < 10% OF THE RATED VPP |
| HIGH VOLTAGE FLASH TEST | WITHSTAND 2 KV AC (rms) BETWEEN THE ELECTRICAL CIRCUIT & THE HANDLE FOR 1 MIN |
| INSULATION RESISTANCE | > 50 MΩ AT 500V BETWEEN ELECTRICAL CIRCUIT AND THE CONTAINING CASE |
| DIMENSIONS | 178 × 122 × 126 mm (approx) |
| WEIGHT | 2 KGs (approx) |
| STANDARD ACCESSORIES |
1. A PAIR OF TESTING LEADS 1 METER LENGTH 2. INSTRUCTION BOOKLET 3. TEST CERTIFICATE |
| OPTIONAL ACCESSORIES |
1. REXIN CARRYING CASE WITH STRAP 2. A SET OF 3 METERS LONG TEST LEADS |
No specifications available for this product.
