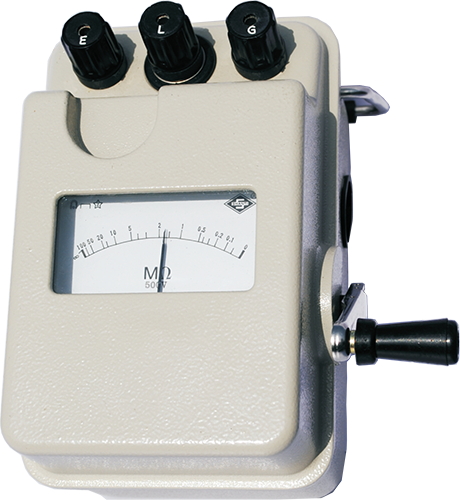

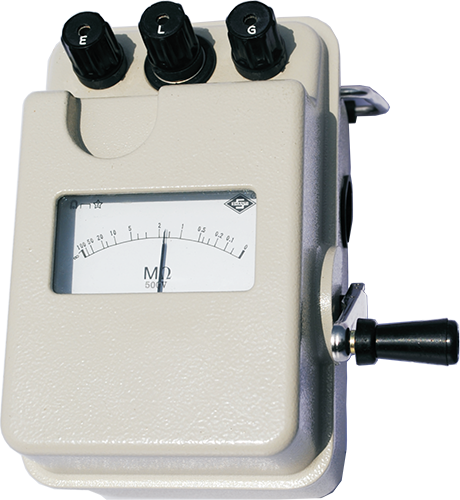

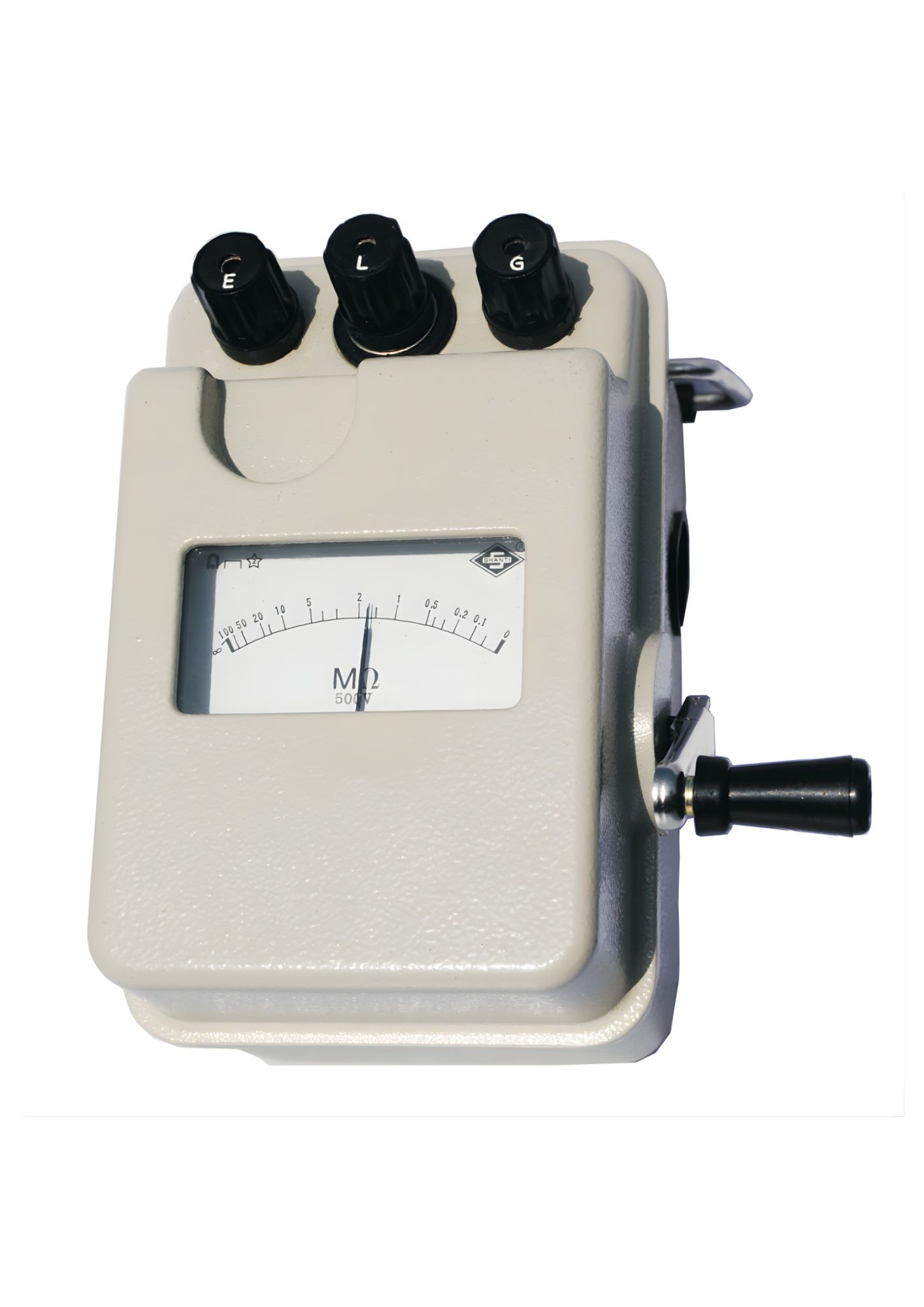

Rishabh ITI 50100 Low-Voltage Insulation Tester

Name: Rishabh ITI 50100 Low-Voltage Insulation Tester
Brand: Rishabh
SKU: ITI-50100
Availability: InStock

In stock

SKU

ITI 50100

Special Price ₹3,955.25 Regular Price ₹6,085.00

(18% GST Extra)

Qty

Add to Wish List

Rugged design to withstand industrial environment
Metal body with collapsible Steel handle
In-built hand-driven brushless AC generator and static rectifier to supply Stabilized DC voltage
Guard terminal to eliminate surface leakage current
Cross coil movement, sintered anti-friction bearings and delrin-moulded gears ensures trouble free operation
66mm logarithmic scale confirms to IS 2992-1987
Optional : Voltage measurement up to 500VAC/DC

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Parameter	Specification
Test Standard	IS 2992-1987
Accuracy	±5% in the first effective range ±10% in the second effective range As per Clause 9.1 of IS 2992-1987
Terminal Voltage Setting at Rated Resistance	+10% of rated voltage
Voltage Stability at Rated Resistance	At speed 160 to 240 RPM → -2% to +4% of terminal voltage
Ripple Content at 160 RPM	< 10% of the rated Vpp
High Voltage Flash Test	Withstand 2 kV AC (rms) between electrical circuit & handle for 1 minute
Insulation Resistance	0–500 MΩ at 500V between electrical circuit and the containing case
Dimensions	178 × 122 × 126 mm (approx.)
Weight	2 kg (approx.)
Standard Accessories	1. A pair of testing leads (1 meter length) 2. Instruction booklet 3. Test certificate
Optional Accessories	1. Rexine carrying case with strap 2. A set of 3 meters long test leads
