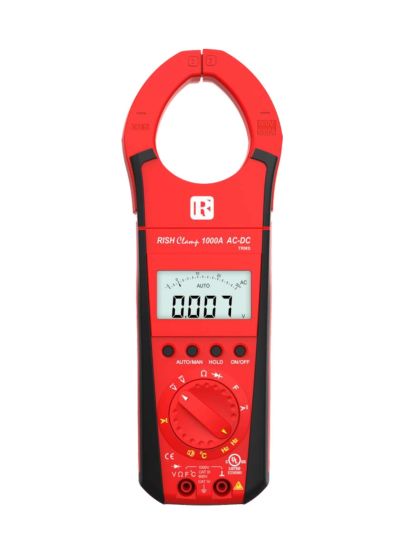

Rishabh Rish 1000A AC/DC Backlit Clamp Meter
In stock
SKU
RISH 1000A AC/DC Backlit
Special Price
₹8,105.50
Regular Price
₹12,470.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Measuring Function | Measuring Range | Resolution | Intrinsic Error of Digital Display at Reference Condition | Overload Capacity |
|---|---|---|---|---|
| V DC | 999.9 V | 0.1 V | ±(0.5% of rdg + 5 dgt) | 1000 V DC/AC eff/rms Sine wave (Continuously) |
| V ~ | 999.9 V | 0.1 V | ±(0.75% of rdg + 5 dgt) | Continuously |
| V AC/DC | 999.9 V | 0.1 V | ±(1.25% of rdg + 10 dgt) | Continuously |
| LPF V~ (50–60 Hz) | 999.9 V | 0.1 V | ±(0.75% of rdg + 5 dgt) 61–400 Hz: ±(5.0% of rdg + 5 dgt) |
Continuously |
| Power Clamp 1000A DC | 999.9 A | 0.1 A | ±(1.5% of rdg + 5 dgt) | 1100 A AC/DC for Power Clamp 1000A 440 A AC/DC for Power Clamp 400A Continuously |
| Power Clamp 400A DC | 99.99 A / 400 A | 0.01 A / 0.1 A | ±(1.5% of rdg + 0.2 A) / ±(1.5% of rdg + 5 dgt) | Continuously |
| Power Clamp 1000A AC | 999.9 A | 0.1 A | ±(3% of rdg + 10 dgt) | Continuously |
| Active Power | 9.999 kW / 9999 kW | 1 W – 1 kW | ±(2% of rdg + 5 dgt) | 1000 V DC/AC, 1100 A AC/DC, 440 A AC/DC Continuously |
| Reactive Power | 9.999 – 9999 kVAr | 1 VAr – 1 kVAr | – | – |
| Apparent Power | 9.999 – 9999 kVA | 1 VA – 1 kVA | – | – |
| Horse Power | 9.999 – 9999 hp | 0.001 – 1 hp | – | – |
| kWh | 9.999 – 9999 kWh | 0.001 – 1 kWh | ±(3% of rdg + 5 dgt) | Continuously |
| Ahr | 999.9 Ahr | 0.1 Ahr | ±(3% of rdg + 5 dgt) | 1000 V DC/AC, 1100 A AC/DC, 440 A AC/DC |
| Phase Angle | 0.0° – 360.0° | 0.1° | ±3° | – |
| Power Factor | -1 … 0 … 1 | 0.001 | – | – |
| Resistance | 9999 Ω | 1 Ω | ±(0.5% of rdg + 5 dgt) | 1000 V DC/AC eff/rms Sine wave (10 Secs) |
| Continuity | Below 40 Ω | 1 Ω | ±(0.5% of rdg + 5 dgt) | – |
| Diode | 0 – 2.2 V | 0.001 V | ±(0.5% of rdg + 5 dgt) | – |
