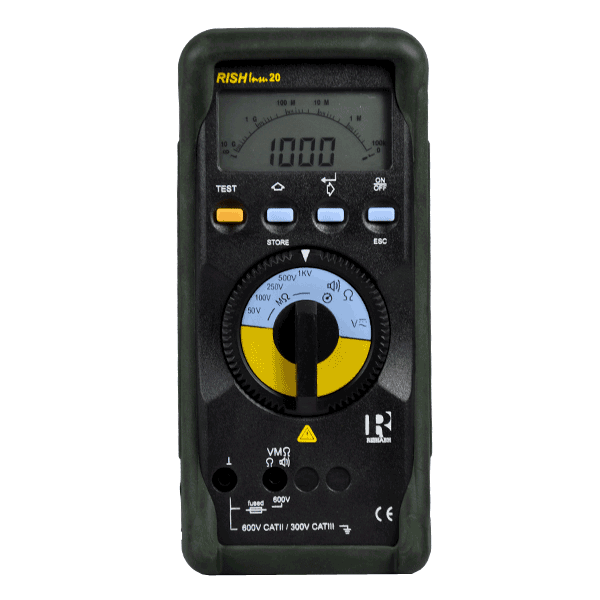

Rishabh Rish Insu 20, Digital Insulation & Continuity Tester
Rishabh Rish Insu 20, Digital Insulation & Continuity Tester

Rishabh Rish Insu 20, Digital Insulation & Continuity Tester

Out of stock
SKU
RISH Insu 20
Special Price ₹5,112.25 Regular Price ₹7,865.00
(18% GST Extra)
  • Analog + Digital Display (Log scale for Insulation Measurement)
  • User Selectable Backlit Display
  • Connector jack for External Mains Adapter (Optional)
  • Test Voltages 50V / 100V / 250V / 500V / 1000V
  • Insulation Resistance Measurement
  • Low Resistances Measurement
  • Hands-free continuity testing
  • Voltmeter, Stop Watch, Lead resistance null facility
  • Automatic discharge for capacitive circuits after test measurement
  • Live circuit detection, Blown fuse indication
  • Pre-selectable measurement time for Insulation Resistance Measurement
  • Pre-selectable limit checks (Go/No-Go option) for MΩ / GΩ
  • Storage of MIN / MAX values
  • Storage Memory for last 10 readings
  • Low battery indication, Auto-power off function
  • Protective holster for rough duty

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Meas. Function Range Resolution Accuracy Overload / Duration
Insulation Resistance (Test Voltage: 50V, 100V) 0.01 MΩ to 0.99 MΩ 0.01 MΩ +3% + 2D 1200 Vrms, 10 sec
Insulation Resistance (Test Voltage: 50V, 100V) >1.0 MΩ to 9.99 MΩ 0.1 MΩ +5% + 2D 1200 Vrms, 10 sec
Insulation Resistance (Test Voltage: 250V, 500V, 1000V) ≥100 MΩ to 2 GΩ 1 MΩ +30% service error 1200 Vrms, 10 sec
Low Ohms Measurement O to 9.999 Ω, >10 2 to 99.92 Ω 0.012 Ω at 210 mA, 0.1 Ω at 21 mA +3% + 2D, ±5% + 2D 1200 Vrms, 10 sec
Continuity O to 9.999 Ω, >1052 to 99.90 0.012 Ω at 210 mA +3% + 2D 1200 Vrms, 10 sec
Voltage Measurement (VAC/DC) 25V to 450V 1V ±2% + 3D 1200 Vrms, 10 sec
Voltage Measurement (VAC/DC) 450V to 600V 1V +3% 1200 Vrms, 10 sec
