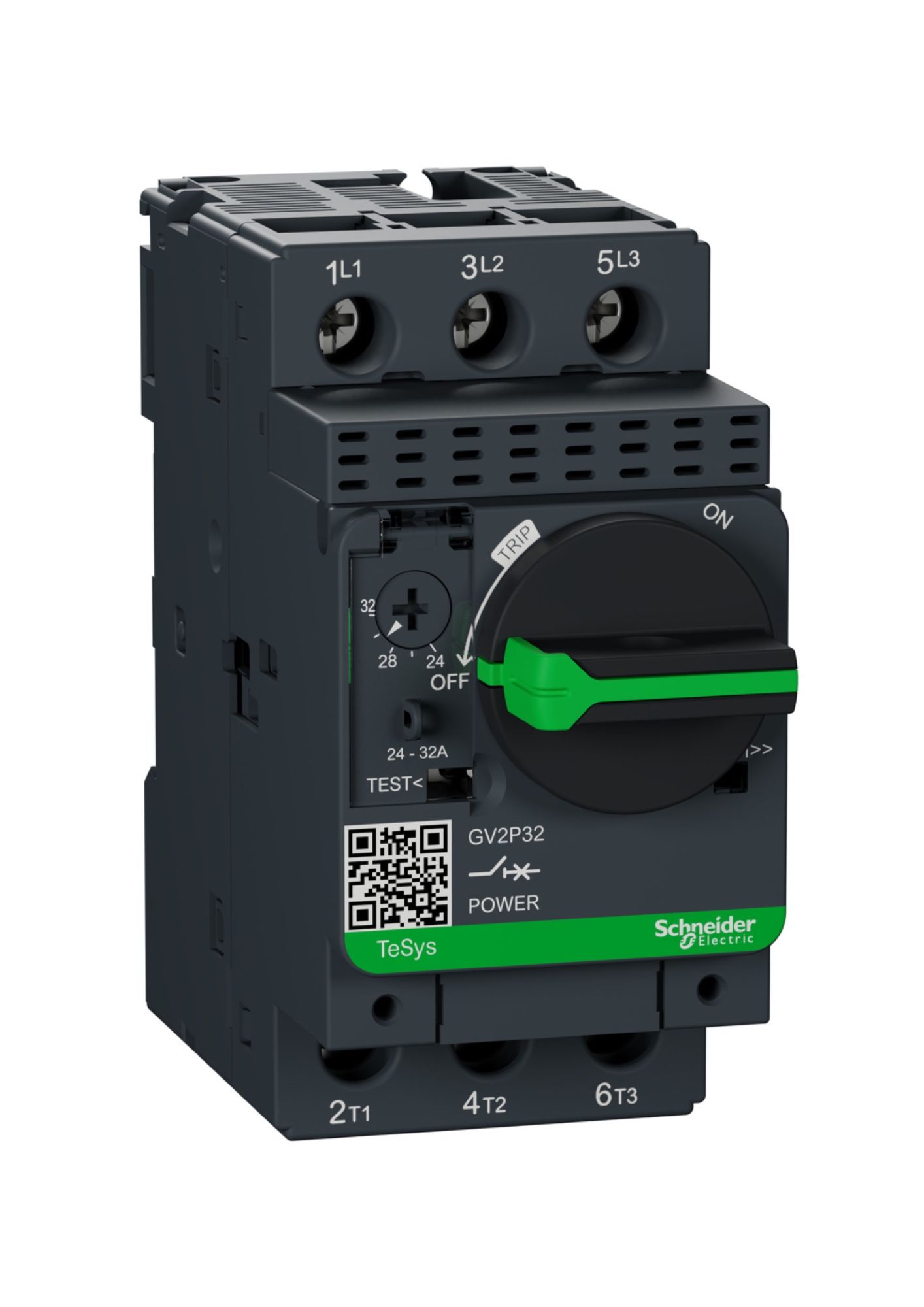

Scheider GV2P32, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 24-32 A, thermal magnetic, screw clamp terminals
In stock
SKU
GV2P32
Special Price
₹11,280.00
Regular Price
₹28,200.00
Scheider GV2P32, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 24-32 A, thermal magnetic, screw clamp terminals is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| Product or component type | Motor circuit breaker |
| Device short name | GV2P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category |
Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor power kW |
15 kW at 400/415 V AC 50/60 Hz 18.5 kW at 500 V AC 50/60 Hz 22 kW at 690 V AC 50/60 Hz |
| Breaking capacity |
100 kA Icu at 230/240 V AC 50 kA Icu at 400/415 V AC 20 kA Icu at 440 V AC 10 kA Icu at 500 V AC 4 kA Icu at 690 V AC |
| Rated service short-circuit breaking capacity [Ics] |
100 % at 230/240 V AC 50 % at 400/415 V AC 75 % at 440 V AC 75 % at 500 V AC 100 % at 690 V AC |
| Control type | Rotary handle |
| [In] rated current | 32 A |
| Thermal protection adjustment range | 24…32 A |
| Magnetic tripping current | 537.6 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Yes |
| Suitability for isolation | Yes |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100,000 cycles |
| Electrical durability |
100,000 cycles for AC-3 at 415 V In 100,000 cycles for AC-3e at 415 V In |
| Rated duty | Uninterrupted |
| Connections - terminals |
Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² solid Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² flexible with cable end |
| Tightening torque | 1.7 N.m |
| Fixing mode |
35 mm symmetrical DIN rail: clipped Panel: screwed (with 2 x M4 screws) |
| Mounting position | Horizontal / Vertical |

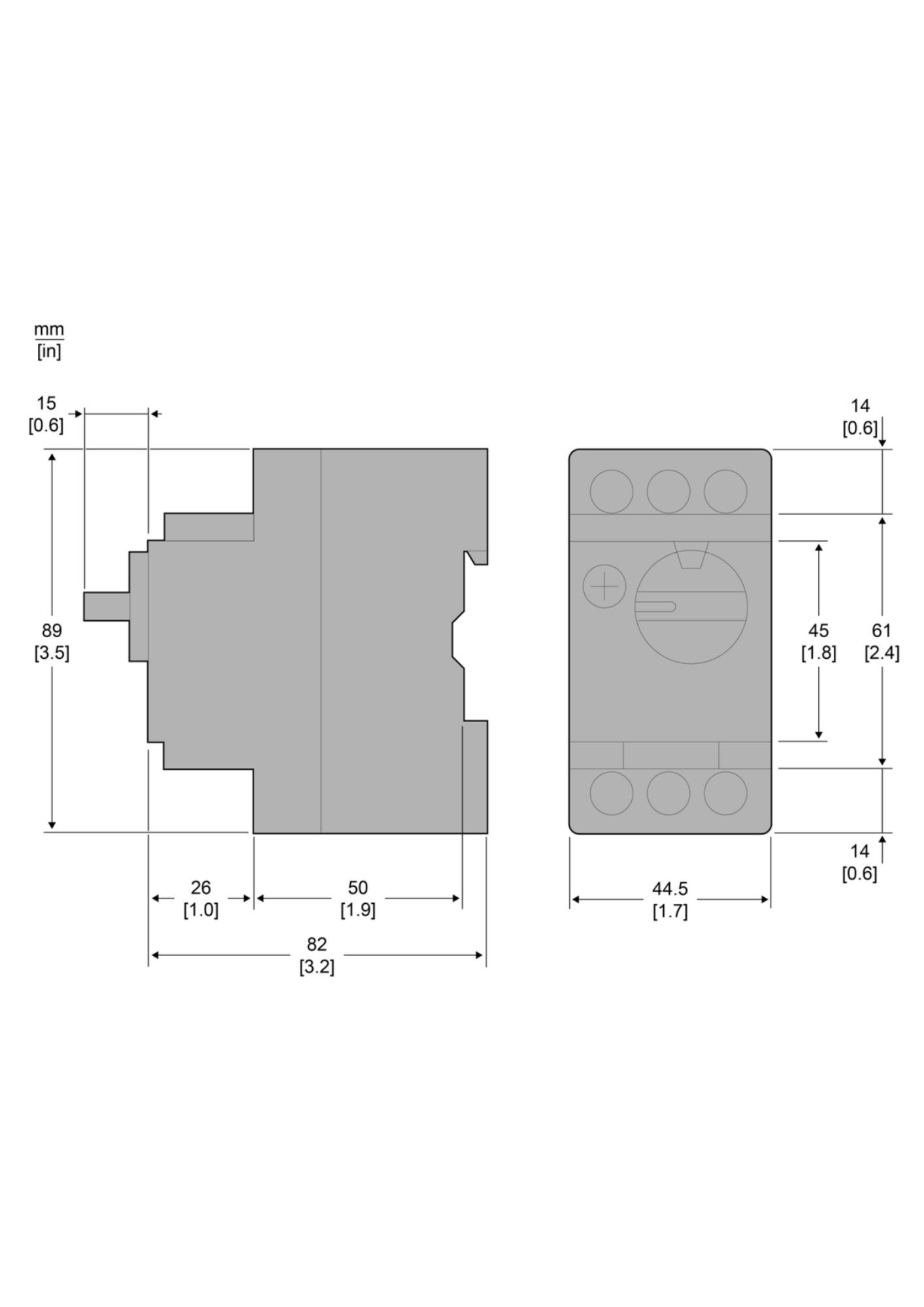

| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
