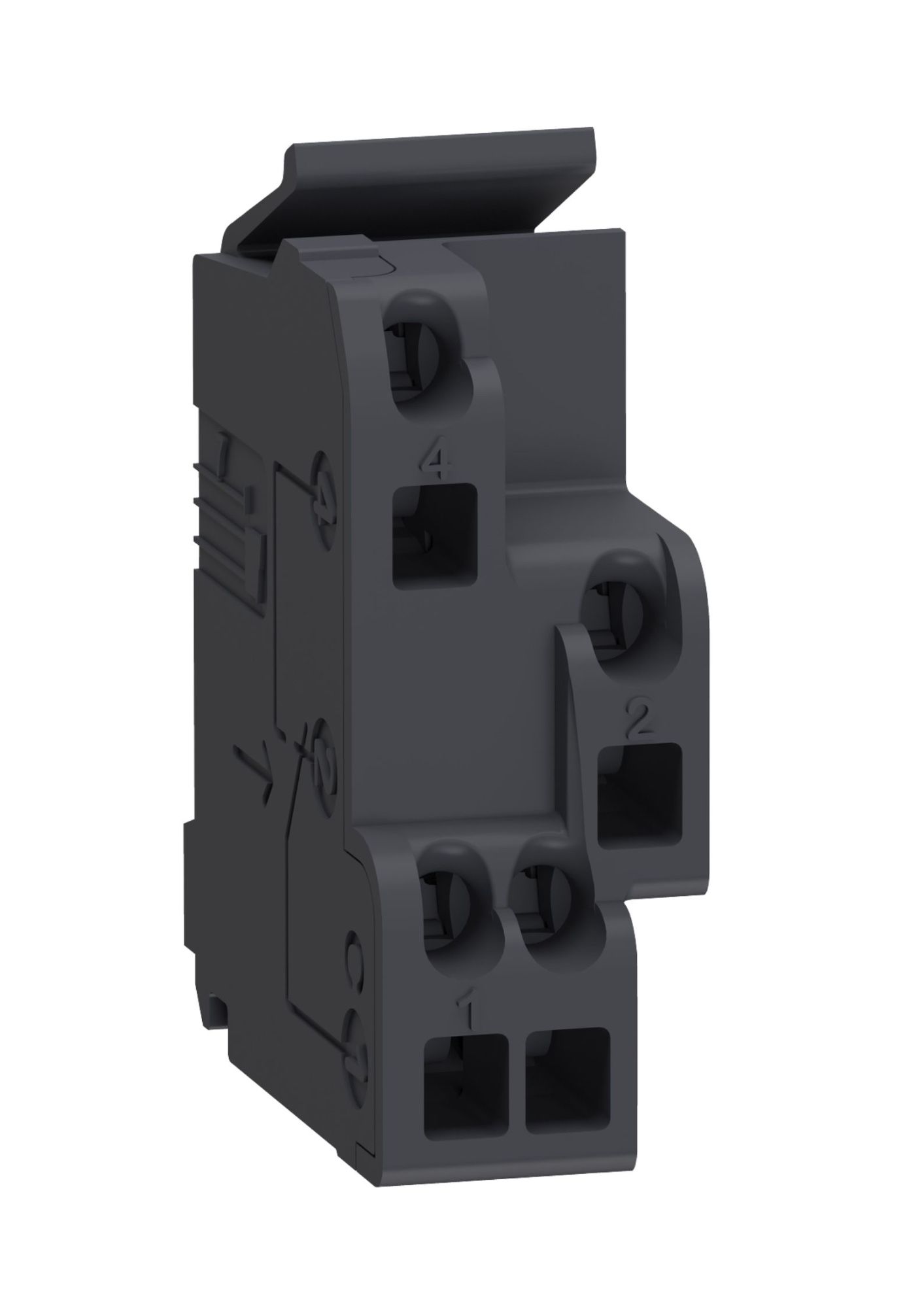

Schneider 29450, Standard Auxiliary Contact, Circuit Breaker Status OF-SD-SDE-SDV, 1 Single Contact
In stock
SKU
29450
Special Price
₹820.00
Regular Price
₹1,640.00
Schneider 29450, Standard Auxiliary Contact, Circuit Breaker Status OF-SD-SDE-SDV, 1 Single Contact is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Product or component type | Auxiliary contact |
| Device short name | OF (Open/Close Indication), SD (Trip Indication), SDE (Fault-Trip Indication), SDV (Earth Fault Trip Indication) |
| Device application | Breaker status monitoring |
| Range compatibility |
ComPact NS630b to NS1600 ComPact NS1600b to NS3200 ComPacT INS switches ComPacT INV switches ComPacT NSX circuit breakers EasyPact CVS circuit breakers PowerPact Multistandard circuit breakers ComPact NSX DC versions |
| Signal contacts composition | 1 Normally Open / Normally Closed (1 NO + 1 NC) |
| Complementary | |
| Fault type | General electrical fault |
| Local signalling |
ON/OFF indication for breaker open/close position Trip indication for relay trip status Fault-trip indication for electrical fault |
| Auxiliary contacts type | Standard auxiliary contact |
| Mounting mode | Clip-on mounting |
| Conventional free air thermal current [Ith] | 5 Amperes |
| Breaking capacity (AC utilization categories) |
AC-12 category: – 6 A at 24 V AC 50/60 Hz – 6 A at 48 V AC 50/60 Hz – 6 A at 110 V AC 50/60 Hz – 6 A at 220/240 V AC 50/60 Hz – 6 A at 380/440 V AC 50/60 Hz – 6 A at 480 V AC 50/60 Hz – 6 A at 660/690 V AC 50/60 Hz AC-15 category: – 6 A at 24 V AC 50/60 Hz – 6 A at 48 V AC 50/60 Hz – 5 A at 110 V AC 50/60 Hz – 4 A at 220/240 V AC 50/60 Hz – 2 A at 380/440 V AC 50/60 Hz – 1.5 A at 480 V AC 50/60 Hz – 0.1 A at 660/690 V AC 50/60 Hz |
| Breaking capacity (DC utilization categories) |
DC-12 category: – 6 A at 24 V DC – 2.5 A at 48 V DC – 0.6 A at 110 V DC – 0.3 A at 250 V DC DC-14 category: – 1 A at 24 V DC – 0.2 A at 48 V DC – 0.05 A at 110 V DC – 0.03 A at 250 V DC |
| Minimum load | 100 milliamperes at 24 V DC |
| Auxiliary connection terminal | Spring terminal, 0.5 mm² to 1.5 mm² (AWG 20 to AWG 16) |
| Accessory / separate part category |
Spare part for ComPact NS630b to NS1600 Spare part for ComPact NS1600b to NS3200 |
