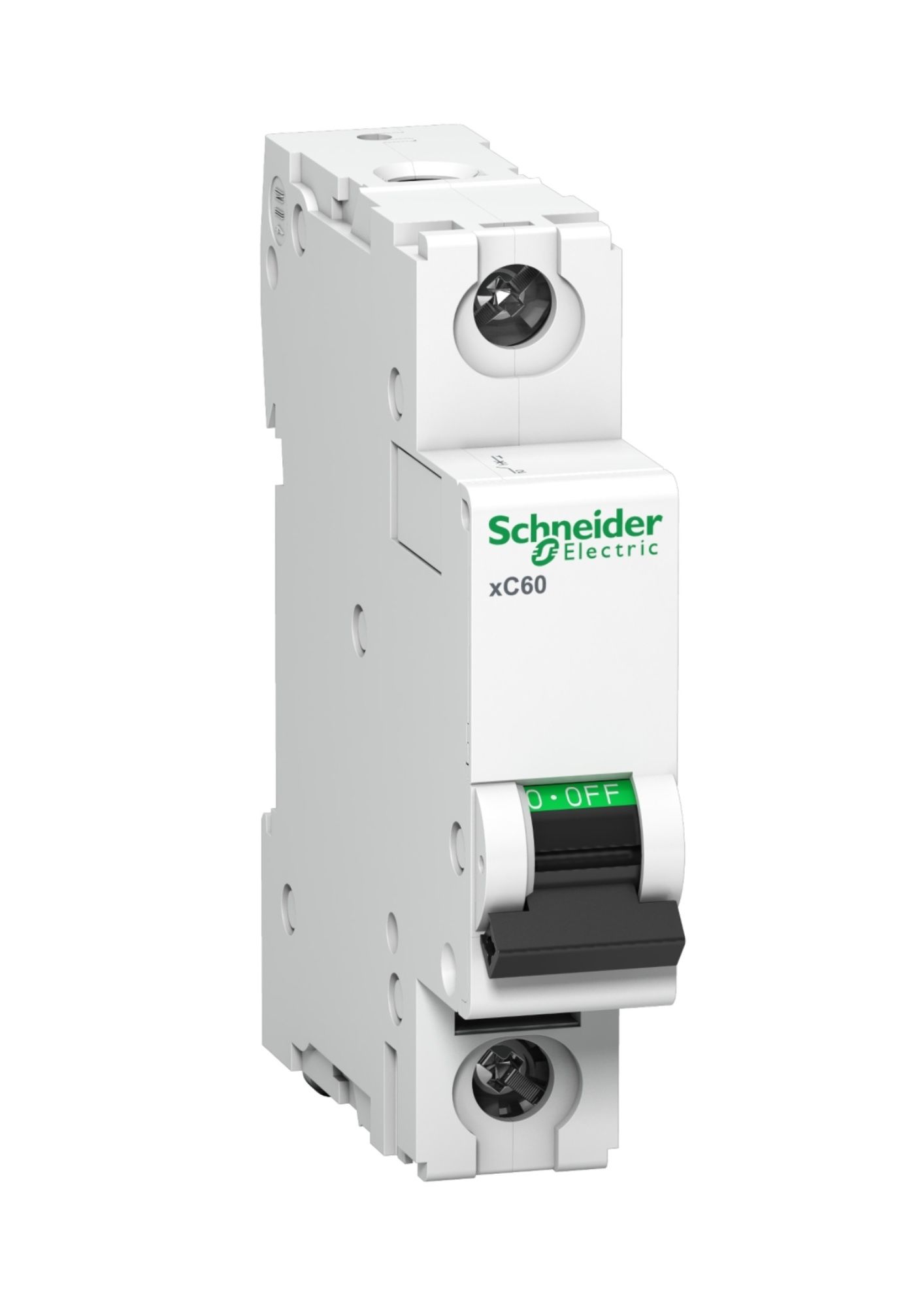

Schneider A9N1P02CGN, Miniature circuit breaker (MCB), 1 Pole, 2Amp, C Curve, 10kA
Schneider A9N1P02CGN, Miniature circuit breaker (MCB), 1 Pole, 2Amp, C Curve, 10kA

Schneider A9N1P02CGN, Miniature circuit breaker (MCB), 1 Pole, 2Amp, C Curve, 10kA

In stock
SKU
A9N1P02CGN
Special Price ₹225.06 Regular Price ₹726.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB), 1P with 1 protected pole and 2A rated current with D tripping curve.
  • Rated short circuit breaking capacity up to 10,000A at 220–240VAC, conforming to IS/IEC 60898-1 standard.
  • Protects against short circuit and overload; green strip ensures physical opening of contacts for safe operations downstream.
  • Durability: mechanical up to 20,000 cycles, electrical up to 20,000 cycles; insulation voltage Ui 500VAC; operating frequency 50Hz/60Hz.
  • Mountable on DIN rail or Vertical Fishbone Busbar; width 2 x 9mm pitches; protection IP20/IP40; operating temperature -30°C to 70°C; storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 Specification
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description1P
Number of protected poles1
[In] rated current2 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES
9 mm pitches2
Height85 mm
Width18 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (bottom)
Wire stripping length13 mm for top or bottom connection
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary
C60 accessories
Overvoltage categoryIV
